Cleaning and oiling hook assembiy – SINGER WS1112 User Manual
Page 22
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
21

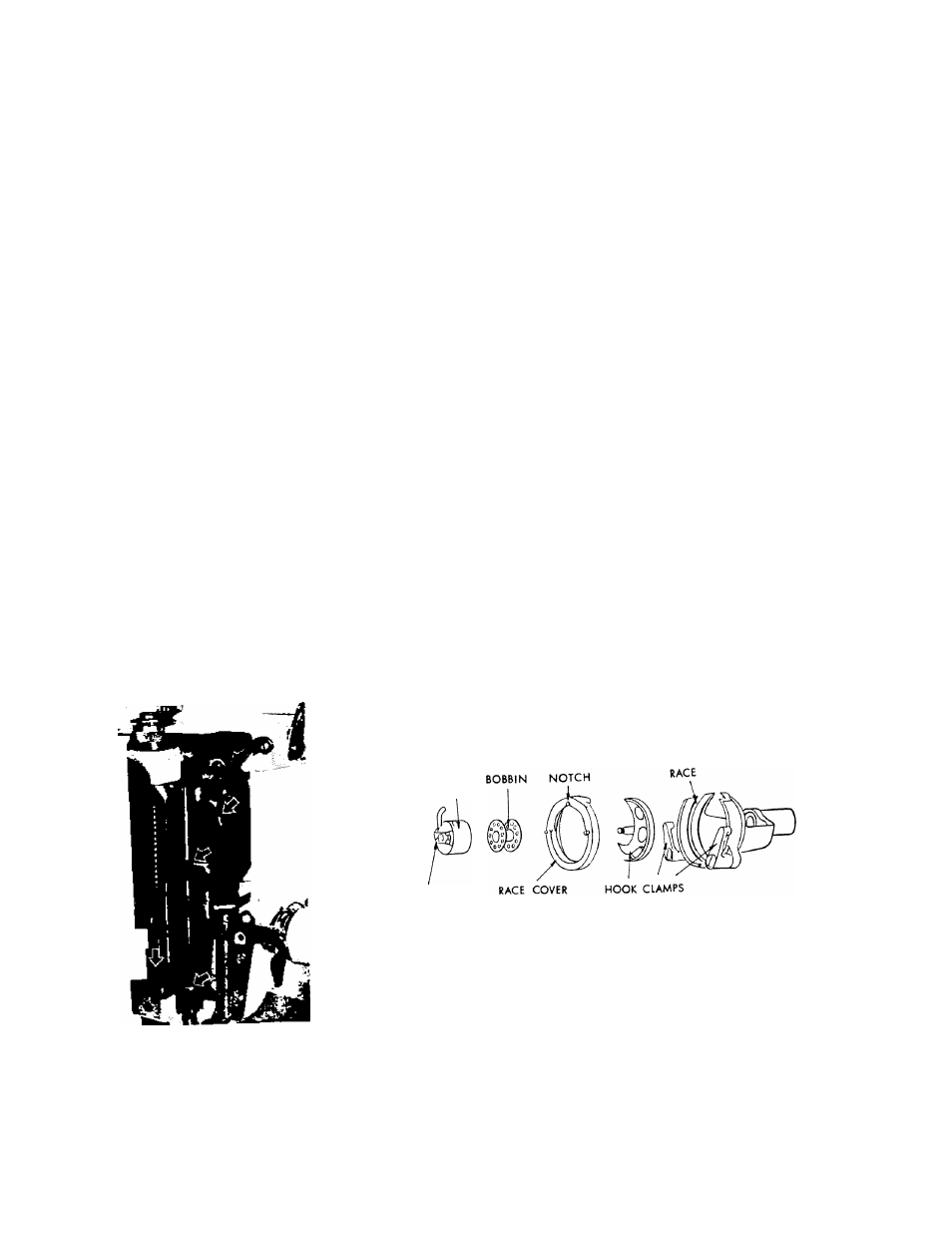

Fig. 36
CLEANING AND OILING HOOK ASSEMBIY
If machine binds, clean hook assembly as follows.
1. With take-up lever in highest position, tilt head back on
hinges and remove bobbin case.
CASE
LATCH
2. Turn clamps outward and remove race cover.
3. Remove hook.
4. Clean thread and lint from all parts, including race.
5. Run a drop of oil along rim of hook.
6. Replace hook, then race cover. Snap clamps into place.
7. Grasp threaded bobbin case by latch and replace, fitting
tongue into notch of race cover.
