ipacking and Door Handle Removal
A
CAUTION
To Avoid The Risk Of Personal
Injury, Use Caution In Unpacking,
Handling, Removing, Installing
and Cleaning AH Parts Of Product
Which May Have Sharp Edges.
A
caution
To Avoid The Risk Of Peraonal
Injury, Wear Protective Hand
Covering,
Remove al( tape and packing materia!
To remove tape residue, touch a portion
of the tape to the residue and lift it off. If
adhesive residue still remains, try clean­
ing the sticky area with a clean cloth
soaked in mild dish washing soap. Wipe
area dean.
If the wood base is still attached, have
someone help you tilt the unit onto its
k, placing a sturdy support under-
..4th. Remove the mounting bolts from
the base and discard bolts and wood
base,
IMPORTANT! Do not leave the cabinet
on Its back longer than it takes to
remove the wooden base and do not
connect the power cord until after ai! the
inside packing has been removed and
the cabinet has been leveled for proper
operation.
SMPORTANTI

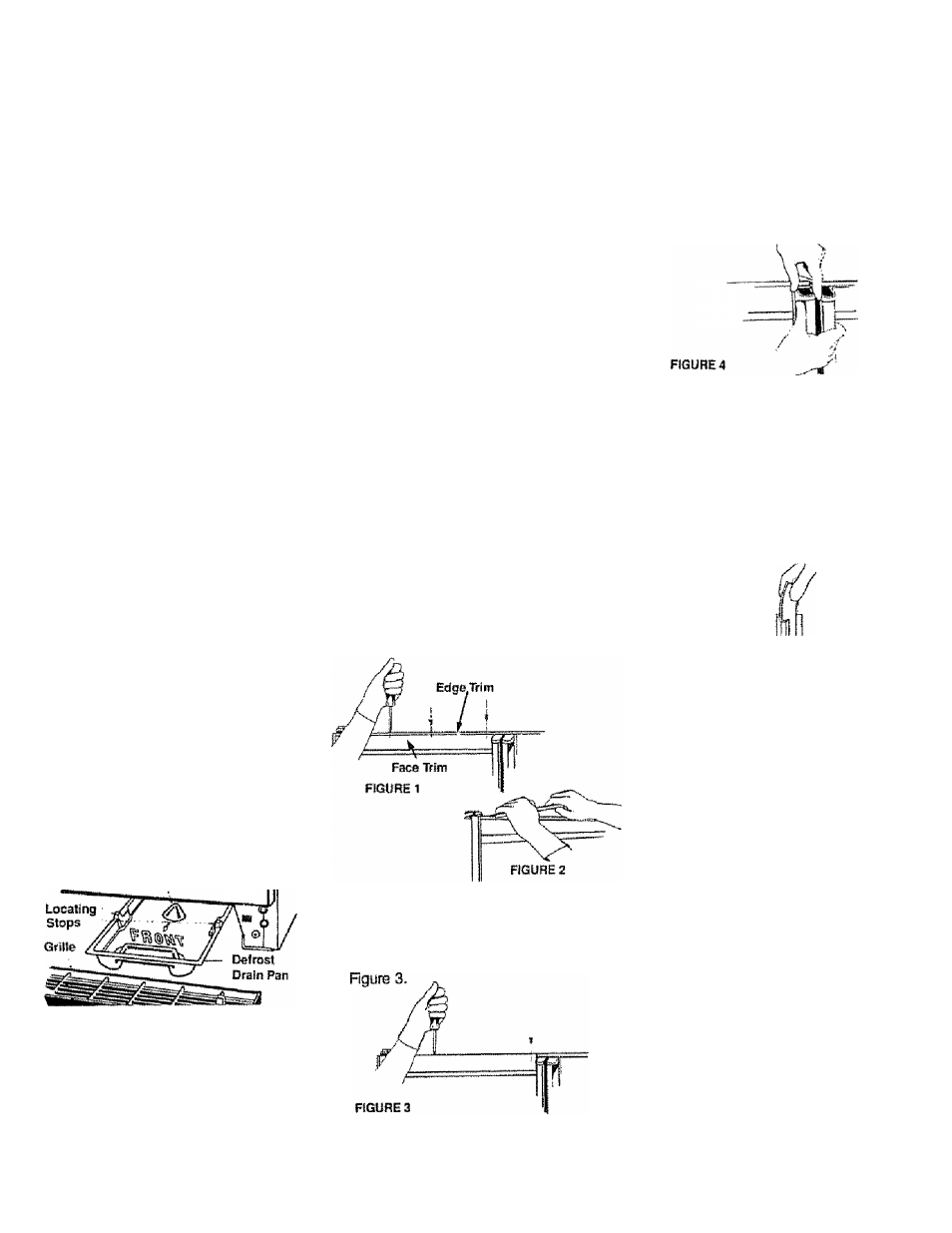

Must Install the Defrost Pan As Shown
Sound Reducing Cone
Located Bottom Right Side.
With the unit upright, puli the grille from
the bottom front and make sure the
frost drain pan is located underneath
defrost water drain tube. Two drain
"pan side supports (attached to the cabi­
net bottom) keep the pan in the proper
location, to make the automatic defrost
drain water drop on the sound reducing
cone. The drain pan locating stops pre­
vent the part from being installed
backwards.
Remove all tape and packing material
from inside the unit
SPECIAL NOTE: If Cabinet is unable to
fit through doorway safely you may
have to remove the door handles or
door assemblies Refer to the following
chart and diagrams.
To Remove Door Handies
A
warning
To Avoid The Risk Of Personal
Injury, Property Damage Or Death
unplug the refrigerator before
attempting to remove the door
handles,
1, REMOVE THE FREEZER TOP
DOOR EDGE TRIM PIECE, Remove
the screws holding the trim to the top
of the door. See Figure 1. Remove
the top door edge trim by sliding the
top door edge trim to the right and
lifting up. See Rgure 2.
2. REPLACE TWO SCREWS. Tempo­
rarily fepiace two screws to hold the
second trim strip underneath. DO
NOT REMOVE THE SECOND TRIM
STRIP FROM THE DOOR. See
3. REMOVE THE TOP HANDLE CAR
Push upward to unsnap the handle
cap from the track in the base of the
handle. Hold cap to prevent it from
dropping once free from the handle
track. See Rgure 4,
A caution
To avoid the risk of property dam­
age DO NOT kink the trim strips
4 REMOVE THE HANDLE TRIM
STRIP Remove the trim strip from
the handle track. Bend the strip gen­
tly if necessary, to clear the ceiling.
DO NOT KINK. See Figure 5.
FIGURE s
A caution
To Avoid Personal Injury securely
hold onto the door handies while
removing screws .
5, REMOVE THE HANDLE, Unscrew
the seven exposed handle mounting
screws See Rgure 6,
CT
FIGURE 6
6. Handles will easily fall away
7. Repeat process for refrigerator door.
8. The electronic keypad is electrically
connected to the refrigerator door
face trim piece, Use care in handling
so as not to pull the electrical
connection
