other Brands of Routers

It will be necessary for you to purchase a Craftsman
Professional Router Adapter Plate, #25333, from your
local Sears Retail Outlet, or through the Sears

Catalogue.
Routers with a total overall height of 13 inches or less,
and a base diameter of 7 inches or less can be
accommodated.

NOTE

Because of vibration that occurs

during routing, occasionally check the screws to
assure that they have not become loose.

FENCE ASSEMBLY

1. Slide the adjustable jointing fence (Part No. 29L-758)

into the pocket on the router table fence (Part No. 29L-
994), as shown in Figure 10. The V-guide on the
adjustable jointing fence will mate with and slide on the
V-guide in the router table fence.

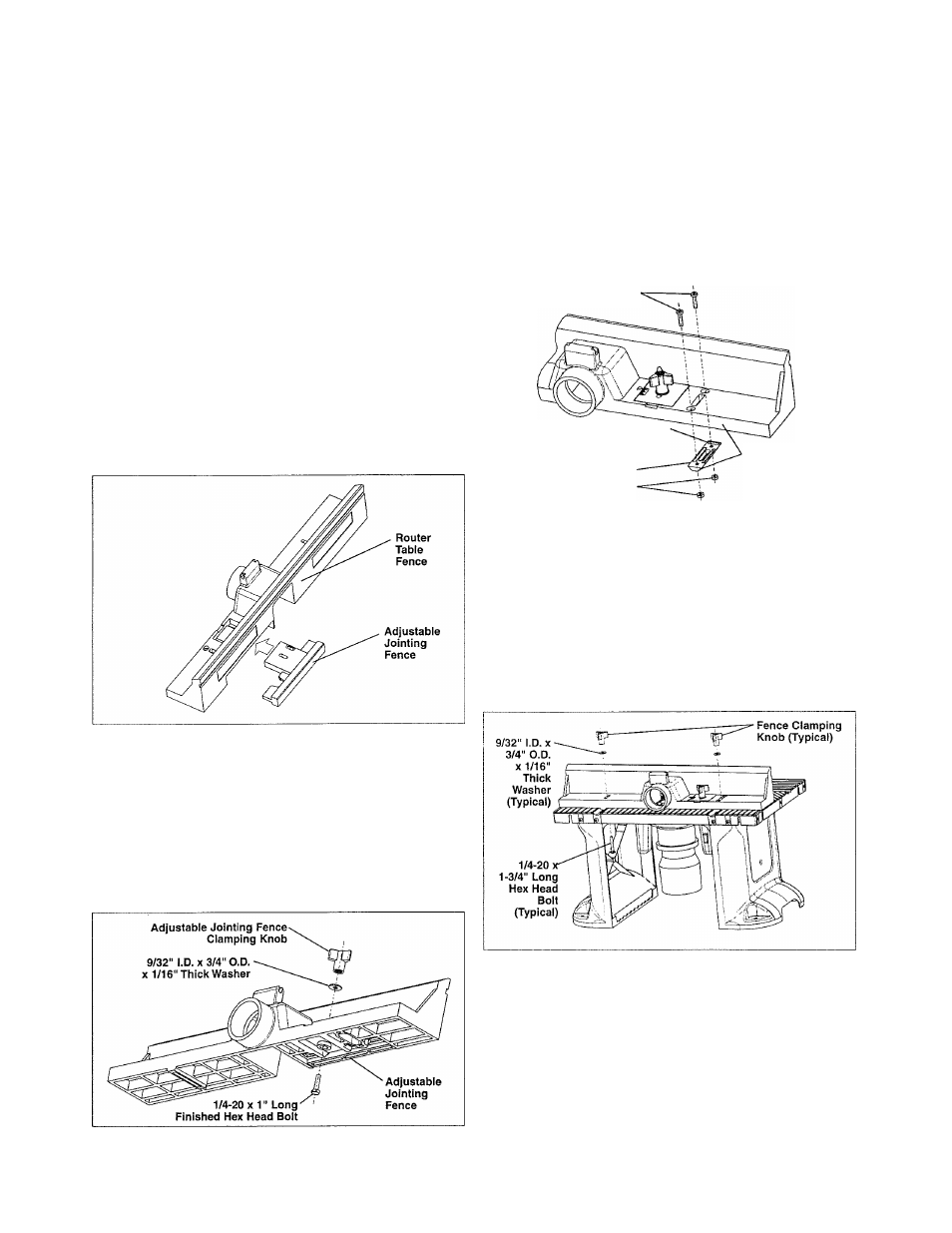

FIGURE 10

2. Insert a 1/4"-20 x 1" long hex head bolt through the
hole with a hex recess in the router table fence, and
through the slot in the adjustable jointing fence as
shown in Figure 11. While holding the head of the bolt
in the hex recess, place a 9/32" I.D. x 3/4" O.D. x 1/16"
thick washer over the bolt, and thread the adjustable

jointing fence clamping knob (Part No. 29L-659) onto
the bolt.

FIGURE 11

3. Push the adjustable jointing fence into the router
table fence as far as it will go and tighten the clamping
knob.
4. Assemble the fence guide to the bottom of the fence

using two #10-32 x 7/8" long panhead machine screws
and two #10-32 hex "KEPS" nuts, as shown in Figure
12. (The nut portion of the hex “KEPS” nut fits into the
hex recess, with the washer portion facing out of the
recess.)

FIGURE 12

#10-32

X

7/8" Long

Panhead Machine Screw

NOTE: Orientation of Front Groove

in Fence must be toward the Front

of the Router Table Fence

Fence Guide

#10-32 Hex "KEPS" Nut

(Typical)

Back Surface of
Fence Guide must
be flush with Back
Surface of Router

Table Fence

ATTACHMENT OF THE FENCE ASSEMBLY TO
THE ROUTER TABLE

A

warning

Always unplug router before

attaching or removing fence from table.

1. Position the fence on router table as shown in
Figure 13.

FIGURE 13

2. Insert a 1/4"-20 x 1-3/4" long round head square
neck bolt, from underneath the table, though the slot in
the recess, as shown in Figure 15, and through the slot
in the fence as shown in Figures 13 and 14.
3. While holding the head of the bolt in the recess,
place a 9/32" I.D. x 3/4" O.D. x 1/16" thick washer over
the bolt, and thread the fence clamping knob (Part No.
29L-659) onto the bolt to loosely secure the fence as
shown in Figures 13 and 14.

8
