ASSEMBLY
TOOLS REQUIRED
• Phillips screwdriver.
• Small or medium sized adjustable wrench
(or a set of nutdrivers).
• Electrical with 5/32" drill bit.
• Hammer
ROUTER TABLE

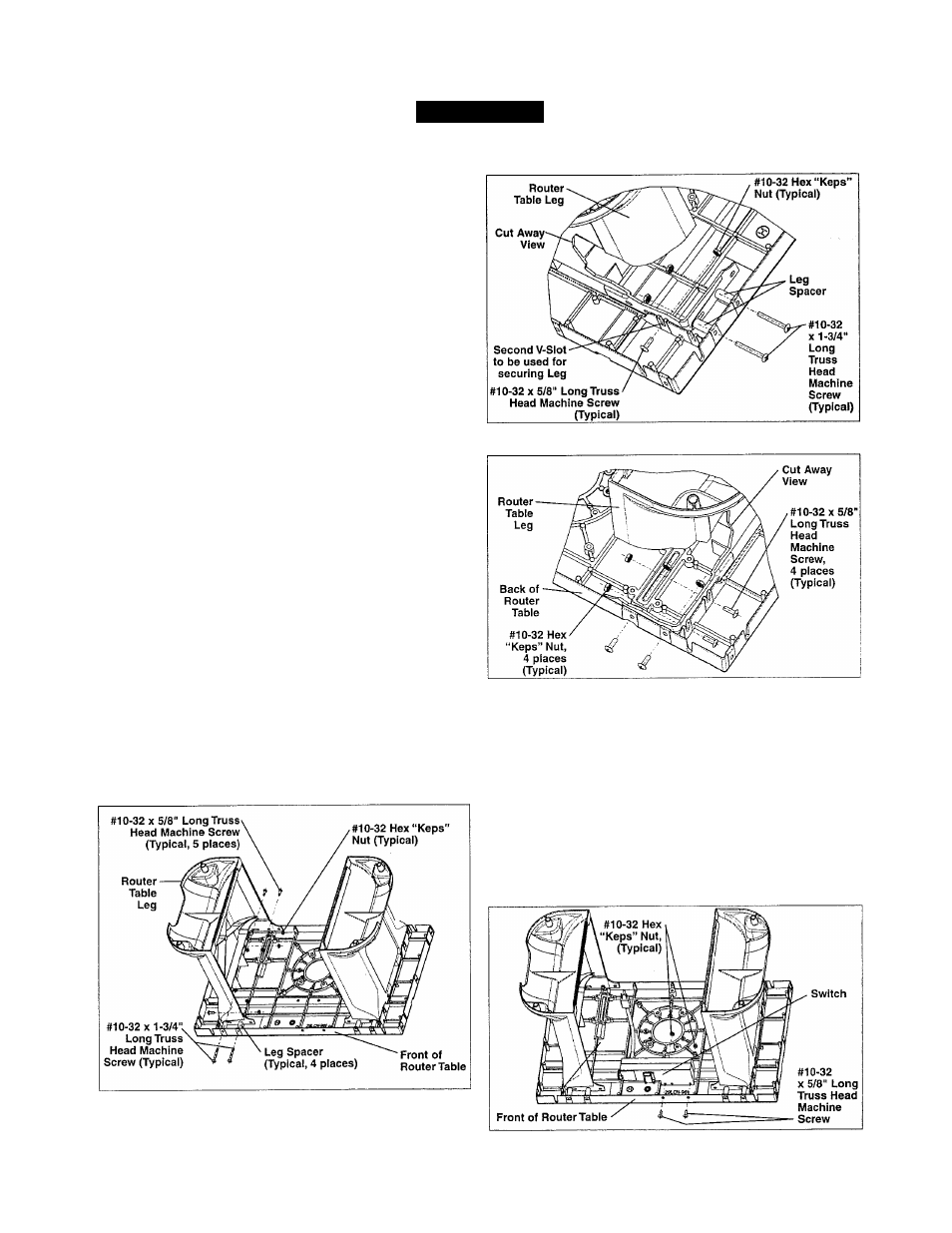

1. Position the router table top (Part No. 29LCN-981)
as shown in Figure 1, with the bottom of the table top
facing toward you.
2. Position the table legs (Part No. 29LCN-1283)
relative to the router table top as shown in Figure 1.
Note that the legs are positioned to the inside of the
table top sides.
FIGURE 2 - Front Corner of Router Table and Leg
NOTE
Legs are positioned to the back
edge of the router table, as shown in Figures 1 and 3.
3. Position the leg spacers, two per leg, as shown in
Figure 2. Spacers MUST be positioned at the two
holes in the front of the router table, as shown in
Figure 2. Note that only the second V-slot will be used
to secure the leg from the side in the front of the table,
also noted in Figure 2.
4. Secure each table leg using five (5) #10-32 x 5/8"
long truss head machine screws, two (2) #10-32 x
1-3/4" long truss head machine screws and seven (7)
#10-32 hex “KEPS” nuts. See Figure 3 for a detail of
how the leg is secured to the back area of the table.
5. Repeat steps 3 and 4 for the other leg.
6. SECURELY TIGHTEN all fasteners at this time.
FIGURE 1
FIGURE 3 - Back Corner of Router Table and Leg
7. Position the switch box (Part No. 29LCN-1019)
against the front of the router table as shown in
Figures 4 and 5. Secure the switch box to the router
table using two (2) #10-32 x 5/8" long truss head
machine screws and two (2) #10-32 hex “KEPS” nuts.
NOTE
There are two hex shaped recesses
in the switch box assembly case, into which the hex
“KEPS” nuts fit. They should be inserted into the recess
with the washer side of the nut facing outward.
FIGURE 4
