REPAIR PARTS
4 H.P. CRAFTSMAN TILLER - MODEL NUMBER 917.299642

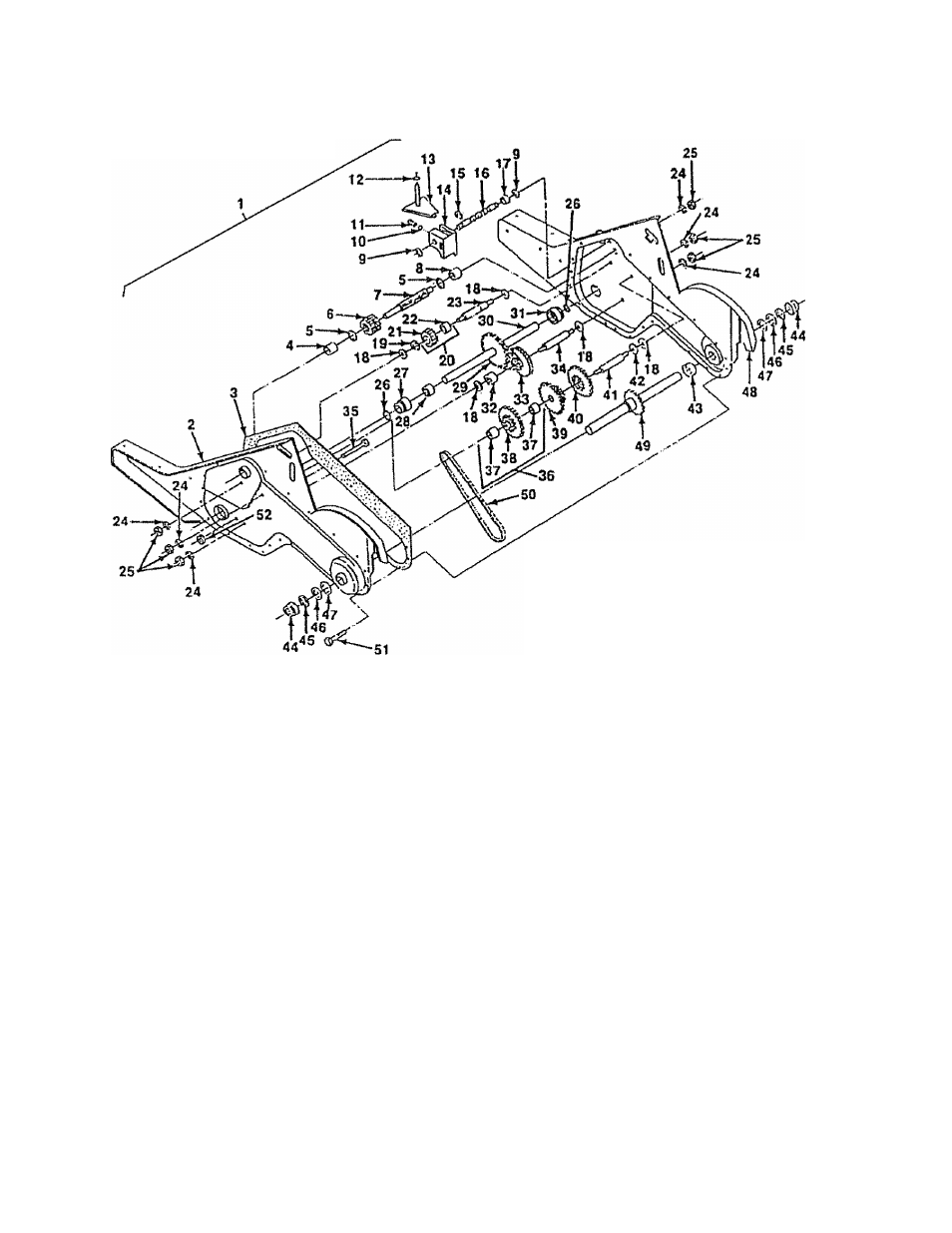

TRANSMISSION
KEY PART
NO, NO. DESCRIPTION
1 121146X Transmission Assembly (Inc key 2-52)
2 121147X Gearcase, L.H. w/Bearing (Inc key 4)
3 10621IX Gasket, Gearcase
4 5020J Bearing, Needle
5 1370H Washer, Thrust 5/8 x 1 10 x 1/32
6 102113X Pinion, Input
7 10211OX Shaft. Input
8 4895H Bearing, Needle
9 102136X Washer, Seal
10 7392M Bali. Steel
11 100371K Spring, Shift, Fork
12 106160X O-Ring
13 102107X Arm,, Shift
14 8353J Fork. Shift
15 12000039 Ring, Klip
16 102109X Shaft, Shift
17 104159X Spacer, Split
18 4358J Washer
19 12000040 Ring, Klip
20 102114X Gear, Assembly, Reverse Idler (Inc.
key 21
& 22)
21 102115X Gear, Reverse Idler
22 6803J Bearing, Needle
23 10211IX Shaft, Reverse Idler
24 STD551143* Washer, Lock 7/16
KEY PART
NO. NO.
25 STD541143‘
26 102128X
27 102100X
28 106390X
29 102134X
30 109204X
31 102106X
32 106388X
33 102121X
34 102112X
35 102101X
36 106141X
37 4422J
38 106142X
39 105345X
40 105346X
41 8358J
42 4220R
43 106146X
44 9672R
45 102144X
46 9676R
47 9674R
48 121745X
49 106144X
50 106147X
51 17580408
52 STD541031*
53 6066J
DESCRIPTION
Nut, Hex 7/16-20
O-Ring
Bearing, Shaft, Ground Drive
Spacer0.765x1.125x1 23
Chain #35-50 Pitch
Ground Shaft Assembly
Bearing, Shaft, Ground Drive
SpacerQ JOxI 00x1150
Sprocket and Gear Assembly
Shaft, Reduction (2nd)
Screw, Whiz, Lock 5/16-18x3/12
Sprocket Assembly w/Bearing (Inc
key 37 & 38)
Bearing, Needle
Sprocket. Tine
Gear, Cluster, Red 1st & 2nd
Gear, Reverse
Shaft. Reduction (1st)
Washer, Thrust
Spacer 1.01 x 1 75 x 0.760
Cup, Formed
Ring. Spiral
Seal, Ring, Rubber
Seal, Oil
Gearcase, R.H. w/Bearing (Inc key 8)
Shaft, Tine
Chain, Roller #50-50 Pitch
Screw 1/4-20x1/2
Nut, Hex. 5/16-18
Grease, Plastilube #1
' STANDARD HARDWARE-PURCHASE LOCALLY
