REPAIR PARTS
4 H.P. CRAFTSMAN TILLER - MODEL NUMBER 917.299642

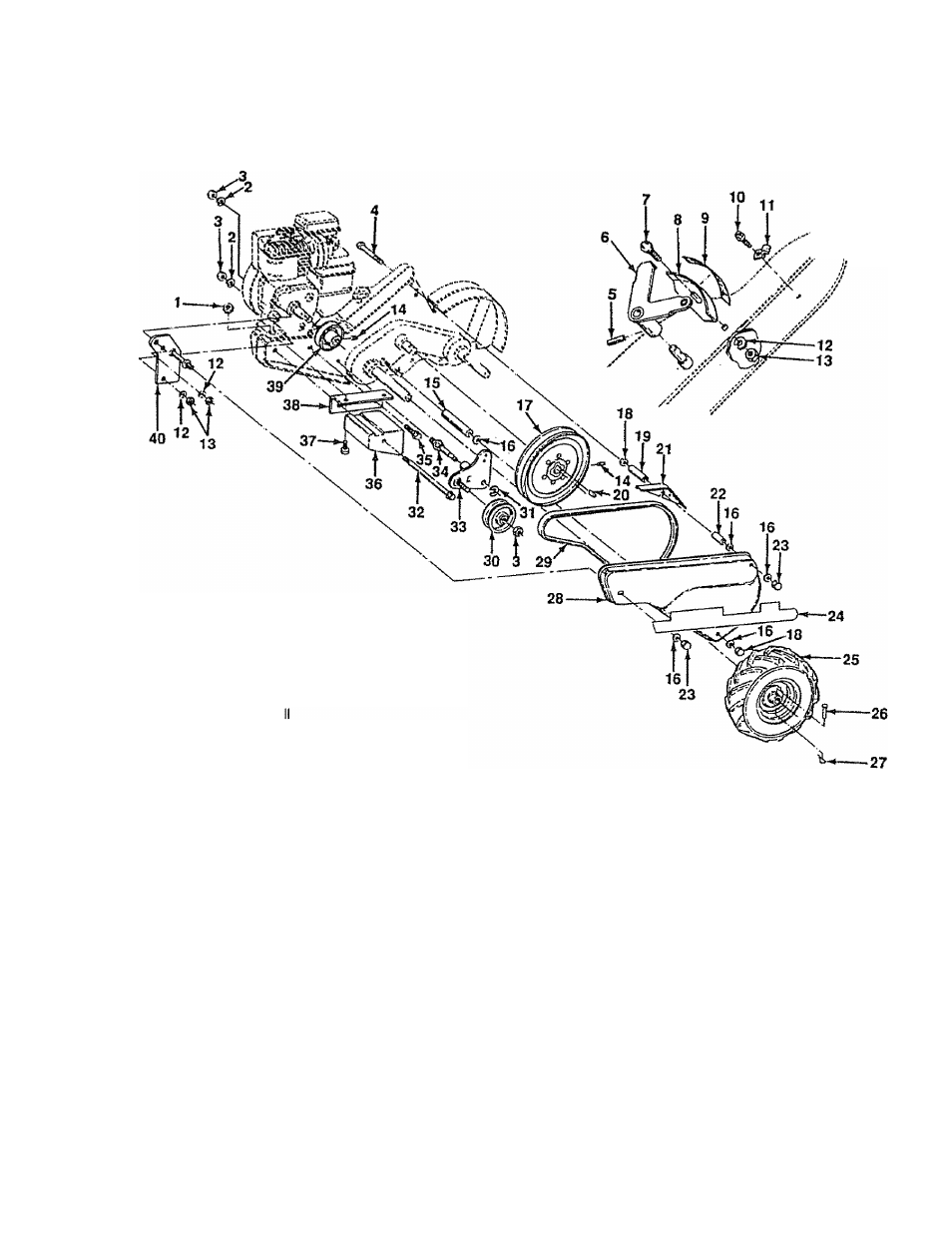

iWAINFRAME, LEFT SIDE
¡1
KEY PART
NO. NO.
1 STD541431*
STD551137*
STD541037*
74930576
1S72H
110111X
STD532505*
8 8700J
9 1021 SOX
10 86777
11 9484R
12 STD551125*
13 STD541025*
14 STD503103*
15 120938X
16 STD551031*
17 100473M
18 STDS41031*
19 110651X
20 2649M
21 110653X
22 110652X
23 104214X
24 110804X
25 102190X
109208X
795R
DESCRIPTION
Nut. Keps 5/16-18
Washer, Lock 3/8
Nut, Hex 3/8-16
Bolt. Hex 5/16- 18x4 3/4
Pin. Ro
Lever, Shift
Boll Rd. Hd. Sq„ Carr 1/4 - 20 x 1/2
Gr 5
Panel, Shift Indicator
Decal, Shift Indicator
Screw, Hex - Washer Head, slotted
#10 -24 X 1/2
Clip
Washer, Lock 1/4
Nut. Hex 1/4 - 20
Screw, Set Hex . 5/16 -18 x 3/8
Spacer. Split 0.327 x 0.42 x 2.68
Washer, 11/32 x 11/16 x 16 Ga
Sheave, Transmission
Nut, Hex 5/16-18
Spacer, Split 0.327 x 0.42 x 1 75
Key, Square 3/16 x 1-1/8
Guard, Pinch Point
Spacer. Split 0,327 x 0 42 x 2.09
Nut, Cap 5/16-18
Decal, Belt Guard
Tire
Rim
Tire Valve
KEY PART
NO. NO.
26 12687SX
27 STD624003*
28 102148X361
29 102143X
30 104679X
31 12000032
32 102384X
33 105611X
34 102141X
35 STD523710*
36 102383X
37 74760524
38 102331X
39 102142X
40 102376X
DESCRIPTION
Rivet, Drilled
Clip, Hairpin
Guard, Belt
Belt. V
Pulley. Idler
Ring, Klip
Bolt, Hex 5/16- 16x 12
Bracket, idler
Shaft, Idler Arm
Bolt, Hex 3/8-16 X 1
Counterweight, L. H
Bolt, Hex 5/16-18x1 1/2
Braket, Reinforcement, L. H
Sheave, Engine
Bracket, Guard Belt
* STANDARD HARDWARE-PURCHASE LOCALLY
24
