REPAIR PARTS
4 H.P. CRAFTSMAN TILLER - MODEL NUMBER 917.299642

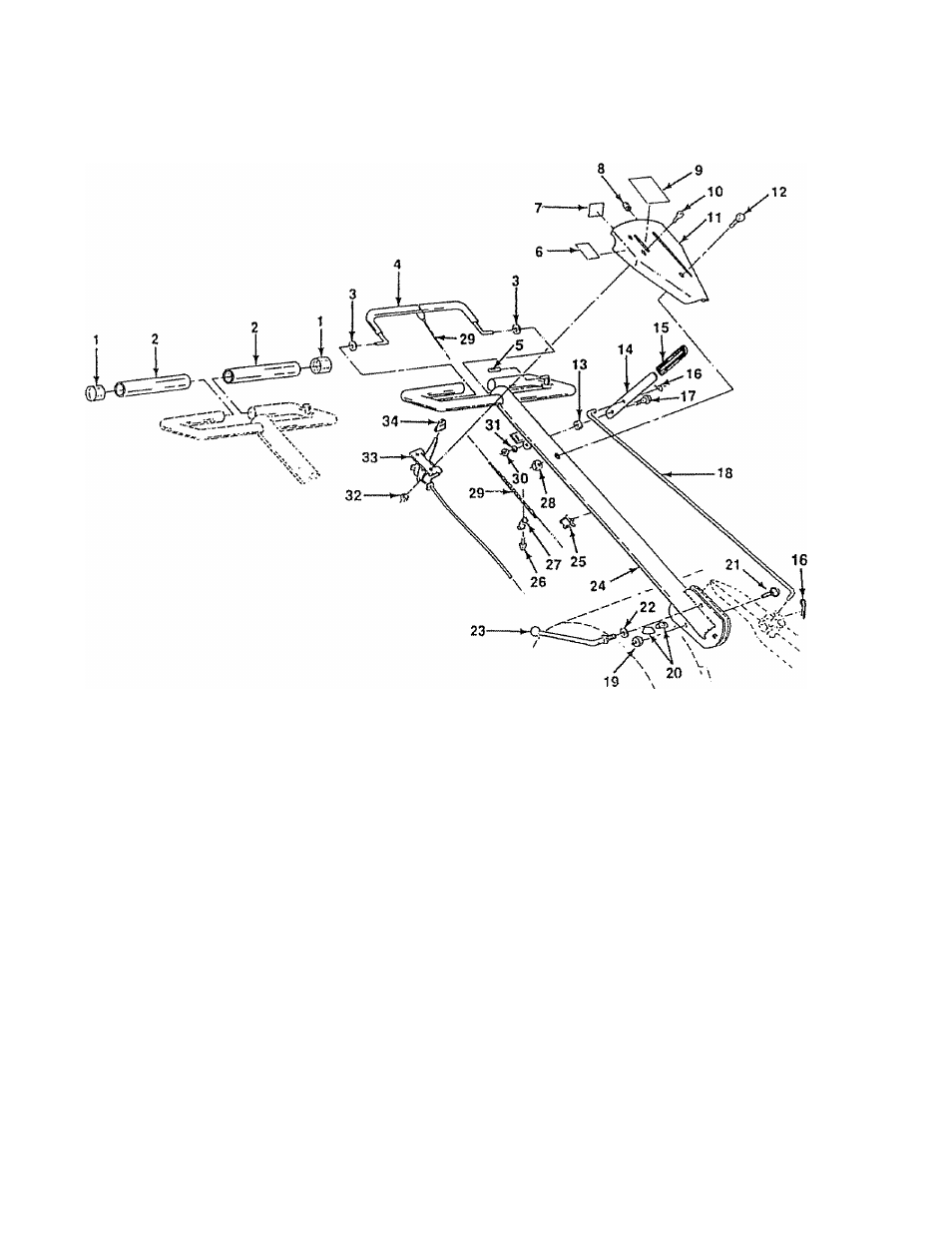

HANDLE ASSEMBLY
KEY
NO. PART
NO.
1 110707X
2 110674X
3 110873X
4 110672X
5 6712J
6 120431X
7 121859X
8 110641X
9 110718X
10 STD511005*
11 110548X
12 STD533125*
13 109313X
14 110741X
15 110646X
16 STD624003*
17 81328
18 110702X
DESCRIPTION
Cap, Sleeve
Grip, Handle
Grommet, Handle
Bar, Drive Control Assembly
Cap, Vinyl
Decal, Hand Placement
Decal, Caution - Clutch
Bushing, Split
Decal, Control Panel
Screw, Mach, Pan Head, C.R,, #10-24
x 1 / 2
Panel, Control
Bolt, Carr 5/16 - IB UNC X 2-3/8 Gr5
Grommet, Rubber
Handle, Shift
Handle, Grip
Clip, Hairpin
Bolt, Shoulder
Rod, Shift
KEY PART
NO. NO.
19 STD541437*
20 109229X
21 STD533710*
22 19131611
23 109228X
24 121213X
25 121 USX
26 86777
27 9484R
28 73970500
29 110675X
30 STD541025*
31 STD551125*
32 STD541462*
33 110670X
34 110680X
-- 124340XOE
DESCRIPTION
Nut, Centerlock - 3/8 -16
Lock, Handle
Bolt, Rd Hd Sq Neck Carr 3/8 ■ 16 x
1 Gr5,
Washer, 13/32 x 1 x 11 Ga.
Lever, Lock - Handle
Handle, Assemble
Clip, Plastic Cable
Screw, Hex Washer Hd Sit, #10-24 x
1/2
Clip
Nut, Lock Hex, Flange
Clutch, Cable
Nut, Hex 1/4-20
Washer, Lock 1/4
Nut, Keps, #10-24
Throttle, Control
Knob, Control
Owners. Manual
STANDARD HARDWARE-PURCHASE LOCALLY
