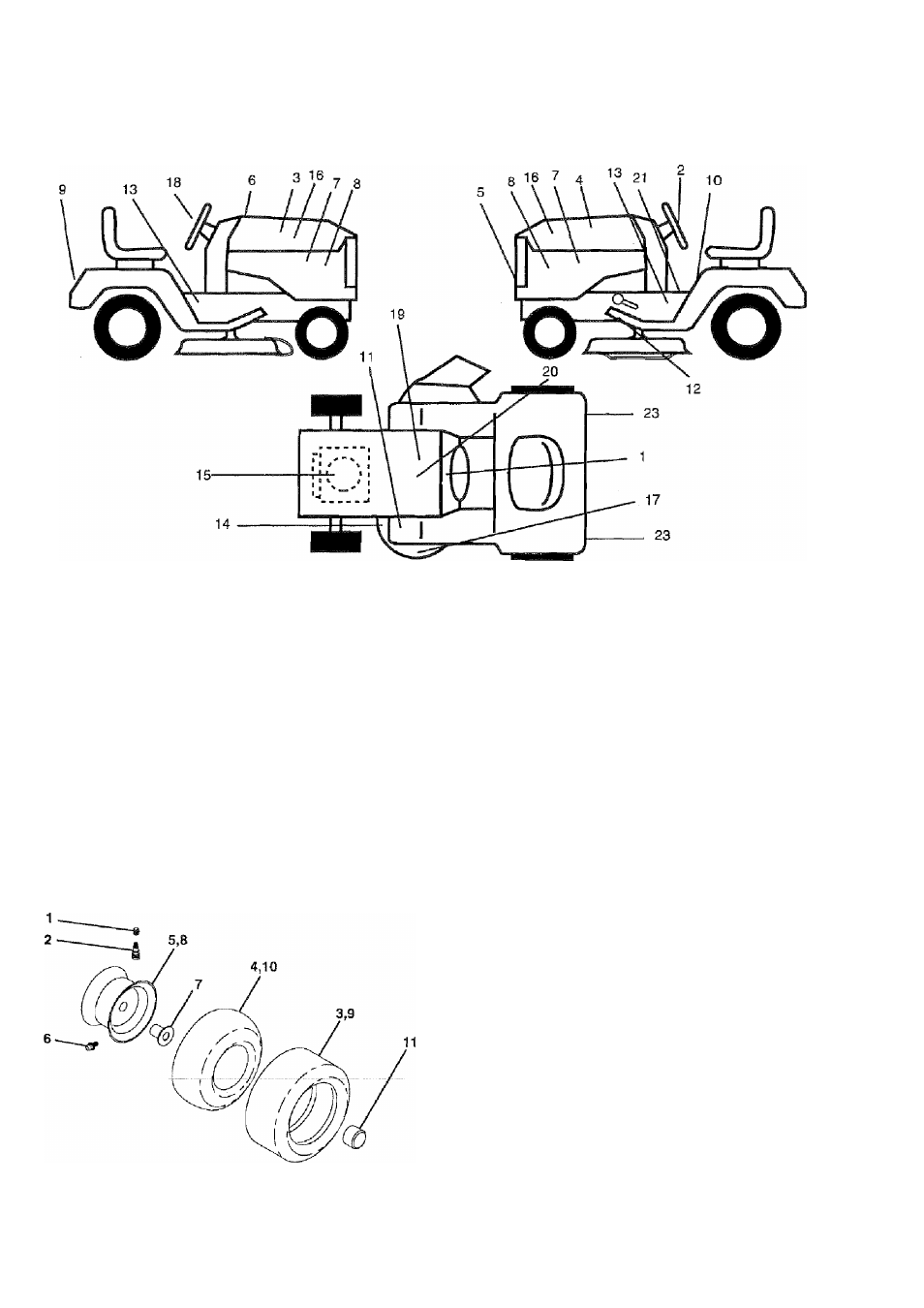

DECALS

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256600

KEY

NO.

PART
NO.

DESCRIPTION

KEY

NO.

PART
NO.

1

138955

Decal, Operating Instruction

14

139346

2

150333

Decal, Cap Cnsmr Help Line Srs

15

12-113-55

3

146705

Decal, Hood, Craftsman, RH

16

151708

4

146706

Decal, Hood, Craftsman, LH

17

151302

5

151400

Decal, Grille

18

146710

6

133644

Decal, Maintenance

19

138047

7

138048

Decal, Side Panel

20

149516

8

142241

Decal, Side Panel

21

140837

9

146709

Decal, Fender, Craftsman

23

106202X

10

137537

Decal, Caution

- .

138311

11

4900J

Decal, Clutch/Brake

- -

145247

12

1

46046

Decal, V-Belt Drive Schematic

- -

145245

13

151452

Decal, Chassis, 6 Speed/46”

- -

152032

WHEELS & TIRES

152033

DESCRIPTION

Decal, V-Belt Schematic

Decal Kohl 15.5 Cmd-L Sears

Decal Ins. Hood

Decal, Deck Mower EZ3 Polo
Decal, Insert Strg
Decal, Battery
Decal, Btry Dngr/Psn Eng Acme
Decal Brake Parking Saddle
Reflector, Taillight

Decal, Handle Lift Height Adj,

Fastener Pop-In Footrest
Decal, Pad Footrest

Manual, Owner's (Eng)
Manual, Owners (Span)

KEY

PART

NO.

NO.

1

59192

2

65139

3

106222X

4

59904

5

106732X427

6

278H

7

9040H

8

106108X427

9

122082X

10

7152J

11

104757X

- -

144334

DESCRIPTION

Cap, Valve, Tire

Stem, Valve

Tire, Front

Tube, Front (Service Item Only)

Rim Assembly, Front

Fitting, Grease (Front Wheel Only)

Bearing, Flange (Front Wheel Only)

Rim Assembly, Ream___ _____ __

Tire, Rear
Tube, Rear (Service Item Only)

Cap, Axle

Sealant, Tire (10 oz. Tube)

NOTE:

All component dimensions given in U.S. inches

1 inch = 25.4 mm
