SERVICE AND ADJUSTMENTS

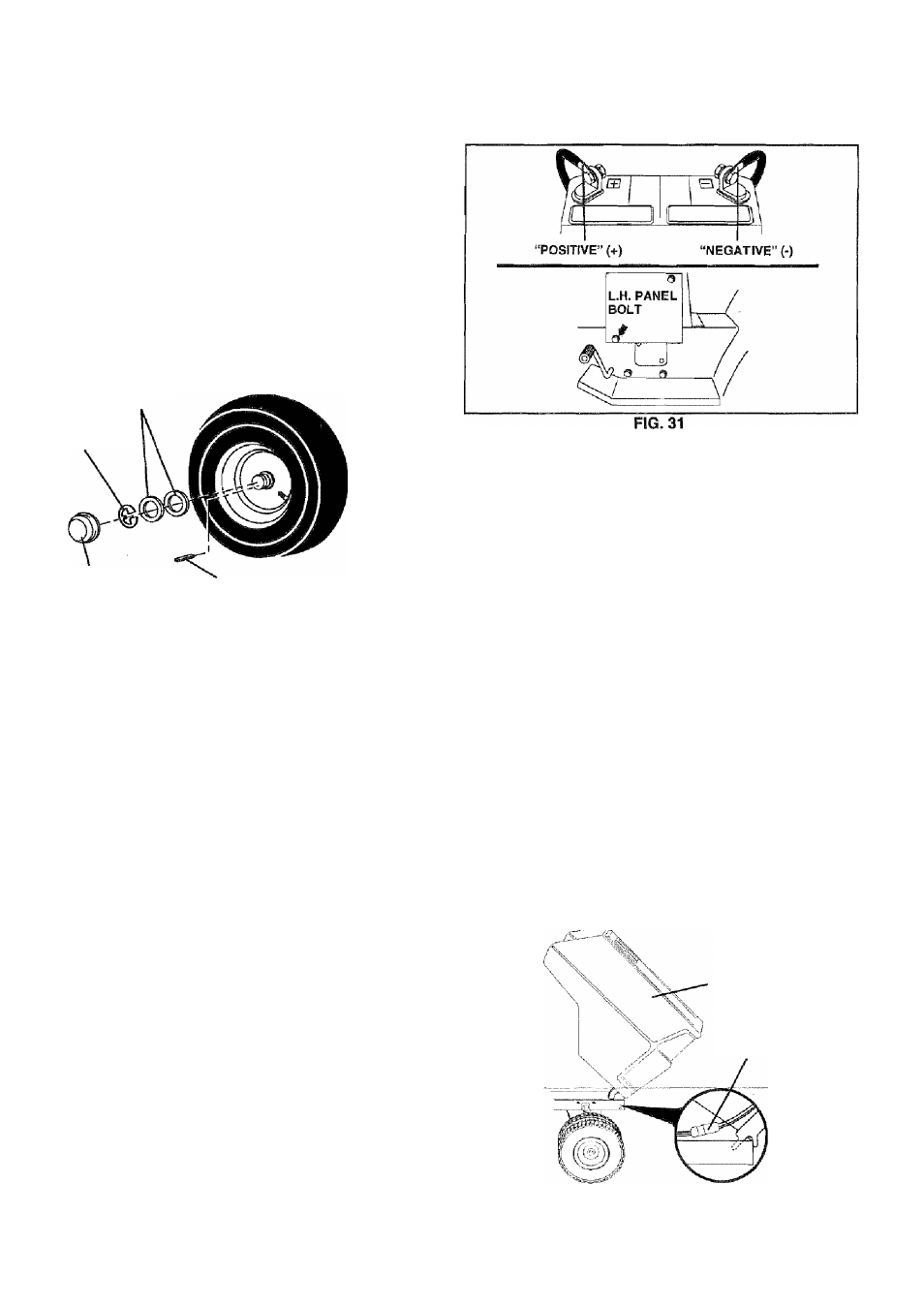

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 30)

® Block up axle securely.

• Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

Repair tire and reassemble.

» On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

Replace washers and snap retaining ring securely in

axle groove.

® Replace axle cover.

WASHERS

RETAINING
RING

AXLE COVER

SQUARE KEY
(REAR WHEEL ONLY)

FIG. 30

TO START ENGINE WITH A WEAK BATrERY

(See Fig. 31)

A

CAUTION: Lead-acid batteries gener­

ate explosive gases. Keep sparks, flame

and smoking materials away from bat­

teries.

Always

wear

eye

protection

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. If “jumper cables” are used for emergency

starting, follow this procedure:

IMPORTANT:

YOUR TRACTOR IS EQUIPPED WITH A

12

VOLT

NEGATIVE

GROUNDED

SYSTEM.

THEOTHER

VEHICLE

MUST

ALSO

BE

A

12

VOLT

NEGATIVE

GROUNDED

SYSTEM.

DO

NOT

USE

YOUR

TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

Connect each end of the RED cable to the POSITIVE
(+) terminal of each battery, taking care not to short

against chassis.

Connect one end of the BLACK cable to the NEGA­

TIVE (-) terminal of fully charged battery.

•—Connect the-other-end ot-the3LACK.cableJo-good^

CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES. REVERSE ORDER -

BLACK cable first from chassis and then from the fuily

charged battery.

RED cable last from both batteries.

TO REPLACE HEADLIGHT BULB

Raise hood.

Pull bulb holder out of the hole in the backside of the
grill.

® Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run
poorly, stop running, or prevent it from starting.

Check wiring. See electrical wiring diagram in the

Repair Parts section of this manual.

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 32)

® Raise hood.

Unsnap headlight wire connector.

® Stand infrontoftractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

To replace, reverse above procedures.

HOOD

HEADLIGHT

WIRE
CONNECTOR

24
