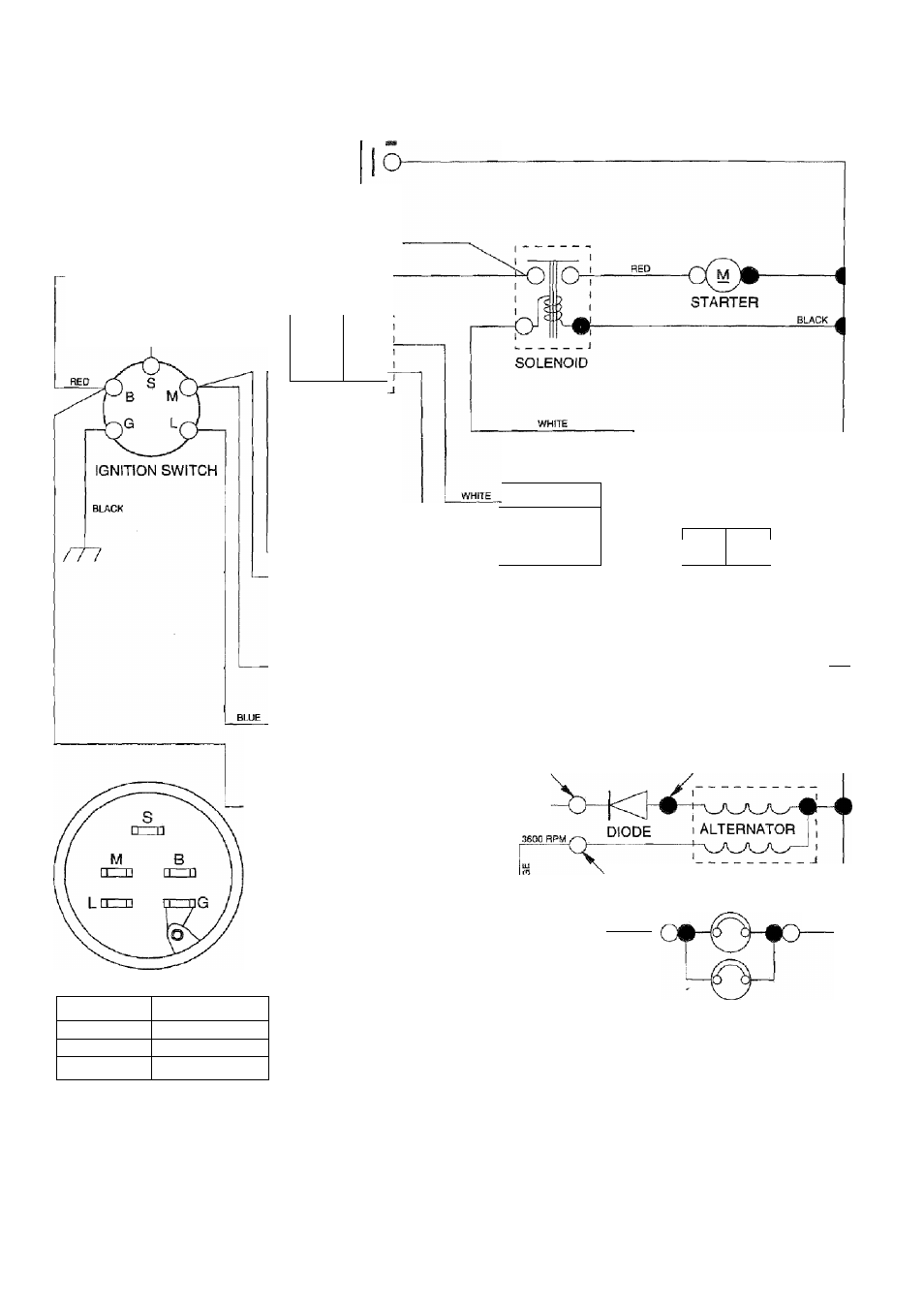

SCHEMATIC
TRACTOR - - MODEL NUMBER 917.256600
RED
-o
BATTERY
O0O
AMMETER
RED
WHITE
mj:>
FUSE 30 AMP.
r---
K) a
r>
CLUTCH / BRAKE
(PEDAL UP)
BLACK
BLACK-
Q^ a _ a _ a _ a _/%
AFTER FIRE SOLENOID
REd
BLACK
rv
1 '
o
SEAT SWITCH
(NOT OCCUPIED)
BLACK
ATT'WENT CLUTCH
(CLUTCH OFF)
~r V
o
SLACK
GROUNDING
CONNECTOR
IGNITION
UNIT
SPARK ^ A
PLUG ^
CHARGING SYSTEM OUTPUT
3 AMP DC ® 3600 RPM 28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
IGNITION SWITCH
POSITION CIRCUIT
OFF M + G
ON B + L
START B + S + L
LIGHTING SYSTEM
NOTE
OUTPUT
11V I ■_ 5 AMP AC
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
■ 14 VOLTS AC MIN. ® 3600 RPM (LIGHTS OFF)
HEADLIGHTS
,1 BROWN BLACKj
HEADLIGHT
SWITCH
(OFF)
NON-REMOVABLE
CONNECTIONS
-O------- REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED /
CLIPS WERE REMOVED FOR ' '
SERVIGING OF UNIT, THEY........ ........
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
