Sears EZ3 917.2566 - Manual (Page 40)

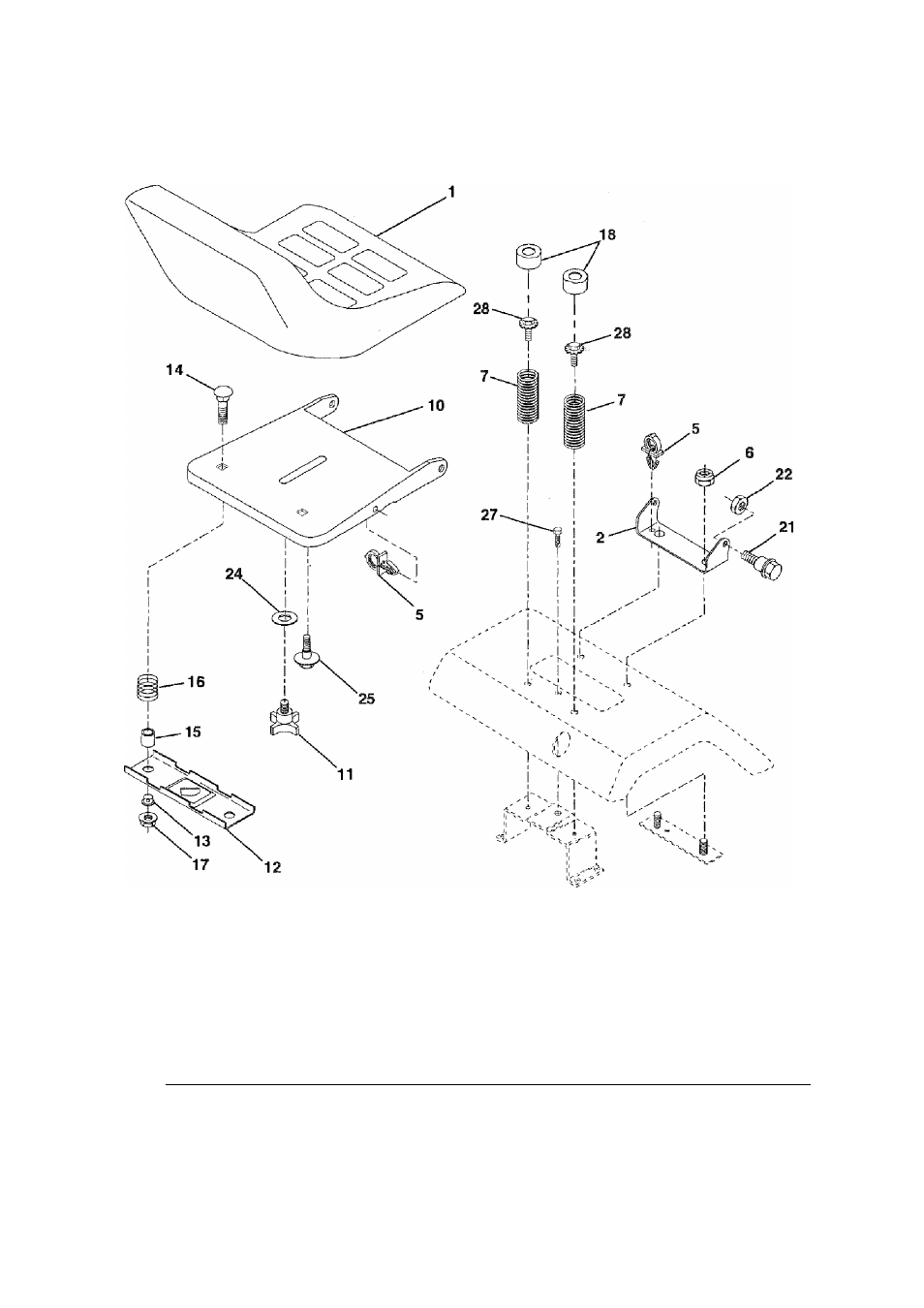

SEAT ASSEMBLY
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.256600
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 140123 Seat 16 121250X Spring
2 140551 Bracket, Pivot, Seat 17 123976X Nut, Flangelock 1/4 Grade 5
5 145006 Clip Push-ln 18 124238X Cap, Spring, Seat
6 STD541437 Nut 21 139888 Bolt, Shoulder 5/16-18 UNC
7 124181X Spring, Seat 22 STD541431 Nut
10 140552 Pan, Seat 24 19171912 Washer 17/32 x 1-3/16 x 12 1
11 120068X Knob, Seat 25 127018X Bolt, Shoulder 5/16-18 x .62
12 121246X Bracket, Switch Mounting 27 17490608 Screw Thdrol. 3/8-16x1/2
13 121248X Bushing, Snap, Nylon 28 150176 Bolt 5/16-18 UNC X 3/4 W/se
14 72050411 Bolt, Carriage 1/4-20 x 1-3/8
“JOTE: All component dimensions given in U.S.
T5 134300 Spacer, Split
1 inch = 25.4 mm
40
