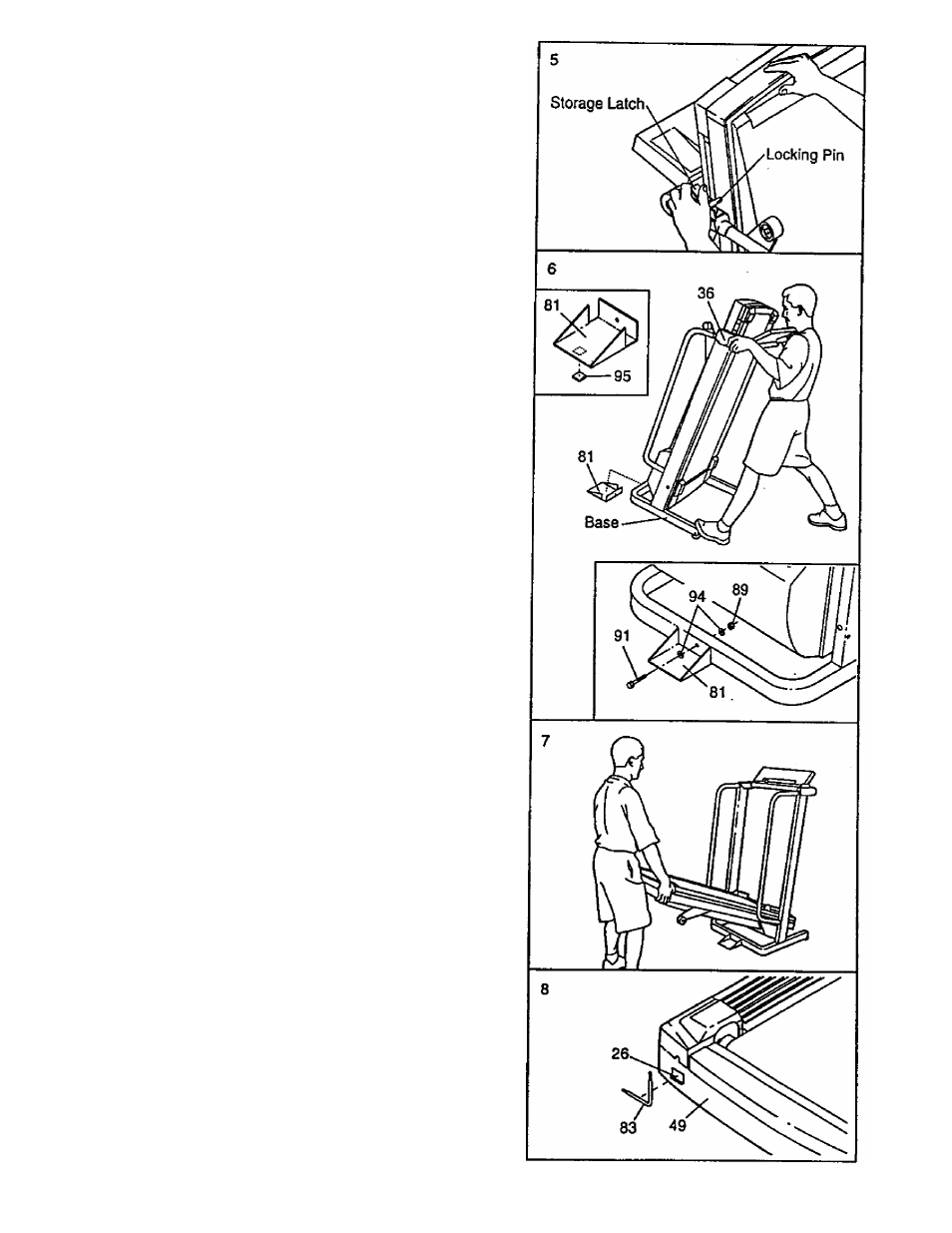

5. Move your right hand to the position shown at the right,
and hold the treadmill firmly. Using your left hand, lift the
storage latch. Raise the treadmill until the locking pin
snaps into the storage latch. Make sure that the locking
pin Is Inside the storage latch, and that the storage
latch is fully closed.
6. See the upper inset drawing. Attach a Base Pad (95) to
the bottom of the Stabilizer Plate (81) in the indicated lo­
cation. ■
Stand behind the treadmill. Hold the Right Crossbar
Bracket (36) and the Left Crossbar Bracket (not shown).
Place one foot on the base in the indicated location.
Tip the treadmill back slightly. While the treadmill is held
in this position, a second person should slide the
Stabilizer Plate (81) onto the base (see the lower inset
drawing). Keeping your foot on the base, carefully tip the
treadmill up until it is resting on the base. Make sure that
the Stabilizer Plate (81) stays on the base.
Attach the Stabilizer Plate (81) to the base with a
Stabilizer Plate Bolt (91), two Stabilizer Plate Washers
(94), and the Stabilizer Plate Nut (89) as shown.
7. Refer to assembly drawing 5 at the top of this page. Hold
the upper end of the treadmill with your right hand as
shown. Using your left hand, lift the storage latch. Pivot
the treadmill slightly until the locking pin is out of the stor­
age latch.
Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. To decrease the possibility of in­
jury, bend your legs and keep your back straight.
8. Remove the paper backing from the Wrench Clip (26).
Press the Wrench Clip onto the Frame (49) in the indi­
cated location. Press the Allen Wrench (83) into the
Wrench Clip.
