OPERATION

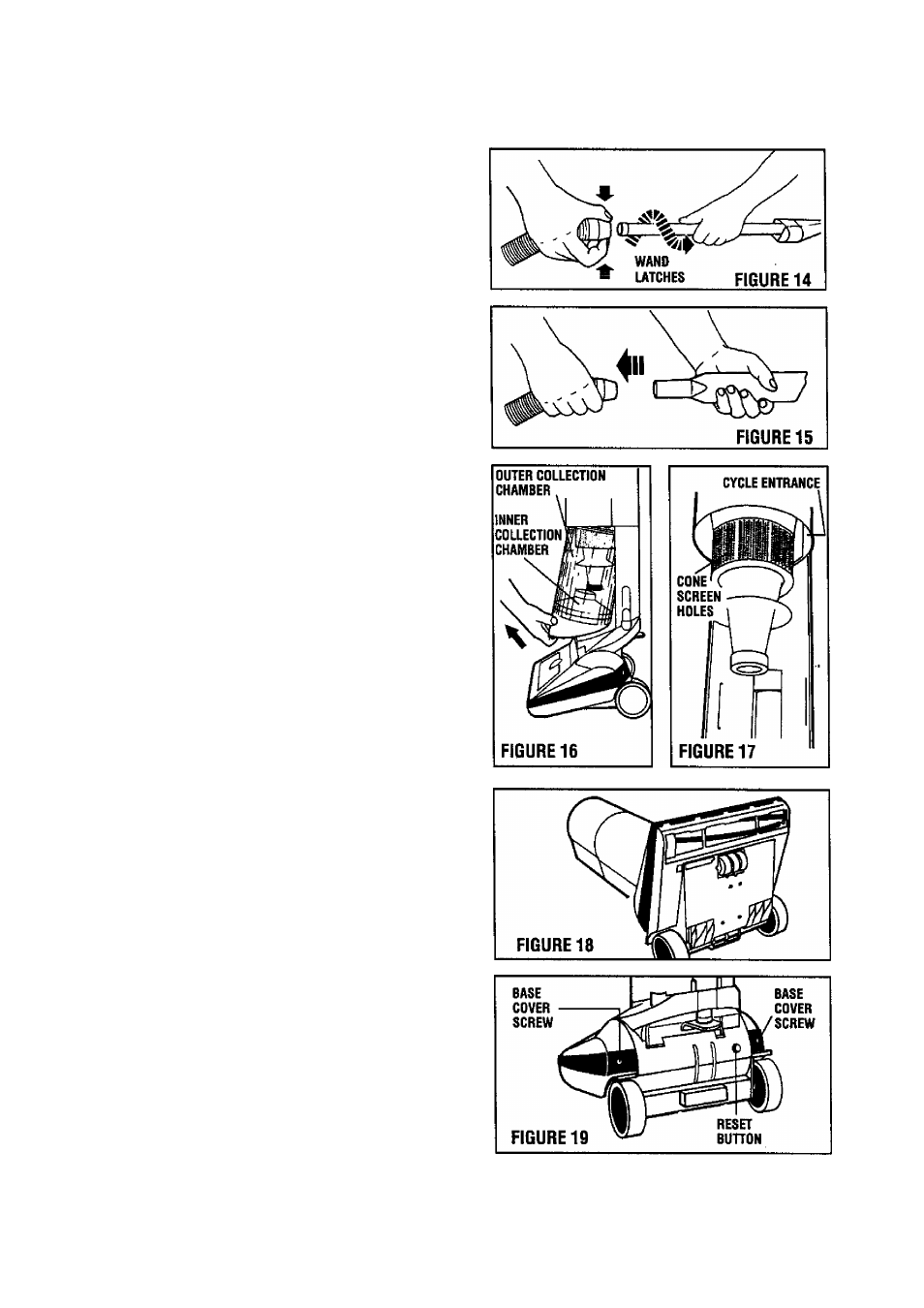

3. Hold the Hose Collar In one hand and with thumb and finger
press in both latches on the Hose Collar, (figure 14)
With the latches pressed in, use the other hand to puii the
Wand out of the Hose Collar. (Figure 14)
Helpful Hint
For easier removal of the Wand, rotate it as you pull it out of
the Hose Collar.
4. Insert the desired attachment into the Hose Collar. (Figure 15)
NOTE: It is not necessary to press in the latches when
inserting or removing the attachments or when re-inserting
the Cleaning Wand.
5. To re-assemble the Wand, simply re-insert the Wand back
into the Hose Collar. (Figure 2)
J. EMPTYING THE COLLECTION BIN
The DESTINY® PLUS vacuum cleaner has a see through
Collection Bin with a Maximum Fill line indicated on it, so you
know exactly when the bln needs to be emptied of its collected
dirt. It is best to empty the Coilection Bin before the dirt rises to
this line.
NOTE: Be sure the machine is off before removing or
replacing the Collection Bin.
• To remove the Collection Bin from the base of the machine,
simply insert your fingers under the Collection Bin Catch, lift
up and out, and pull away.
(Figure 16)
• Empty the collected dirt into a trash can. Make sure to
empty the dirt from both the Outer and Inner Collection
Chambers. (Figure 16)
• Before returning the Bin to the machine:
- Make sure all the dirt has been removed from the
Collection Bin.
- Remove any dirt or lint that may have accumulated at the
entrance to the outer cyclone, (Figure 17)
- Ciear the Screen Hoies on the Cone of any dirt or tint that
may have accumulated. (Figure 17)
• Then, return the Collection Bin to its original position. Make
sure the Bin Catch locks into place on the machine.
If the Bin
is not securely in place, a loss of suction may occur
during vacuuming.
K. KEEPING THE ROTATING BRUSH CLEAN.
The Rotating Brush is designed to perform effectively for long
periods of time. However, hair, string, and debris can
accumulate. It is recommended that you occasionally check
the brush for accumulation.
Note: Be sure to unplug the
machine before removing any debris. See the
MAINTENANCE SECTION of this manual for the removal of
debris and blockages. (Figure 18)
L. OVERLOAD PROTECTION.
The DESTINY* PLUS machine has an overload protection
system that is designed to shut the motor off if it Is subjected to
any excessive load.
If the machine shuts itself off, unplug the machine and proceed
to check for a blockage. See the following MAINTENANCE
SECTION for removing a blockage.
Before the machine can be switched on again, the Reset
Button must be pressed in. (Figure 19)
7
