To make assembly easier, read the

information on page 5 before you begin

assembling the elliptical exerciser.

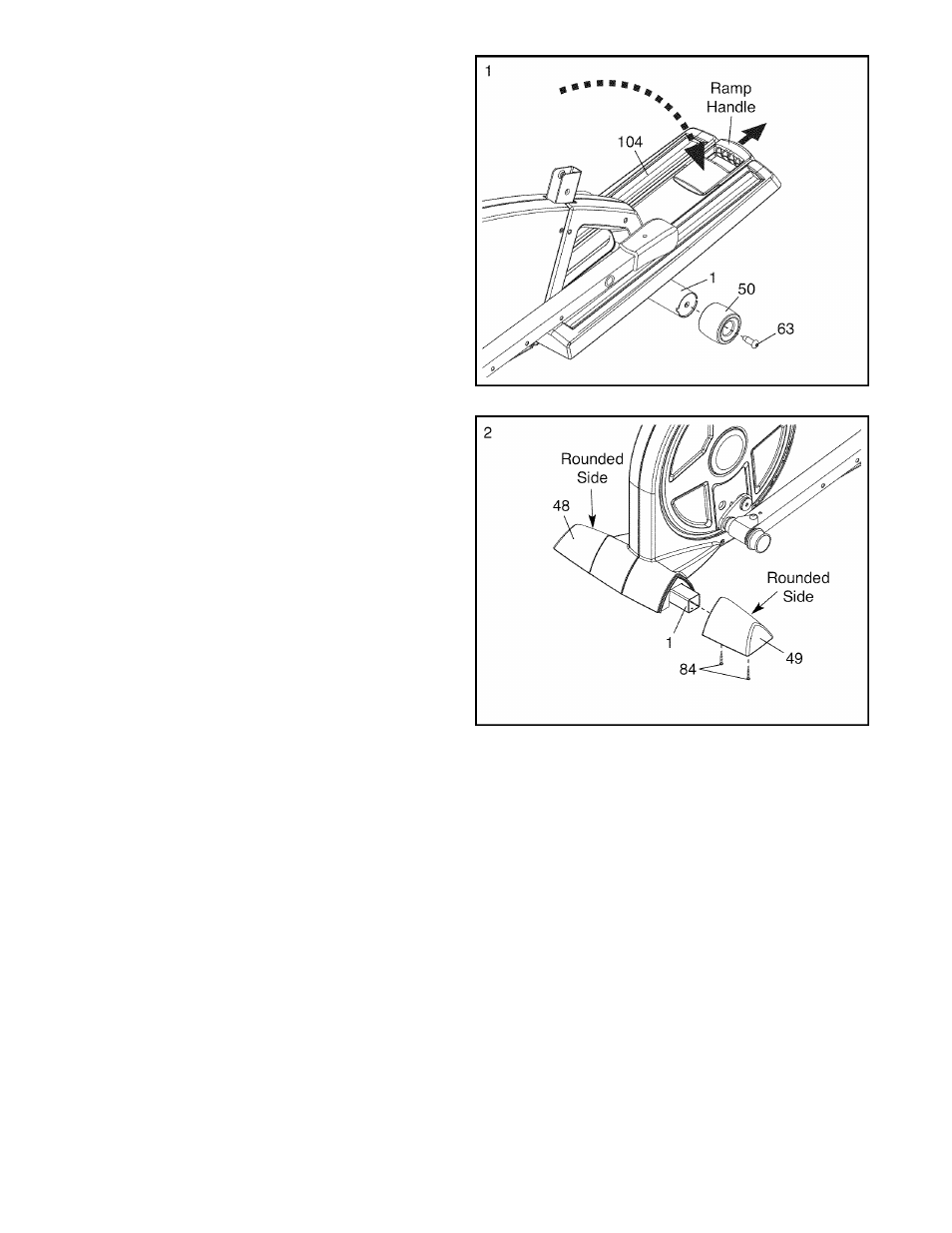

Pull the ramp handle outward and lower the
Ramp (104) until it rests on the Frame (1).

Attach a Wheel (50) to the front of the Frame

(1) with an Ml0

41mm Shoulder Screw (63).

Attach the other Wheel (not shown) in the
same way.

2. Identify the Right Frame Cover (49), which is

marked with an “R” sticker. Then, orient the
Right Frame Cover with the rounded side in the
indicated location. While another person lifts the
rear of the Frame (1), attach the Right Frame
Cover with two M4 x 16mm Screws (84).

Repeat this step for the Left Frame Cover
(48).
