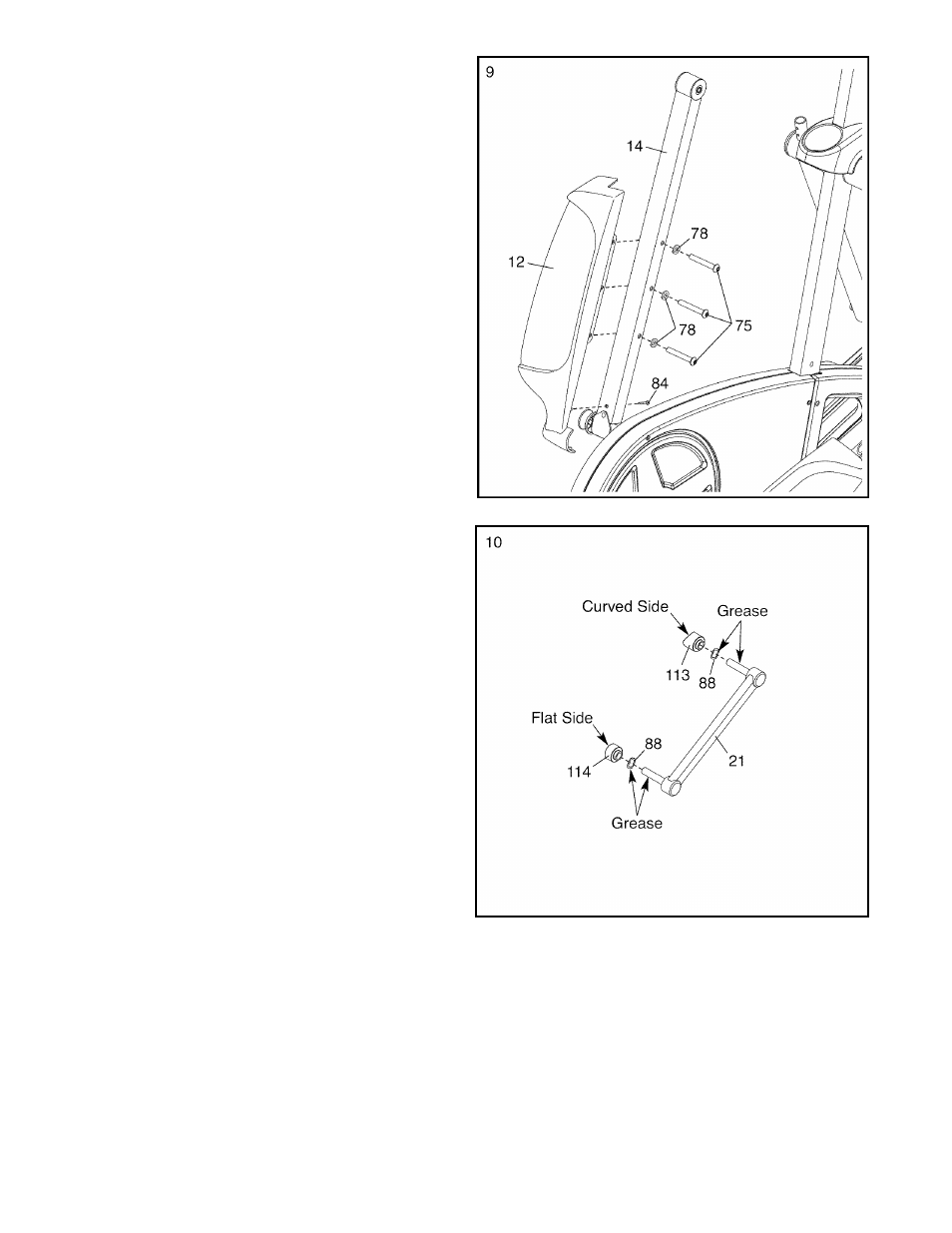

9. Attach the Left Pedal (12) to the left Pedal Arm

(14) with three M10 x 70mm Button Screws
(75), three M10 Split Washers (78), and an M4

16mm Screw (84).

Repeat this step for the other side of the

eiiipticai exerciser.

10. Apply a small amount of grease to two Wave

Washers (88) and to the axles on a Pedal Arm
Axle (21).

Identify an Upper Body Leg Spacer (113), which
has a curved side. Slide a Wave Washer (88)

and the Upper Body Leg Spacer onto the indi
cated axle of the Pedal Arm Axle (21); make
sure that the curved side of the Upper Body
Leg Spacer is facing away from the Pedai

Arm Axie.

Identify a Pedal Leg Spacer (114), which has a

flat side. Slide a Wave Washer (88) and the

Pedal Leg Spacer onto the other axle of the
Pedal Arm Axle (21); make sure that the flat

side of the Pedal Leg Spacer is facing away
from the Pedal Arm Axle.

Repeat this step for the other Pedal Arm

Axle (not shown).
