ASSEMBLY

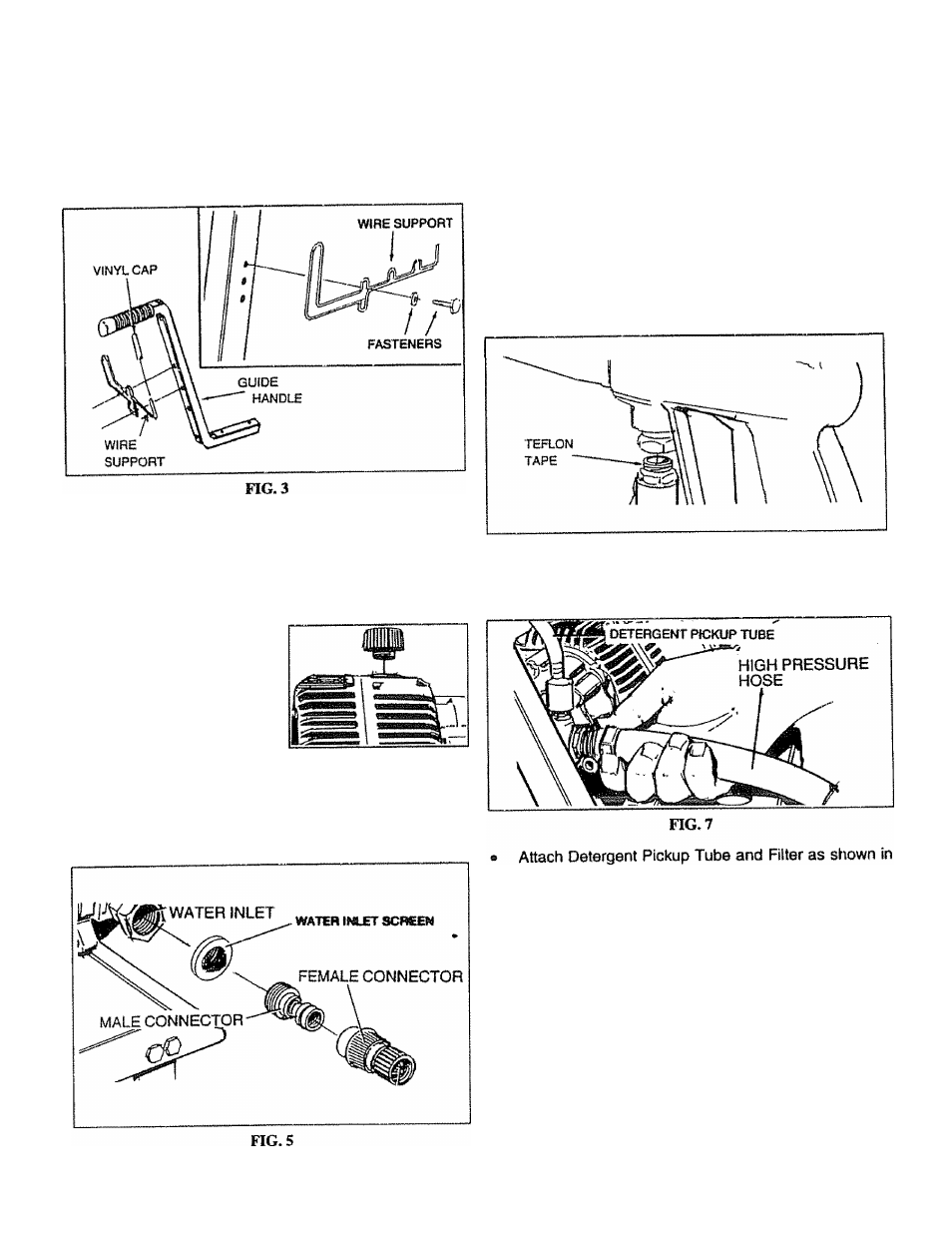

Attach wire support to guide handle with #10 selMrili*
ing screws and #10 flat washers {Fig. 3). "me hose
minder should be to the left and gun holder to the right
Be sure loop of support is pointing upward. Place vinyl
cap onto gun holder.
TO ASSEMBLE REMAINING COMPONENTS
IMPORTANT: YOU MUST ASSEMBLE WAND AND AT*
TACH ALL HOSES BEFORE YOU START ENGINE
STARTING ENGINE WITHOUT ALL HOSES CON
NECTED AND WATER SUPPLIED WILL DAMAGE
PUMP.
» Remove cap from top of
pump and insert oil fill
cap included in parts bag
(Fig. 4).
FIG. 4
Included with tois unit is a Quick-Connect fitting you
attach to Water Inlet on pump. The quick-connect
includes two parts — a Male Connector factory-in
stalled on water inlet and a Female Connector (Fig. 5),
Remove male connector to Inspect Intake Supply
Screen in water inlet for cleanliness and inspect Inlet
Screen on female connector. Reattach male connector
to water inlet and attach female connector to garden
hose.
Unravel high pressure hose, remove protective cap
from end of hose and check that threads are properN
covered with teflon tape. If tape is not property applied,
reapply it so threads are fully covered. The tape seals
the connection from hose to gun and wand assembly.
Attach fitting with teflon tape to gun and wand assembly
(Bg, 6), You may want to spin gun or spin hose to
secure connection. Tighten with adjustable wreruh.
FIG. 6
Attach the other end of the high pressure hose to high
pressure fitting on pump (Fig. 7). Tighten with adjust
able wrench.
Fig. 7
® To attach the adjustable nozzle, refer to Operation
section, Fig. 10.; to store optional turbo nozzle, refer to
Operation section. Fig. 17,
CHECKLIST
® Check that fasteners you used to install wheels and
handle
are
tight.
Vibration
during
operation
may
loosen fasteners that are not tight enough.
o Check for proper hose connections (high pressure and
water supply) and for tight connections and that there
are no kinks, cuts, or damage to the high pressure
hose.
a Provide proper water supply (not to exceed 140°F).
® Be sure to read “Safety Rules” and “Operation” sec
tions before using the pressure washer.
