1 ELECTRONIC CONTROL ON-OFF SWITCH
11
2
MACHINE START BUTTON
12
3 CHILLED WATER THERMOSTAT
13
4 MACHINE STOP BUTTON
14
5 OIL PUMP AUTO-MANUAL SWITCH
15
6 CR1 CALIBRATION ADJUSTING SCREW -
MOTOR LOAD
16
7 CR2 CALIBRATION ADJUSTING SCREW -
MOTOR LOAD
17
8 MOTOR LOAD MICRORELAY
18
9
ELECTRICAL DEMAND CONTROL KNOB
10
MODULE TERMINALS (HIDDEN)
19
RELAYS R1 (TOP), R2 (BOTTOM), (HIDDEN)
OIL PUMP TIME DELAY RELAY
3-AMP FUSE - REFRIGERANT PUMP
3-AMP FUSE - SAFETY CONTROL CIRCUIT
CAPACITY CONTROL AUTO-MANUAL SWITCH
CAPACITY BALANCE ADJUSTING SCREW - SENS
THROTTLING RANGE ADJUSTING SCREW
CALIBRATION ADJUSTING SCREW - TEMPERATURE
BRIDGE
CHILLED WATER MICRORELAY
t

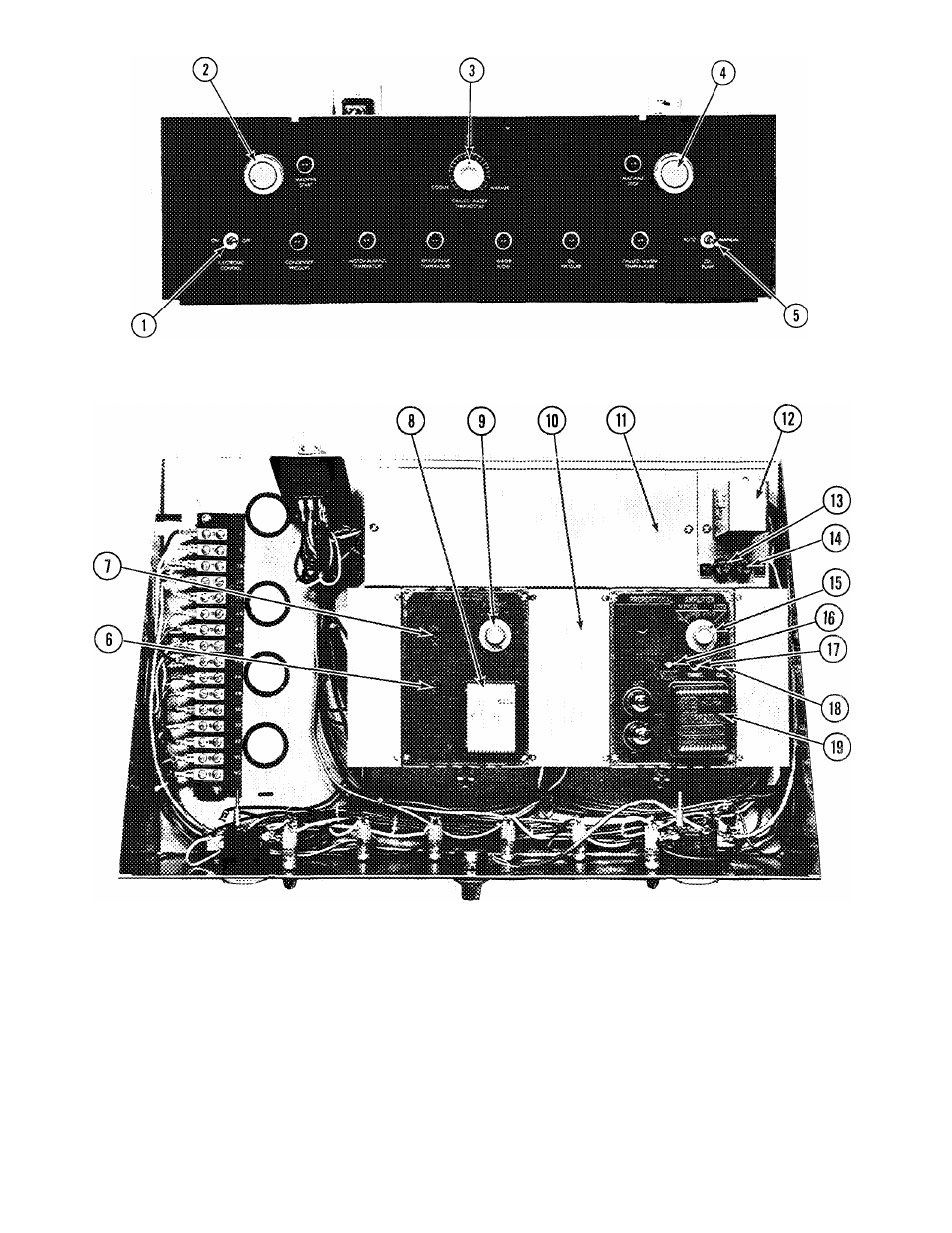

Fig. 5 - BarbeT-Colman Controls
