HEATING A COOLING

38QH

Heat Pumps — Outdoor Section

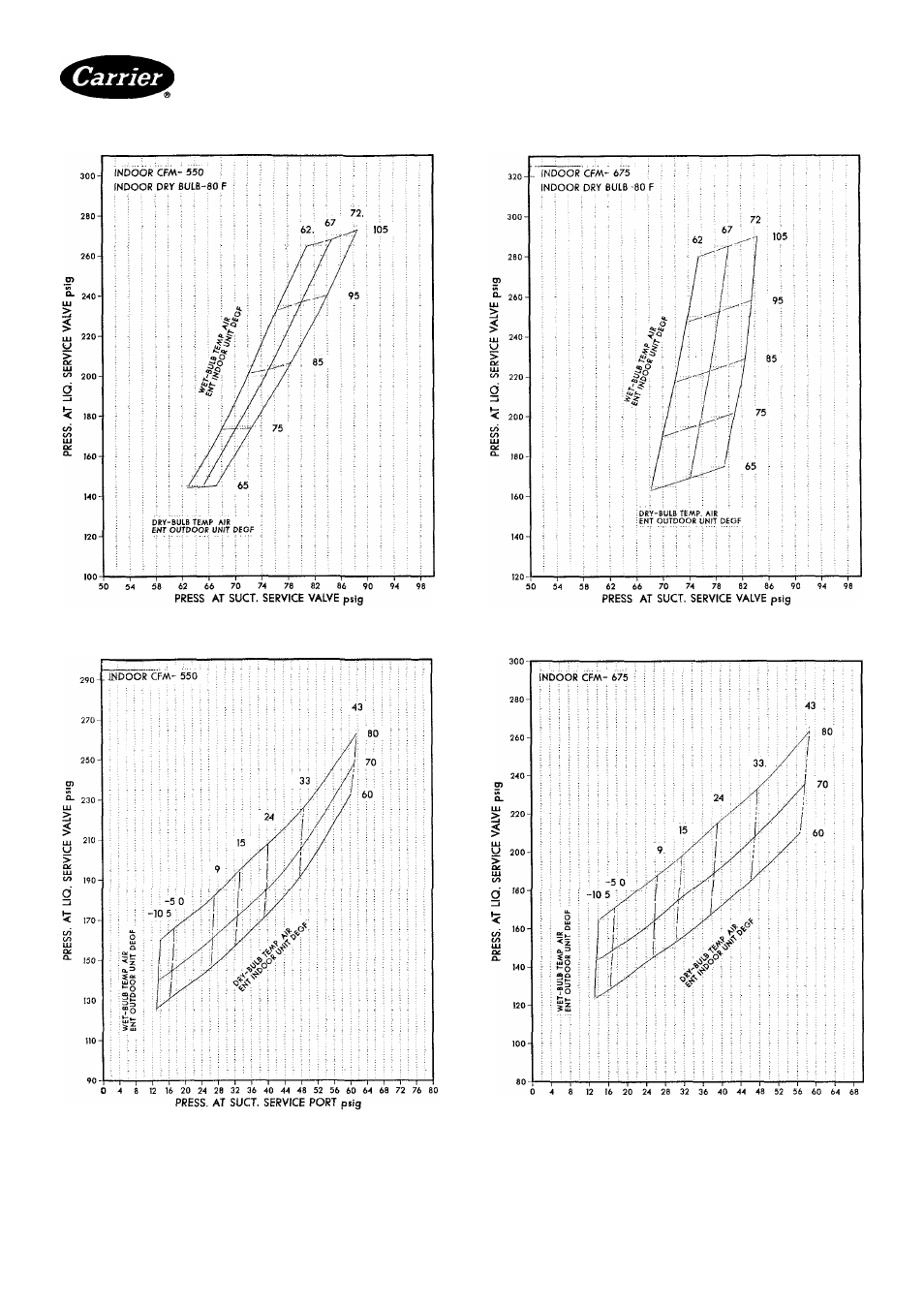

Fig. 6 — 38QH015 with Tabie 2 Combinations

Cooiing Cycle Charging Chart

Fig. 8 — 38QH018 with Tabie 2 Combinations

Cooiing Cycie Charging Chart

Fig. 7 — 38QH015 with Table 2 Combinations

Heating Cycie Check Chart

PRESS AT SUCT. SERVICE PORT psig

Fig. 9 — 38QH018 with Table 2 Combinations

Heating Cycie Check Chart
