HEATING A COOUNG

38QH

Heat Pumps — Outdoor Section

Fig. 18 — 38QH048 with Table 2 Combinations

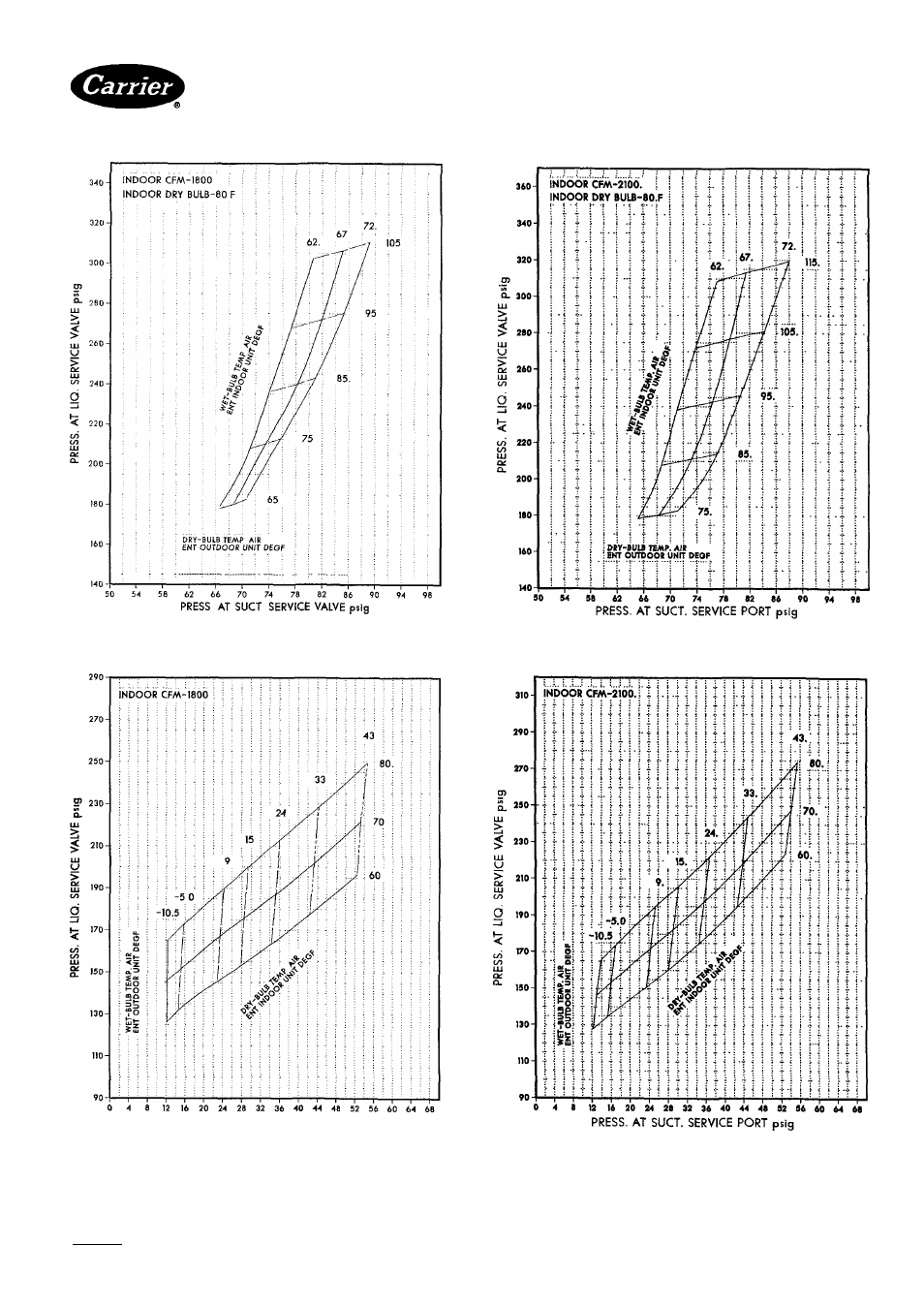

Cooling Cycle Charging Chart

-> Fig. 20 — 38QH060 with Table 2 Combinations

Cooling Cycle Charging Chart

PRESS. AT SUCT. SERVICE PORT psig

Fig. 19 — 38QH048 with Table 2 Combinations

Heating Cycle Check Chart

Fig. 21 — 38QH060 with Table 2 Combinations

Heating Cycle Check Chart
