Electriccil data
(cont)

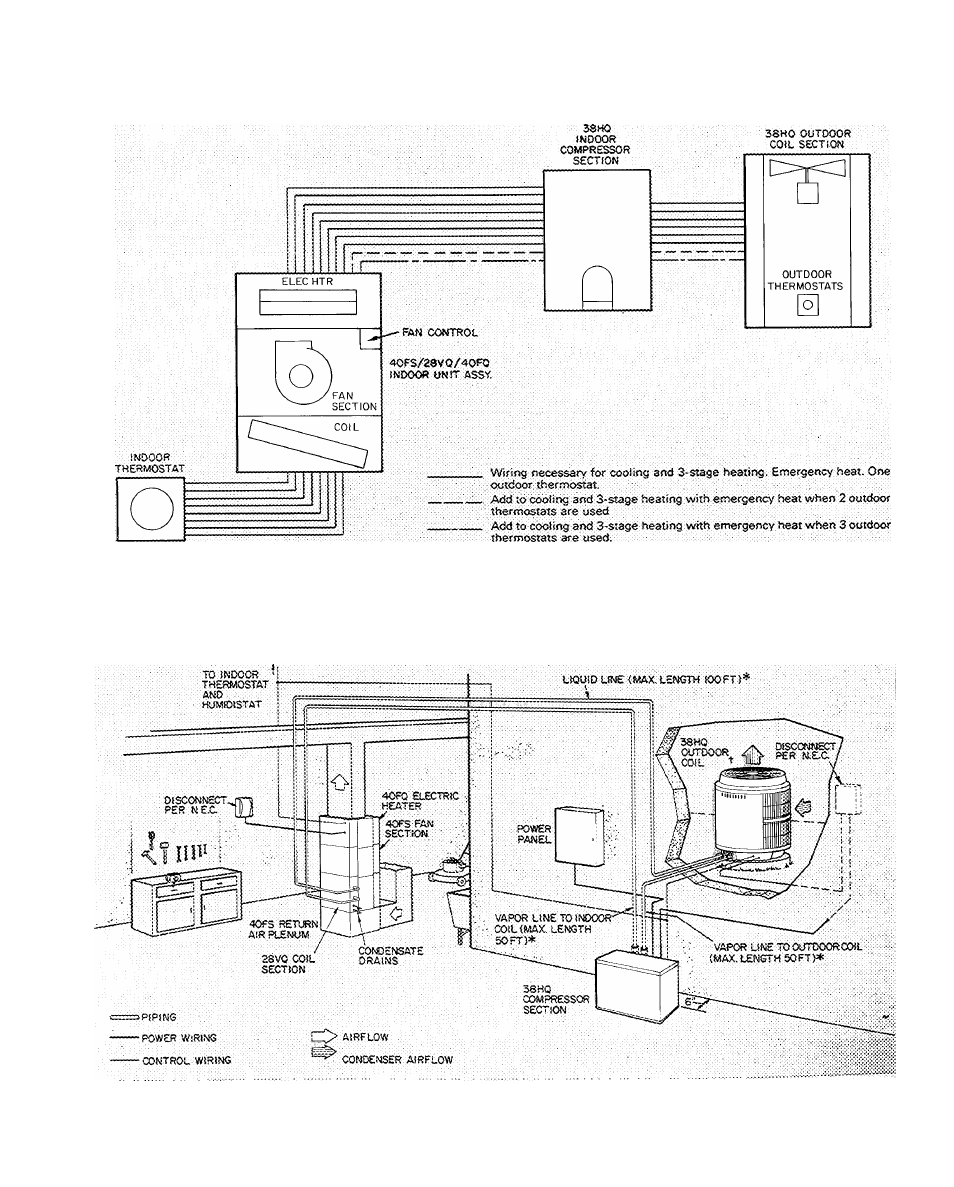

TYPICAL SYSTEM CONTROL WIRING REQUIREMENT
Typical piping and wiring
"Standard accessory tubing package may be used Vapor line must be sectioned at compression unit
tAllow 3'-0" minimum distance between unit and building for service and airflow
NOTE Wiring and piping are general guides only They are not intended for a specific installation
