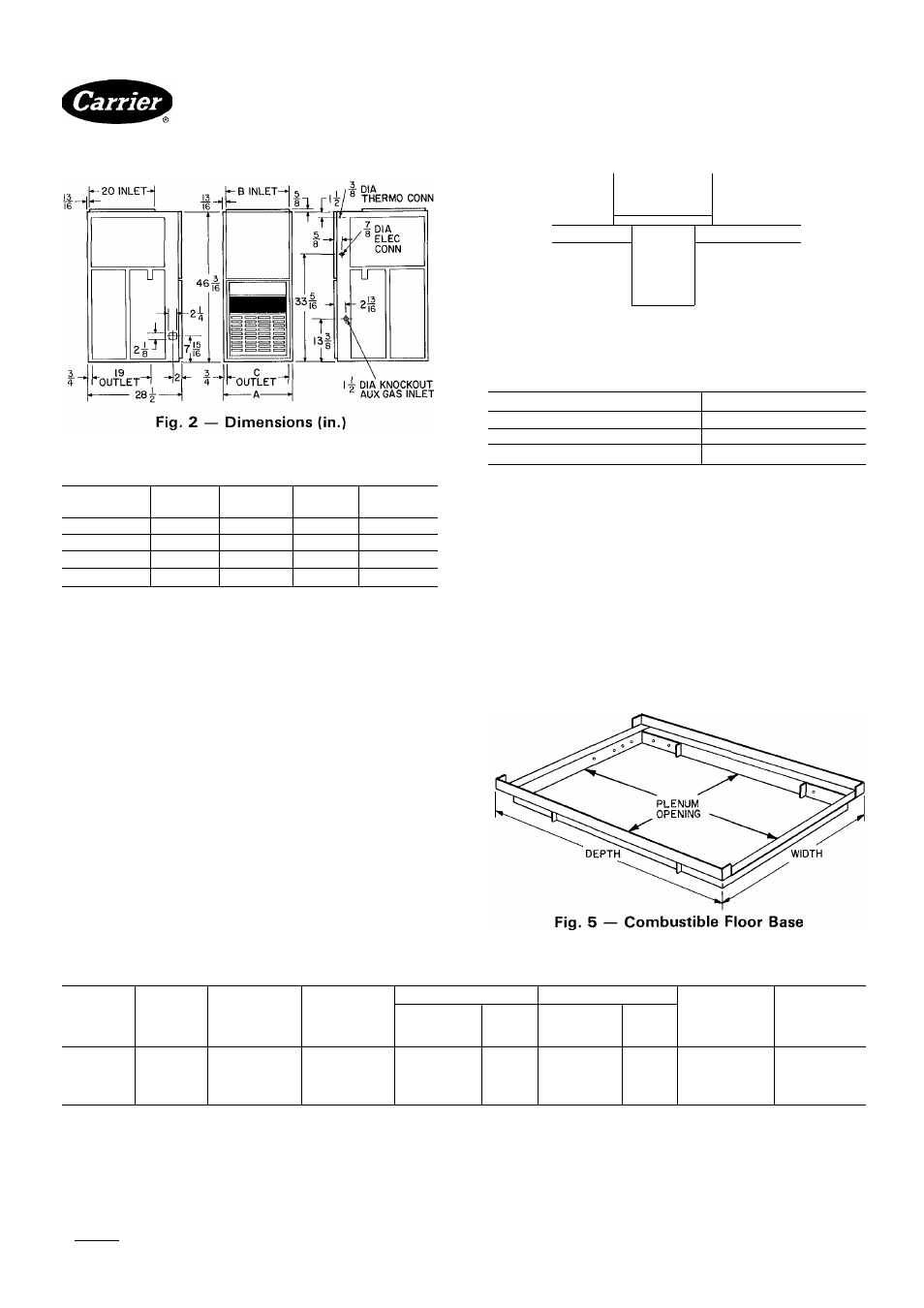

Counterflow Gas-Fired Furnaces
Table 2 — Dimensions (in.)
SIZE
58DRC
A B C VENT
045 17 '/2 15% 16 4
065 17 '/2 15% 16 5
080 21 19% 19'/2 5
095 24'/2 22’%e 23 6
2. Construct hole in floor per dimensions in Fig. 3 and
Table 4.
3. Place plenum and furnace as shown in Fig. 4.
HOLE IN FLOOR
FURNACE
-fc-SHEET METAL
PLENUM
Fig. 4 — Furnace on a Concrete Slab
Table 4 — Floor Opening Dimensions (in.)
SIZE 58DRC A
045, 065 16%6
080 19%
095 23'/i6
INSTALLATION ON A COMBUSTIBLE FLOOR
I. Read Installation Instructions packaged with com­
bustible floor base. See Fig. 5.
Cut and frame hole in floor per dimensions in Fig. 3
and Table 4. If this requires cutting a floor joist, tie
ends of cut joist into adjacent joists so that proper floor
support is maintained.
Assemble and install combustible floor base per in­
structions packaged with base.
When completed, combustible floor base, plenum,
and furnace (or coil casing when used) should be
installed as shown in Fig. 6.
2
.
3.
Fig. 3 — Floor Opening
Table 3 — Ratings and Performance*
SIZE
58DRC
INPUT
BTUH
HEATING
CAPACITY
(BTUH)**
TEMP
RISE
RANGE (F)
HEATING! COOLING!
MOTOR HP
(PSC)
APPROX
SHIP. WT
(lb)
Ext Static
Pressure
(in. wg)
CFM
Ext Static
Pressure
(in. wg)
CFM
045CB 60,000 45,000 30-60 12 1080 0 5 1206 'h 157
065CB 80,000 65,000 30-60 12 1240 0.5 1630 '/2 170
080CB 100,000 80,000 40-70 15 1165 0 5 1620 '/2 187
095DB 120,000 95,000 40-70 20 1830 0.5 2075 '/2 227
PSC — Permanent Split Capacitor
‘Ratings are certified for altitudes to 2000 feet For elevation above 2000 ft, reduce ratings 4% for
each 1000 ft above sea level
tCFM at #3 speed tap
|CFM at #1 speed tap
“Preliminary data.
