RACK UPS INSTALLATION
Rack UPS must be installed using L-Shape type guides for supporting UPS weight. Usually this kind of supports is provided with
rack cabinets. If not, UPS distributor can provide original telescopic guides as optional accessory.
Small black handles included with the UPS are only for locking purposes. UPS cannot be supported only by these handles.
-

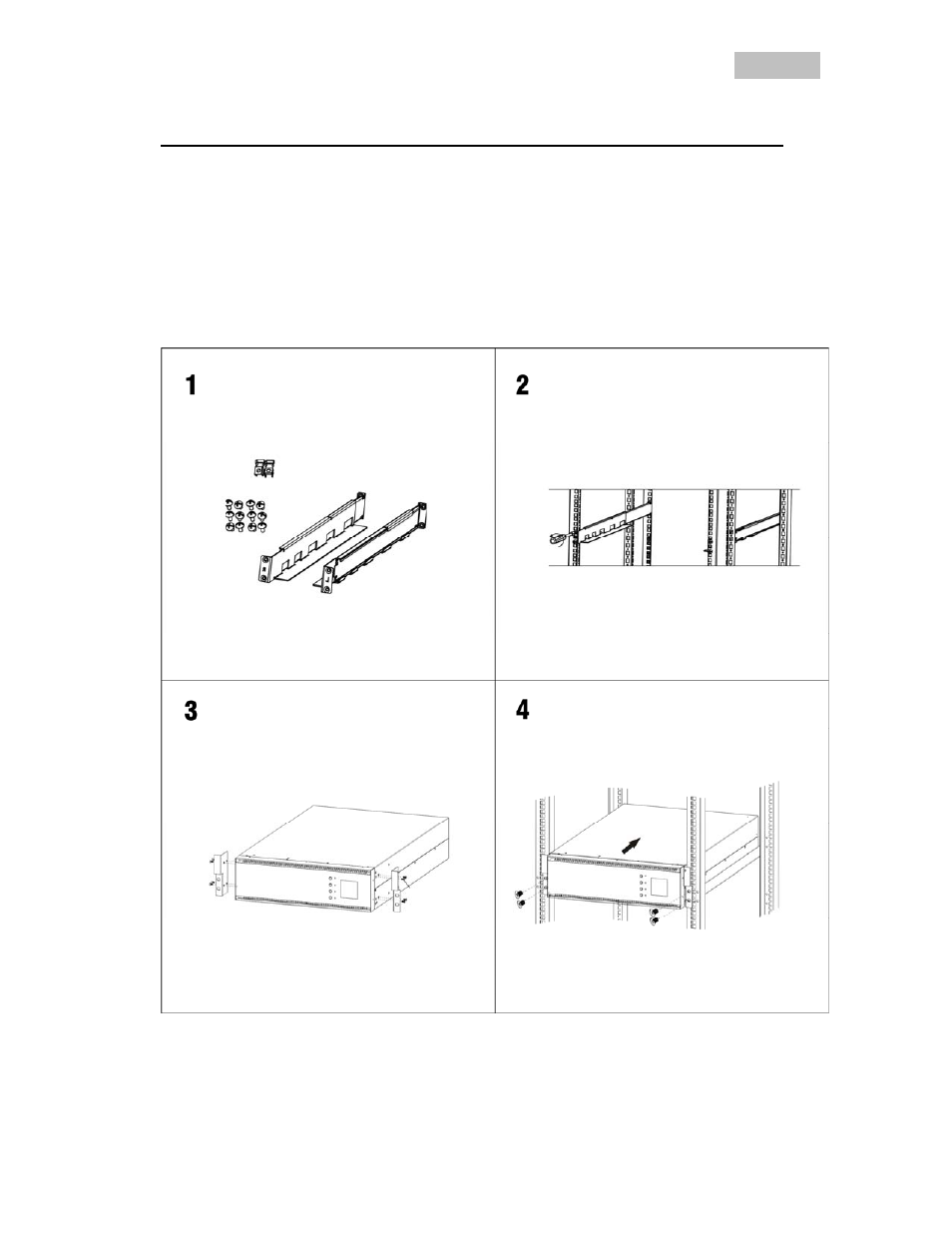

Figure 1: Rack cabinet must include L-shape guide to support UPS.
-
Figure 2: UPS must be installed on L-shape guides.
-
Figure 3: Handles included with UPS are only for locking UPS to the cabinet but not for supporting UPS weight.
-
Figure 4: Original telescopic guides can be provided as optional accessory if it is required.
