XMART Optima RT9 10K - Manual (Page 14)

User Manual
- ONLINE 6K/10K RACK-TOWER ISOTX UPS
ENGLISH
__________________________________________________________________________________________________________________________
www.xmart-ups.com 130717 RT9- 6K-10K (ENG) - 14
4.- UPS INSTALLATION: SINGLE UPS - TERMINAL BLOCK
AC LINES CONNECTION PROCEDURE
• Make sure the UPS is Off before starting the installation.
• Remember to check all wires to be connected are not powered (including external batteries).
UPS terminal block preparation
Remove cover of terminal block at the UPS rear panel in rear panel section of this manual
DO NOT use a wall power outlet to plug UPS to AC Line as usually ratings of this kind of outlets are not enough to power 6KVA UPS.
UPS Input wire must be connected by breaker protected line to electric panel board.
UPS Input and Output Connection
First, connect Ground wires. Ground wires must be FIRST to be connected and LAST to be disconnected.
Connect UPS input and output wires according to your UPS model or configuration as described in following figures:

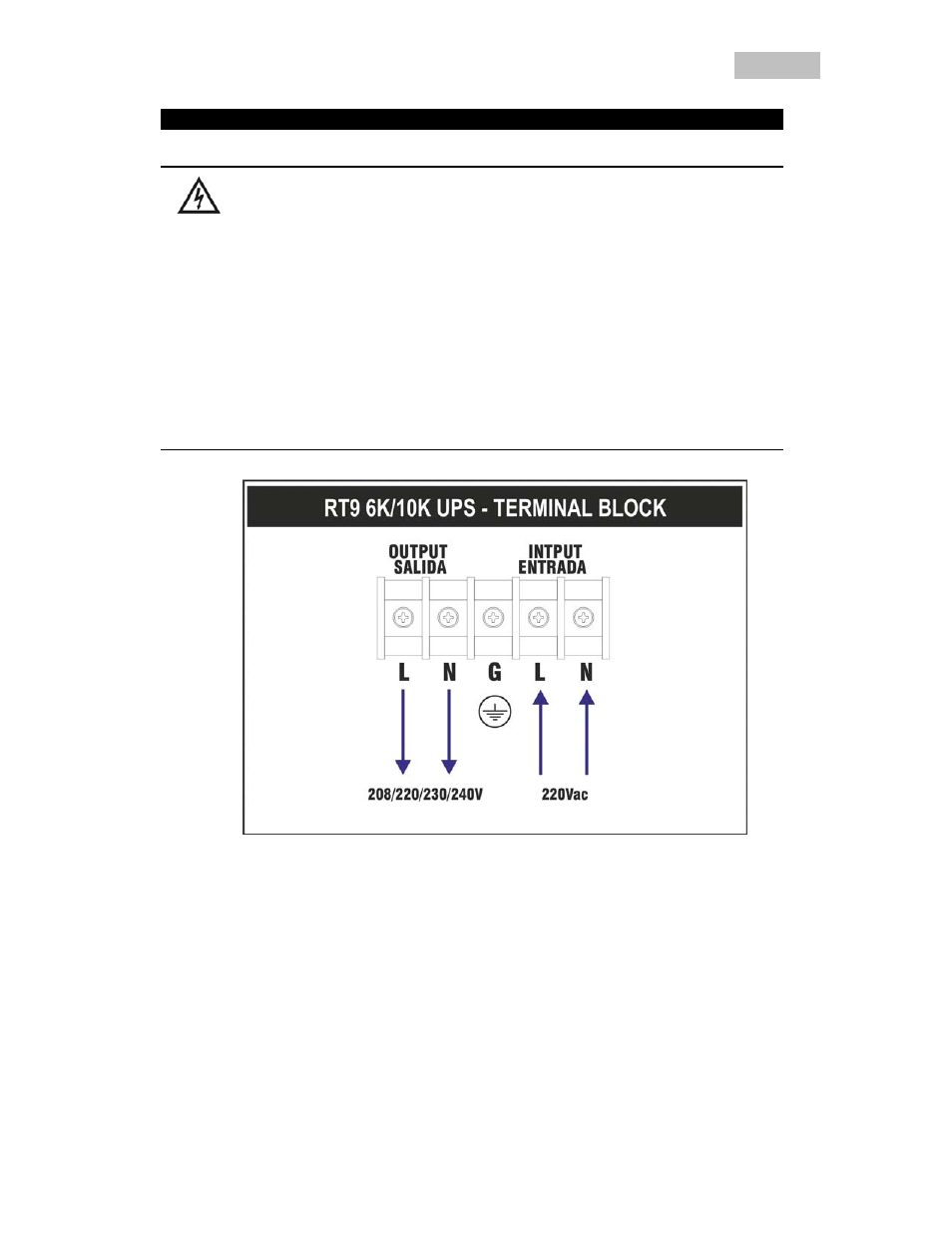

RT9 6-10K TERMINAL BLOCK
