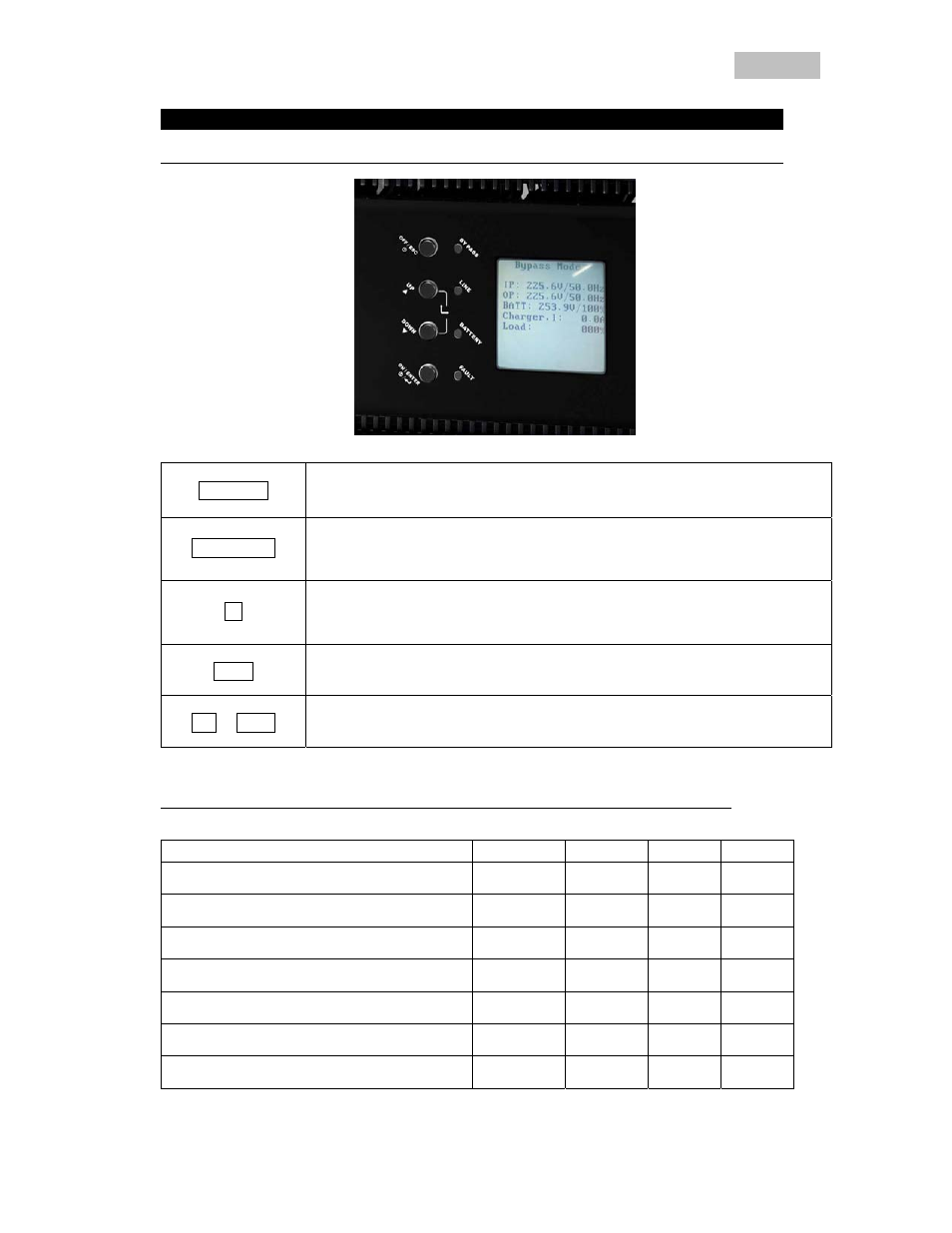

8.- OPERATION INTERFACE
UPS FRONT PANEL: PUSH BUTTON
ON / ENTER
ON : Goes directly to "TURN-ON" menu.
ENTER : It works as or confirmation key for screens options
OFF / ESCAPE
OFF : Goes directly to "TURN-OFF" menu.
ESCAPE : It works as key for screens options.
UP
UP : It works as key when navigating through screens menu.
DOWN
DOWN : It works as key when moving through screens menu.
UP + DOWN
LCD 90º TURNING : Rotates LCD 90º.
UPS FRONT PANEL: LED INDICATOR LIGHTS
There are 4 LED indication lights in front panel, located below LCD. These 4 LEDs describe UPS condition as follow:
MODE Bypass Line Battery Fault
UPS is in Auto-check mode during start-up.
● ● ● ●
BYPASS Mode
● ○ ○ ○
NORMAL Mode
○ ● ○ ○
BATTERY Mode
○ ○ ● ○
BATTERY TEST in progress
○ ● ● ○
ECO Mode Activated
● ● ○ ○
UPS in Failure
○ ○ ○ ●
●
LED = ON /
○
LED = OFF
