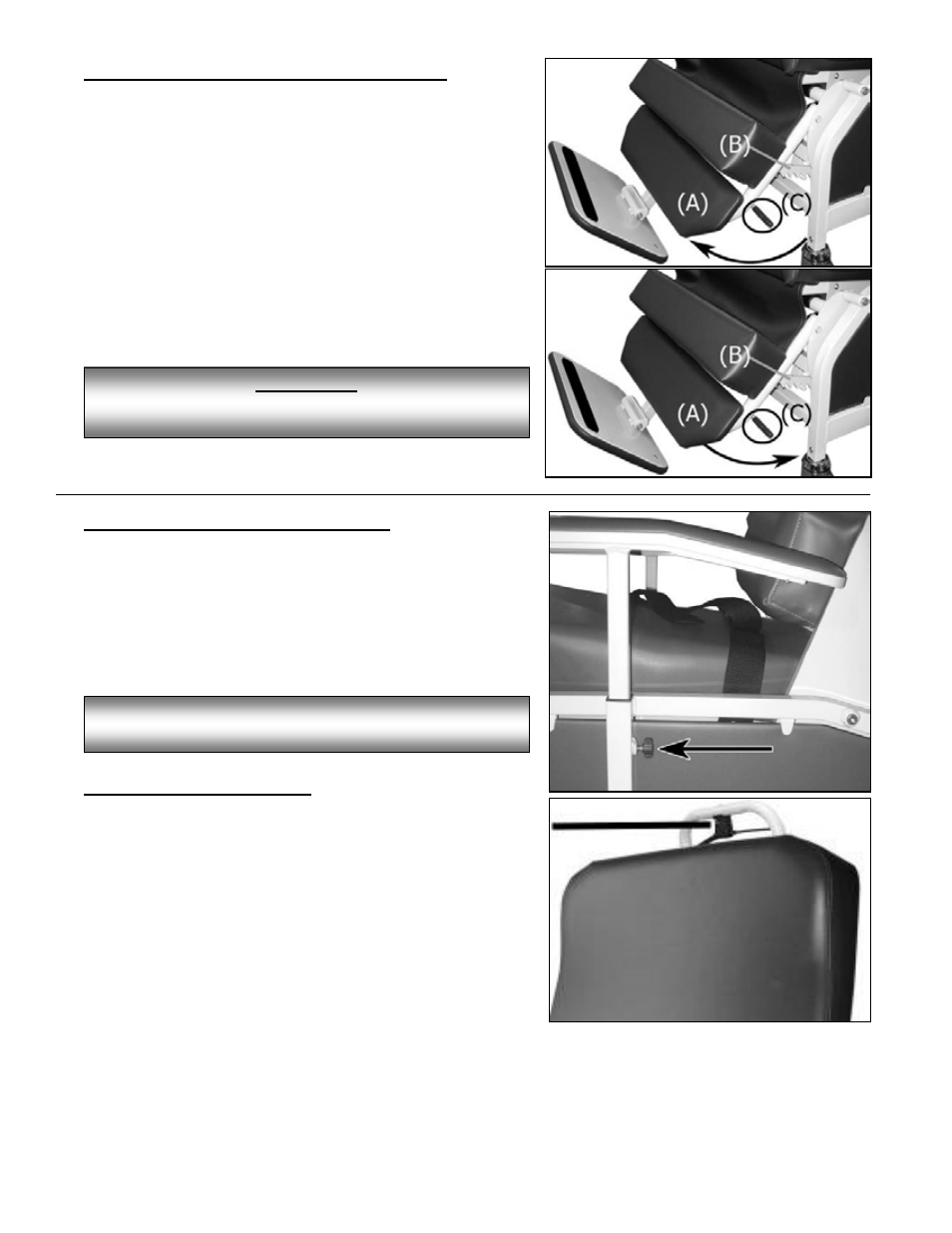

· FIG. 2A-2B: Legrest-Footrest Adjustment
To ELEVATE the leg/foot rest:
●Pull up just behind the legrest pad. (A)
●The ratchet bar (B) will automatically lock into
place.
To RETURN the leg/foot rest to the proper seated
position:
●Slightly lift the legrest pad. (A)
●Push down on the ratchet bar handle (C) and
lower leg/footrest to the desired position.
· FIG. 3: Armrest Height Adjustment
To LOOSEN or TIGHTEN armrest:
●Hold the armrest stable with one hand
●Turn the armrest knob clockwise or counter
clockwise with the other hand to loosen and
tighten.
· FIG. 4: Back Adjustment:
· Squeeze control lever and raise or lower back of recliner.
· Release control lever when desired back position is
achieved.
· Recliner back will stay in desired position when control
lever is released.
FIG 2A
FIG 2B
BE SURE BOTH ARMRESTS HAVE BEEN FULLY
TIGHTENED PRIOR TO PATIENT ENTRY/EXIT.
FIG 3
IMPORTANT
Lower the legrest COMPLETELY before lowering back
to flat transfer position
FIG 3
FIG 4
