Connect the VSK 3000 pressure transducer
via the VACUU•BUS cable to the CVC 3000
controller.
Attention: Do not apply off-axis forces when
assembling or removing plug connections! Ob-
serve correct orientation of the plug. To con-
nect further components use VACUU•BUS Y-
adapters and extension cables.
Connect the pressure transducer via hose or
small flange connection to the vacuum appli-
cation. Do not mount the pressure transducer
directly at the pump but close to the applica-
tion. The cross-section of the tubing should be
as large as possible.
Inside a vacuum system where evaporation occurs, e.g.,
a rotary evaporator, the vacuum is not uniform. For ex-
ample, a condenser can act as a pump, or the vacuum in
the connecting tubing can be higher or lower than in the
application itself. This affects the measurement results as
well as the control levels. Therefore, carefully choose the
position where to connect the pressure transducer.
vacuum
application
(1)
(3)
(2)

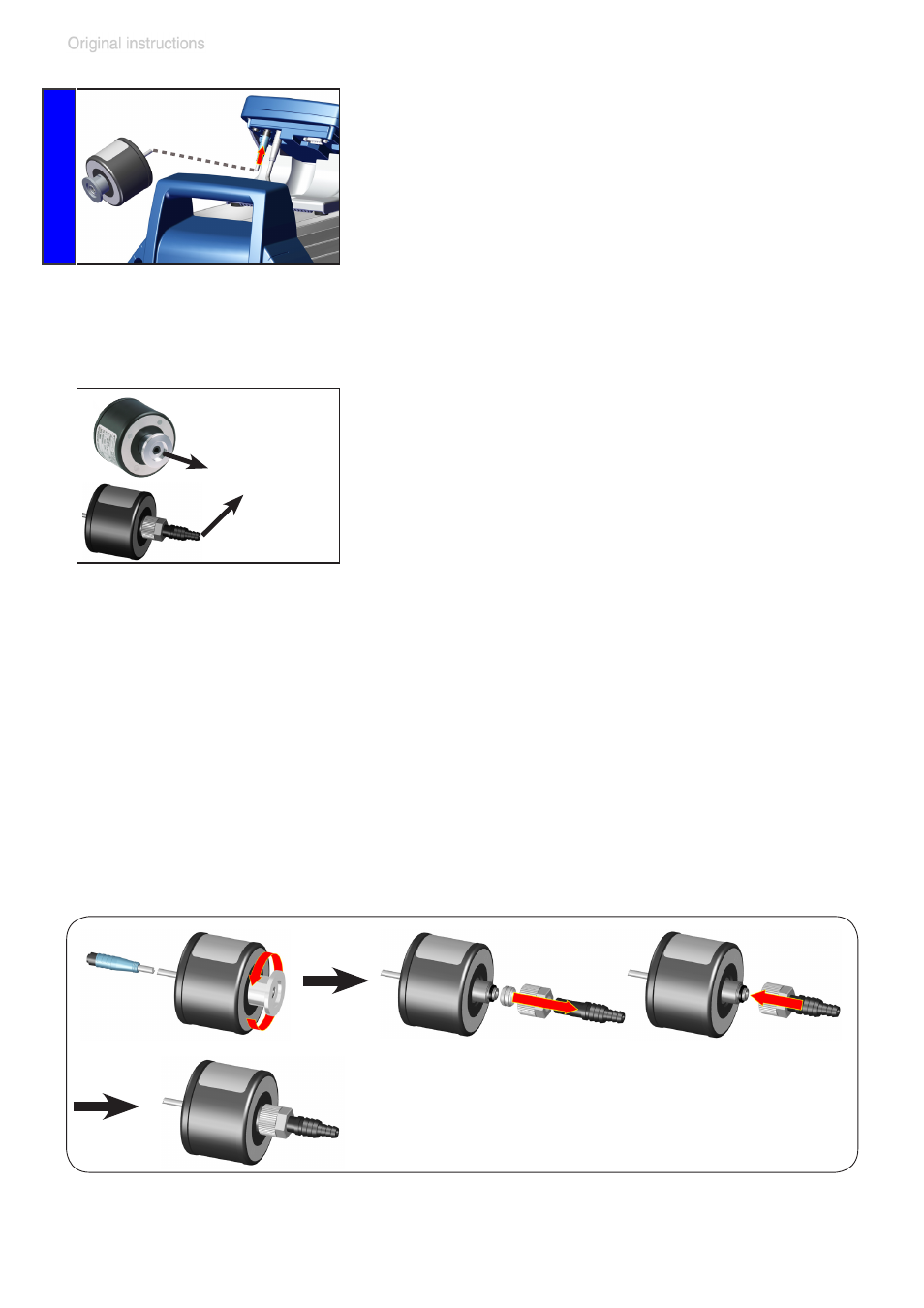

Installing the hose nozzle at the pressure transducer VSK 3000:
NOTICE
