page 32 of 48

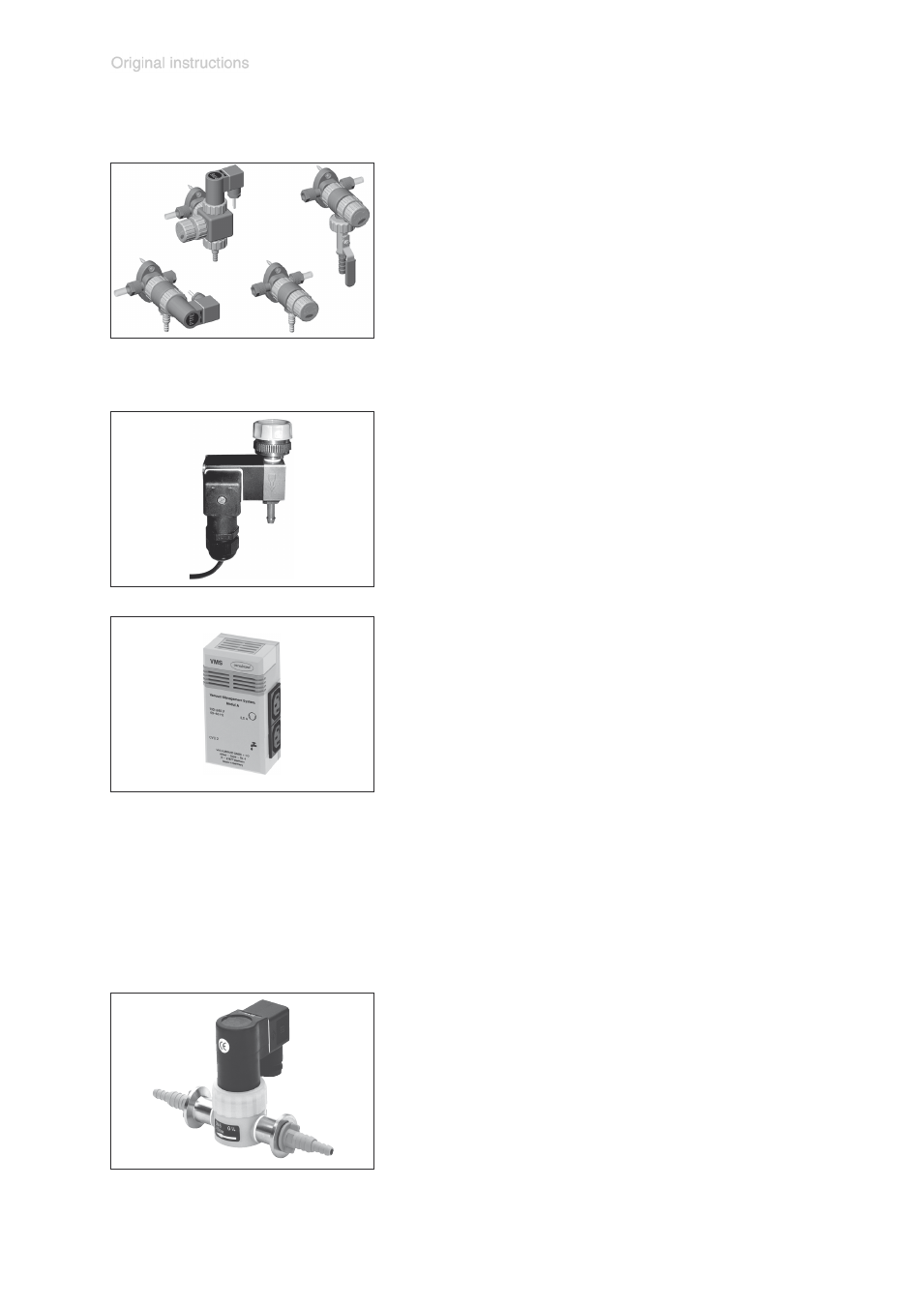

Cooling water minimization
Coolant valve 24 V= ................................................... 676013
-
compact design, designed for a high number of operations
at short intervals
- solenoid systems with splash protection
- conductance optimised for applications with rotary evapora-
tor and exhaust waste vapour condenser
- with integrated Y-connector to connect an in-line valve
Vacuum management
Vacuum management system VMS Module A
(consisting of a connecting cable to the controller, a country
specific adapter cable to hook-up the pump and a mains cable)
VMS Module A CEE .................................................. 676001
VMS Module A UK ..................................................... 676002
VMS Module A US ..................................................... 676004
-
high condensate resistance of the pump, also suitable for
interval operation due to sufficient operation time of the pump
- energy and water consumption are reduced to a minimum
- vacuum control according to requirements - a principle for
work stations for one or multiple users
- Standby for coolant and vacuum
Coolant valve 230 V~, 50-60 Hz ................................. 676010
(for use with the VMS)
Y-socket-plug connector ........................................... 676015
(to connect several components to the pin socket of the CVC
2
II , e. g. for simultaneous operation of in-line valve and VMS)
Accessories of controller
In-line valve VV 6C 24 V= .......................................... 674091
(PVDF/PTFE, small flange NW 16, hose nozzle NW 6/10)
In-line valve VV 6 24 V= ............................................ 674090
(PP/FPM, small flange NW 16, hose nozzle NW 6/10)
In-line valve VV 15C 24 V= ........................................ 674110
(PVDF/PTFE, small flange NW 16)
In-line valve VV 15 24 V= ........................................... 674115
(PVDF/PTFE, small flange NW 25)
Installation and accessories
Vacuum distribution
VACUU•LAN ® manual flow control module
VCL 01 ...................................................................... 677106
VACUU•LAN
® shut off / manual flow control module
VCL 02 ....................................................................... 677107
VACUU•LAN
® automatic control module
VCL 10 ....................................................................... 677108
VACUU•LAN
® manual flow control/
automatic control module VCL 11 ................... ........677109
The VACUU•LAN ® modules allow process orientated, flexible
and cost effective connections according to the requirements:
One vacuum pump for multiple work stations.
On this page we offer only a small selection of VACUU•LAN ® options. Please refer for further information.
VCL 01
VCL 10
VCL 02
VCL 11
