Rear Panel Descriptions
1
Digital
AES/EBU
Input
Accepts
an
AES/EBU
Input
that’s
routed
to
the
AES/EBU
Output
(2)
when
powered
down
or
in
bypass
mode.
If
the
device
is
on
and
AES/EBU
Input
is
desired,
disable
the
AES
Audio
option
in
the
Web
Interface.
2
Digital
AES/EBU
Output
Will
pass-‐thru
the
AES/EBU
Input
(1)
when
powered
down
or
in
bypass
mode.
Outputs
the
Live
HDMI
(10)
source
audio
if
powered
on
and
AES
Audio
enabled
through
web
interface.
3
CMSA/GPIO Automation
A future automation control port. Not currently supported.
4
Power Receptical
Accepts 12 Volt, 1 Amp DC power supply.
5
Network
Connection
Ethernet
port
for
network
control
of
device
from
the
Web
Interface.
TCP/IP
commands
are
accepted
through
port
10001
on
the
Ethernet
interface,
and
Telnet
connections
to
port
23
are
supported
for
live
logging
of
operations
6
Preview S/PDIF Output
Two channel PCM audio or multi-‐channel bitstream audio S/PDIF output of the Preview source.
7
Live S/PDIF Output
Two channel PCM audio or multi-‐channel bitstream audio S/PDIF output of the Live source.
8
Preview/Live
COAX
Output
Two
channel
PCM
audio
or
multi-‐channel
S/PDIF
over
COAX
output
of
the
Preview
source.
(Preview/Live
toggle
support
not
currently
supported)
9
Preview HDMI Output
HDMI output of the currently selected Preview source
10
Live HDMI Output
HDMI output of the currently selected Live source
11-‐14 HMDI Source Input
Additional HDMI 1.4b compliant connector for input source

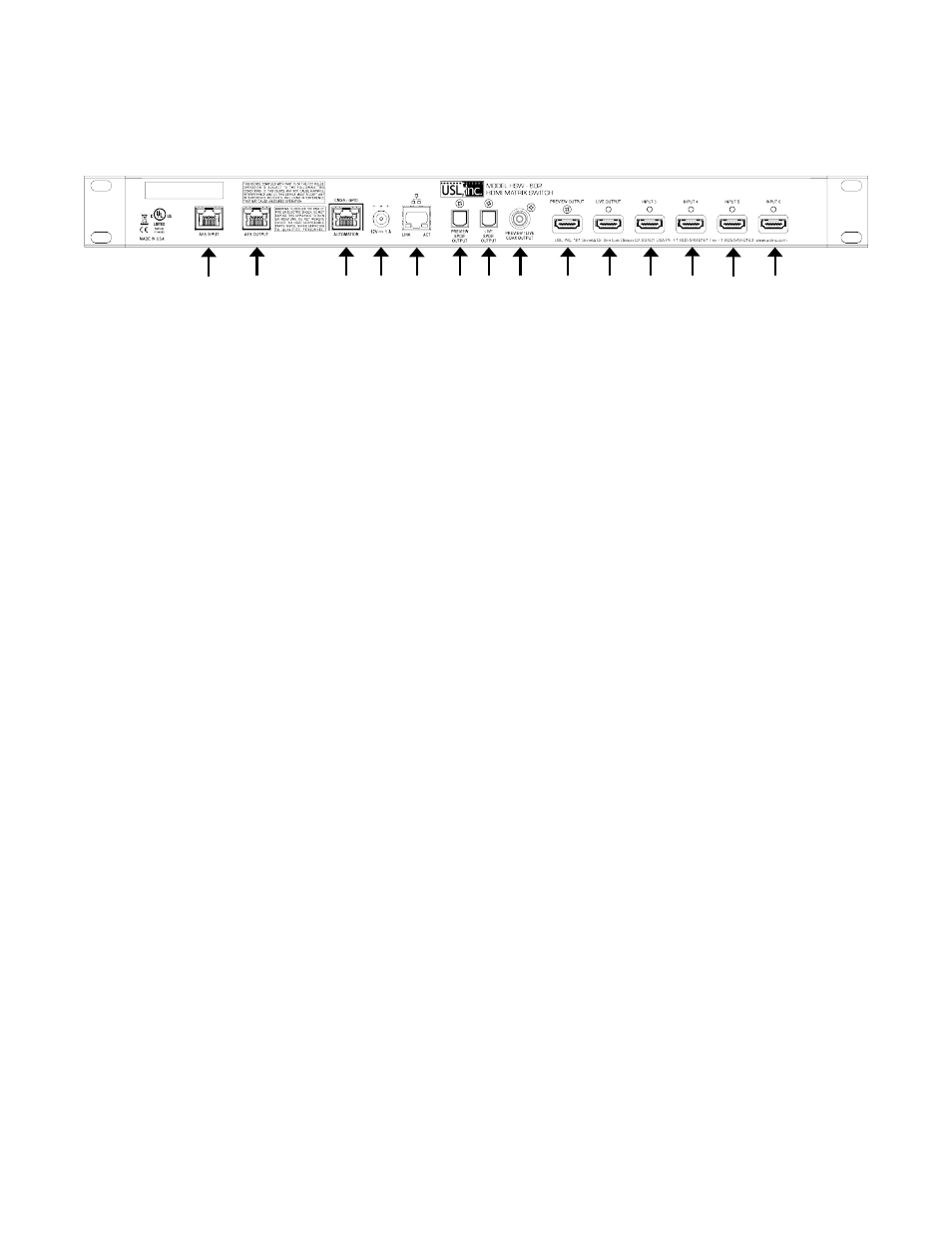

F
IGURE
2
-‐
HSW
-‐
602
R
EAR
P
ANEL
1
2
3
4
5
6 7 8
9
10
11 12 13 14
