Twin City Ceiling / Wall-Mount Ventilators - T Series - Manual (Page 14)

MODELS
T400 • T500 • T700
Page 4
1
2
3
5
26
16
17
15 15
8
6
9
27
18
7
17
16
19
20
21
22
23
24
25
14
10
11
12
13
29
28
5
5
12
2
14
30
4
14
5
14

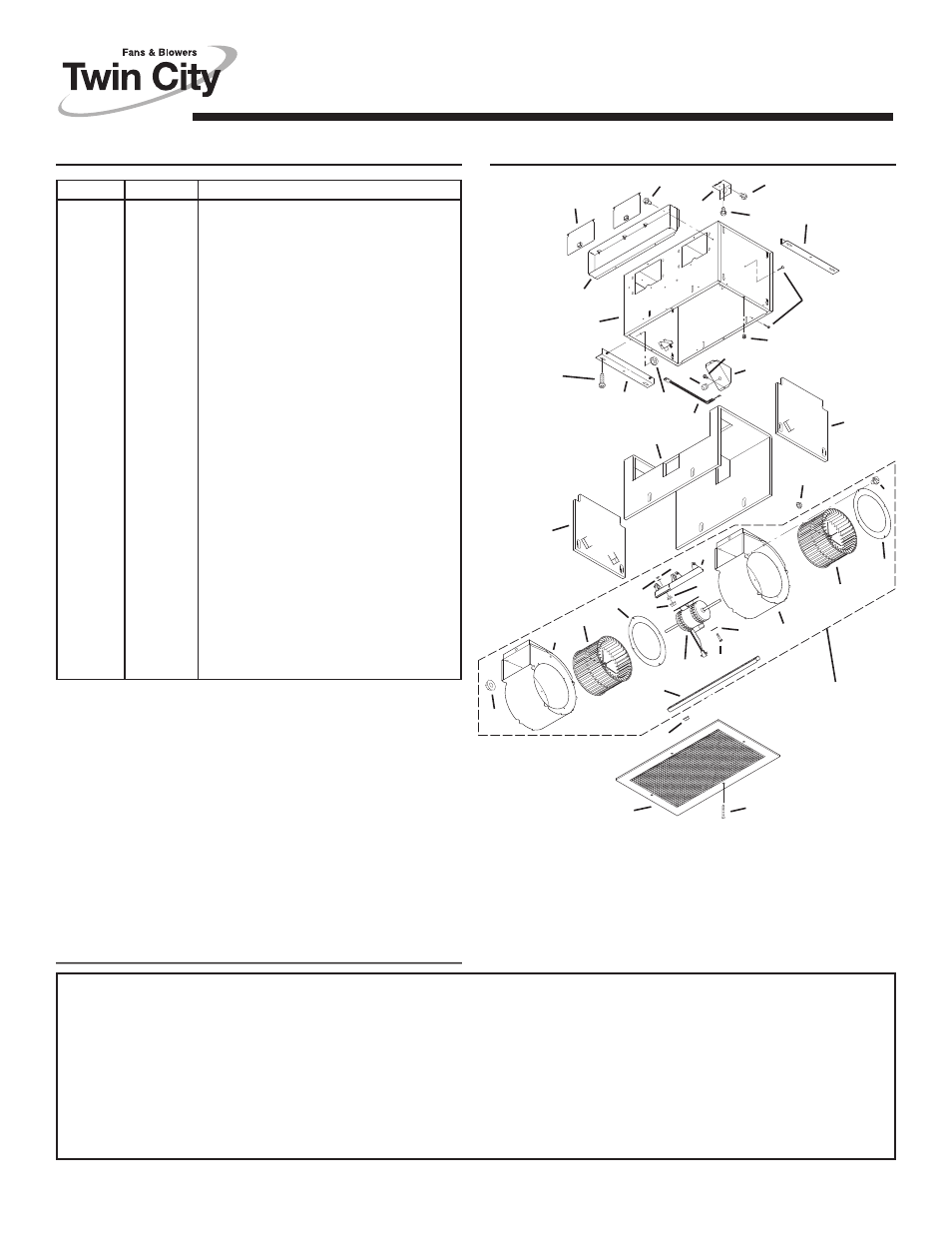

SERVICE PARTS SERVICE PARTS
KEY NO. PART NO. DESCRIPTION
1 97014744 Housing Assembly
2 97014728 Mounting Bracket (2 req.)
3 98009449 Duct Connector
4 97014822 Damper Flap Assembly (2 req.)
5 99150415 Screw, 8-18 x ¼ (18 req.)*
6 98005512 Wiring Plate
7 99150471 Ground Screw, 10-32 x ½ (2 req.)
8 98005513 Wire Box Cover
9 99400035 Strain Relief Bushing
10 97006039 Wire Harness
11 99500392 Wrapper Insulation
12 99500391 Side Insulation (2 req.)
13 99420466 Insulation Mounting Clip (6 req.)
14 99260477 Nut, ¼-20 (12 req.)*
15 97014745 Scroll Assembly (2 req.)
16 99110805 Blower Wheel (2 req.)
17 98009399 Inlet Ring (2 req.)
18 99080486 Motor (T400)
99080487 Motor (T500)
99080488 Motor (T700)
19 97014794 Motor Mounting Bracket
20 99100497 Rubber Isolator (4 req.)
21 99160380 Screw, 10-24 x 7/8 (4 req.)*
22 99250399 Washer (4 req.)*
23 99260306 Nut, Hex 10-24 (4 req.)*
24 99250254 Washer (4 req.)*
25 93260456 Nut, Hex Flange 3/8-16
26 98009461 Scroll Mounting Channel
--- ------------- Blower Assembly, Complete
(Includes Key Nos. 5 & 14-26)
97014817 (T400)
97014819 (T500)
97014821 (T700)
27 98009463 Grille
28 99420470 Grille Nut (4 req.)
29 99150472 Grille Mounting Screw (4 req.)
30 99150591 Screw, 10-16 x 7/8 (4 req.)
Order replacement parts by PART NO. - not by KEY NO.
* Standard hardware - may be purchased locally.
99042951A
BLOWER
ASSEMBLY
WARRANTY
Limitation of Warranties and Claims
Seller warrants to the original purchaser that the goods sold hereunder shall be free from defects in workmanship and material under normal use and service (except in those cases where the materials are supplied
by the buyer) for a period of one year from the date of original installation or eighteen (18) months from the date of shipment, whichever occurs first. The liability of seller under this warranty is limited to replacing, repairing,
or issuing credit (at cost, F.O.B. factory and at seller’s discretion) for any part or parts which are returned by buyer during such period provided that:
a. seller is notified in writing within ten (10) days following discovery of such defects by buyer, or within ten (10) days after such defects should reasonably have been discovered, whichever is less;
b. the defective unit is returned to seller, transportation charges prepaid by buyer.
c. payment in full has been received by seller or said products; and
d. seller’s examination of such unit shall disclose to its satisfaction that such defects have not been caused by misuse, neglect, improper installation, repair, alteration, act of God, or accident.
No warranty made hereunder shall extend to any seller product whose serial number is altered, effaced or removed. Seller makes no warranty, express or implied, with respect to motors, switches, controls, or other
components of seller’s product, where such components are warranted separately by their respective manufacturers. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, WHETHER STATUTORY OR OTHERWISE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. In no event shall seller be liable to buyer
for indirect, incidental collateral, or consequential damages of any kind. (BUYER’S FAILURE TO PAY THE FULL AMOUNT DUE WITHIN SIXTY (60) DAYS OF DATE OF INVOICE SHALL OPERATE TO RELEASE
SELLER FROM ANY AND ALL LIABILITY OR OBLIGATION ARISING PURSUANT TO ANY WARRANTY, EXPRESS OR IMPLIED, WHETHER STATUTORY OR OTHERWISE, INCLUDING ANY IMPLIED
WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, MADE IN CONNECTION WITH ANY CONTRACT FORMED HEREUNDER. BUYER AGREES THAT SUCH FAILURE
TO PAY SHALL CONSTITUTE A VOLUNTARY WAIVER OF ANY AND ALL SUCH WARRANTIES ARISING PURSUANT TO SUCH CONTACT.)
TWIN CITY FAN & BLOWER, 5959 Trenton Lane, Minneapolis, MN 55442
