MODELS • T100 • T150
T200 • T250 • T300
Page 4

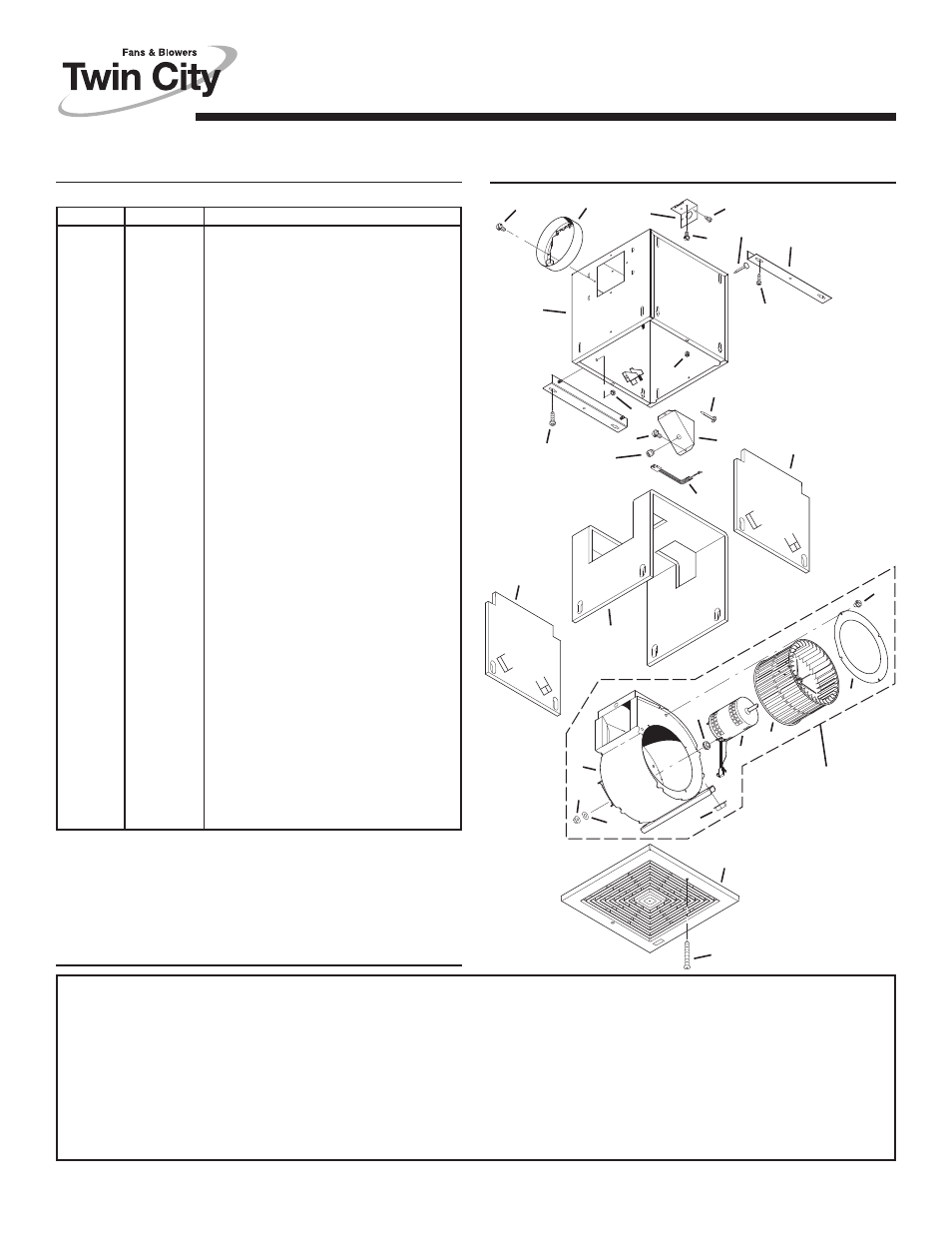

SERVICE PARTS
KEY NO. PART NO. DESCRIPTION
1 97014725 Housing Assembly (T100 & T150)
97014726 Housing Assembly (T200,
T250, & T300)
2 97014728 Mounting Bracket (2 req.)
3 97014760 Damper Assembly (6” dia.)
97014761 Damper Assembly (8” dia.)
4 99150415 Screw, 8-18 x ¼ (12 req.)*
5 98005513 Wire Box Cover
6 99400035 Strain Relief Bushing
7 98005512 Wiring Plate
8 99150471 Ground Screw, 10-32 x ½ (2 req.)
9 97014774 Scroll Assembly (T100 & T150)
97014775 Scroll Assembly (T200, T250, &
T300)
10 98009399 Inlet Ring
11 99110805 Blower Wheel
12 99080481 Motor (T100)
99080482 Motor (T150)
99080483 Motor (T200)
99080484 Motor (T250)
99080485 Motor (T300)
13 99260558 Lock Nut, 8-32 (4 req.)*
14 99250959 Washer (4 req.)*
15 99100491 Grommet (4 req.)
Blower Assembly, Complete
(Includes Key Nos. 4 & 9-15)
97014800 (T100)
97014801 (T150)
97014802 (T200)
97014803 (T250)
97014804 (T300)
16 99260477 Nut, ¼-20 (6 req.)*
17 97006039 Wire Harness
18 99500390 Wrapper Insulation
19 99500391 Side Insulation (2 req.)
20 99420466 Insulation Mounting Clip
21 99110807 Grille
22 99420470 Grille Nut (2 req.)
23 99150472 Grille Mounting Screw (2 req.)
24 99150591 Screw, 10-16 x 7/8 (4 req.)*
Order replacement parts by PART NO. - not by KEY NO.
* Standard hardware - may be purchased locally.
SERVICE PARTS
1
2
3 4
5
6
7
8
9
10
11
12
13
14
17
18
19
19
20
20
21
23
24
16
15
4
25
25
16
4
4
BLOWER
ASSEMBLY
99042948A
