Step 8 – Hood End Panel
Fasteners (Kit #4A)
Install Female End Panel Assembly using #12 screws. Fully tighten the Hood Mount Bar/Side Rail fasteners from
Step 5.
End Panel Assembly
-Female-
Figure 10.
Step 9 – Screen Clips
Rotate Screen Clips on End Panel Assembly to support the bird screen.
Screen Clip
#12 Screw
Figure 11.

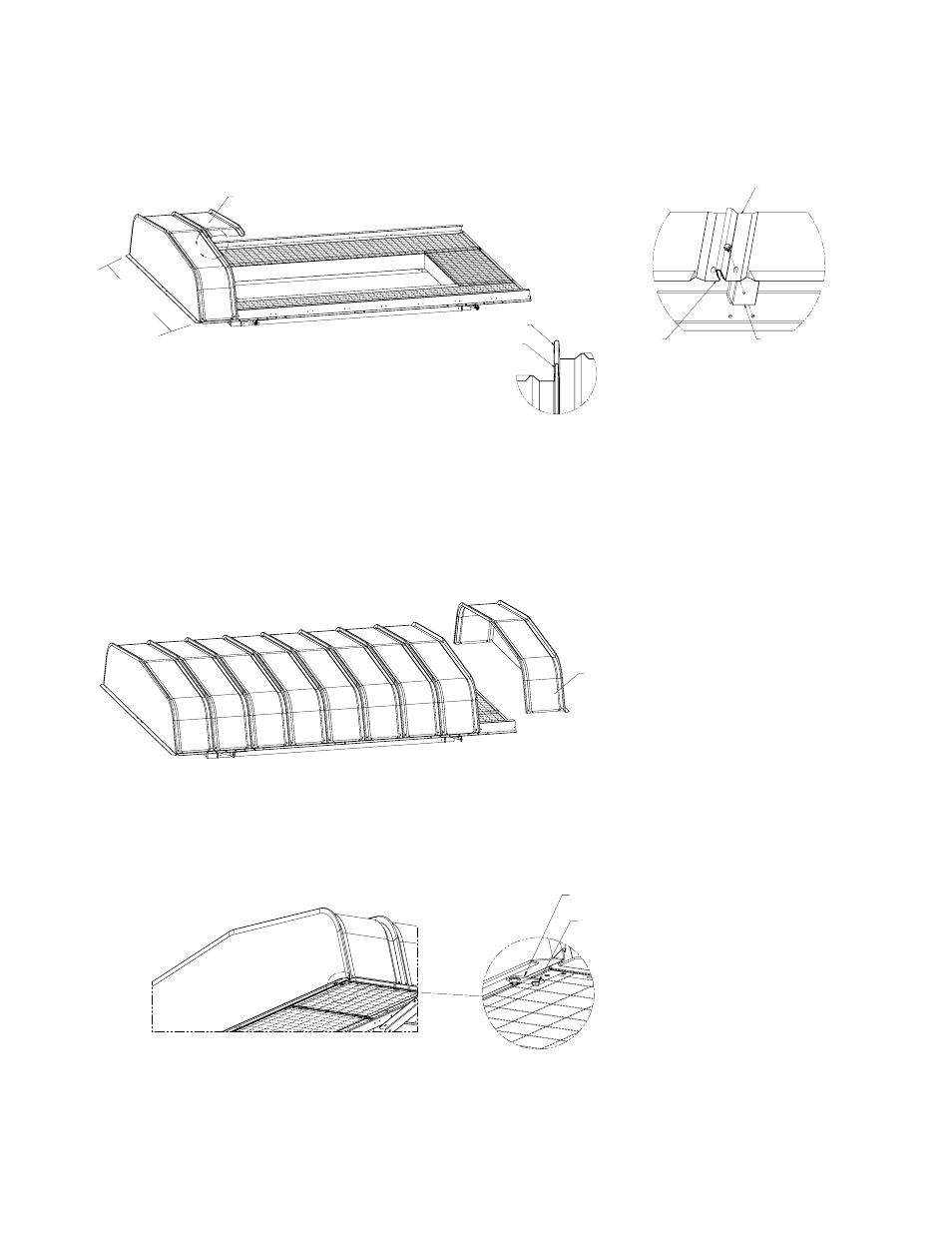

Step 7 – Hood Panels
Fasteners (Kit #4A and #5)
Install Hood Panels using #12 screws. Place female end of next panel over male end of end panel. See Detail A.
On sizes where hood width is 108" and larger, hood clips must be installed at each interlocking rib while installing
the panels. Position the Hood Panel in place and reach underneath to slide the Hood Clip into place. See Detail B.
A
Hood Panel
Hood
Width
Figure 9.
Male
Female
DETAIL A
Hood Clip
Female
Male
NOTE: Use Hood Clips on Hood Panels 108" and wider.
DETAIL B
