3 Twin City IM-4720NFS

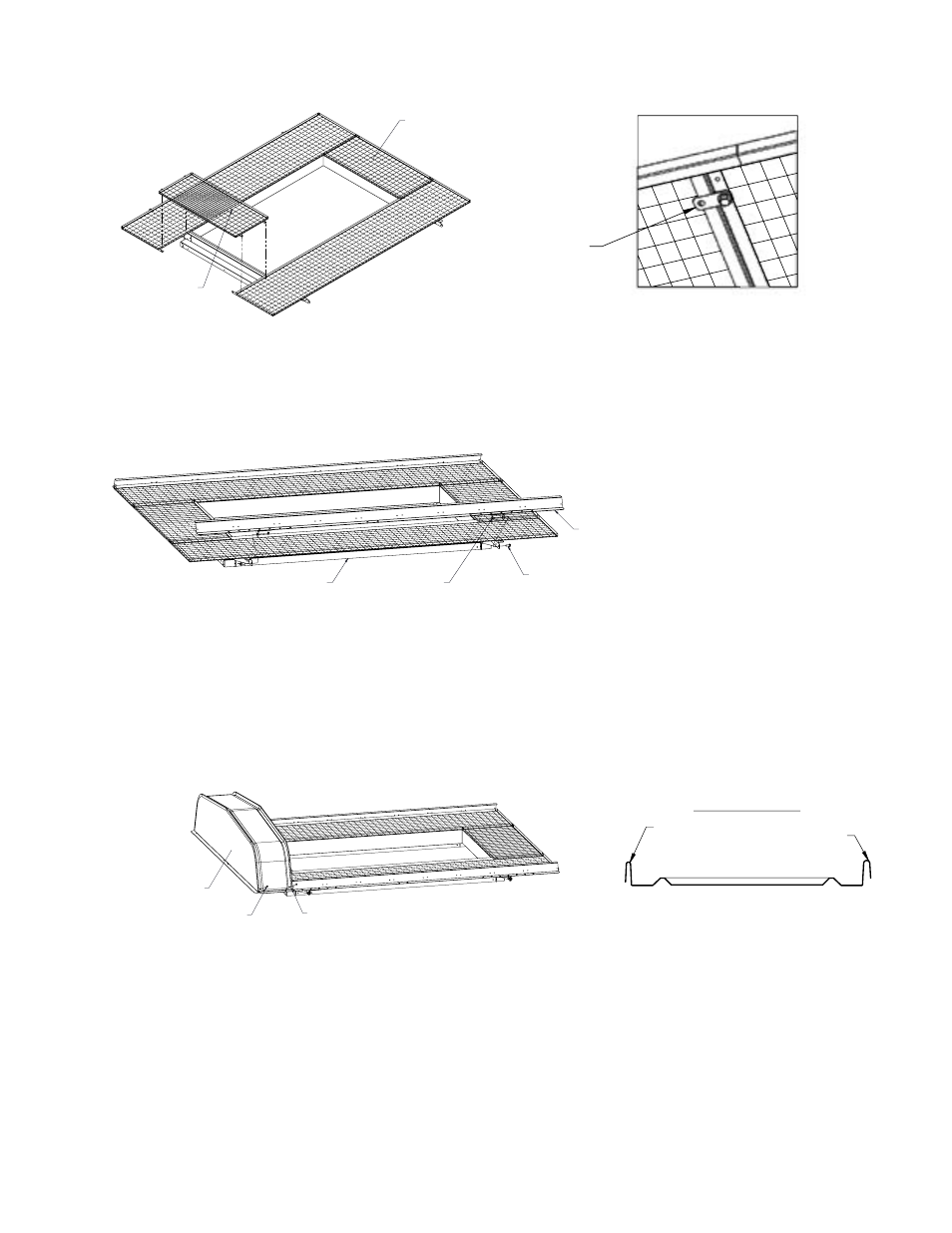

Step 4 – Birdscreen (Continued)
Install two Removable Birdscreens. After positioning the assemblies, rotate the locking tabs in place and tighten.
Locking Tab,
rotate into place
and tighten
Step 5 – Hood Rails
Fasteners (Kit #3) – Note: There may be extra fasteners.
Install two Hood Rail Assemblies to the Hood Mount Bars using cap screws and nuts. Do not fully tighten fasteners.
They will be tightened in Step 8.
Hood Rail Assembly
Screw,
Serrated Flange
Hex Nut,
Flanged Head
Base Assembly
Figure 6.
Step 6 – Hood End Panel
Fasteners (Kit #4A and #5) – Note: There may be extra fasteners.
Install Male End Panel Assembly using #12 screws. End Panel Assy,
Male
IMPORTANT - This flange must
be male. Refer to the detail below.
Male Flange
(Narrow)
Female Flange
(Wide)
End View of Panel
Figure 8.
Detail of locking tabs
Removable
Birdscreen
Removable
Birdscreen
Figure 5.
Sheet metal Screw
End Panel Assembly
-Male-
IMPORTANT - This flange must be
male. Refer to Figure 8.
Figure 7.
