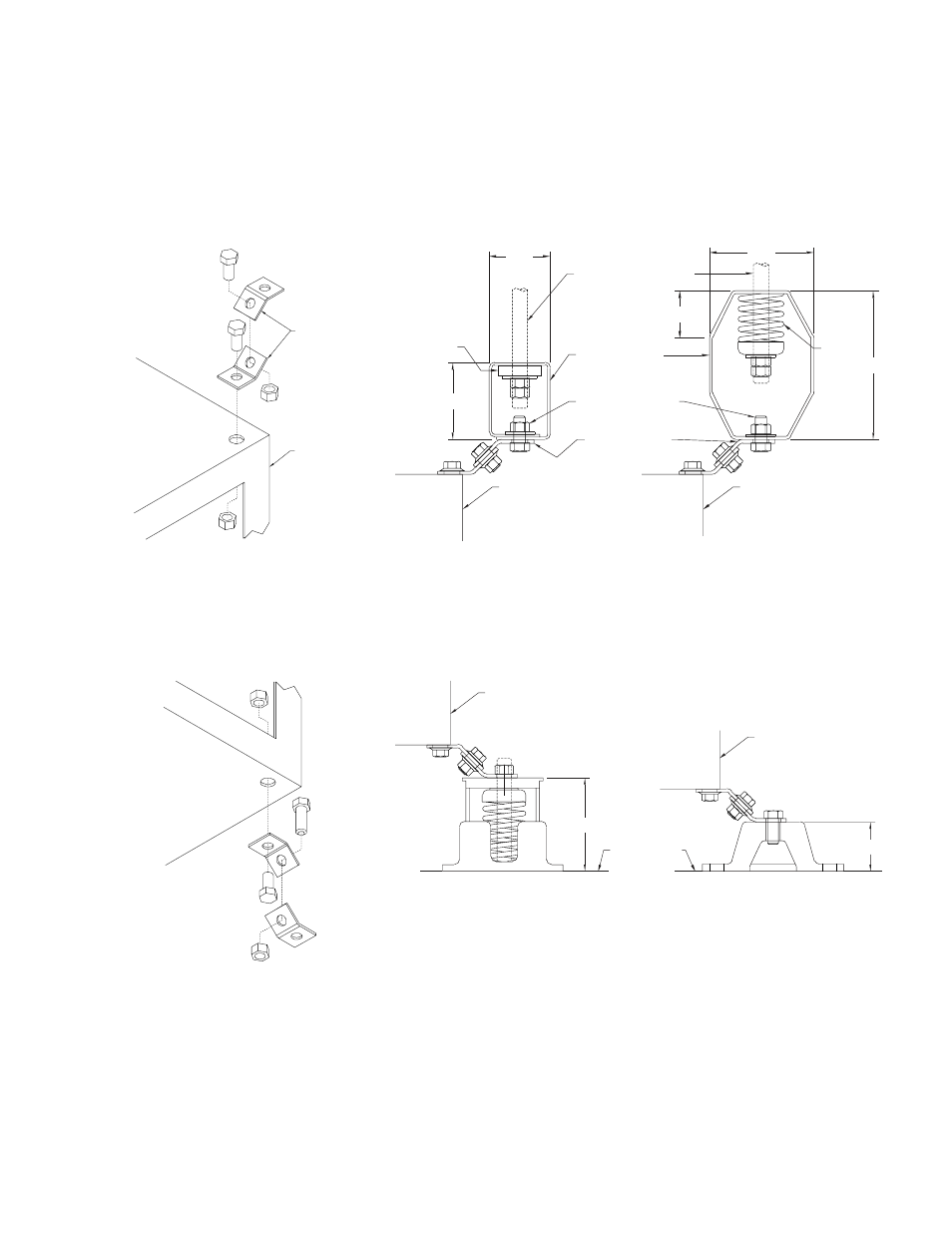

Mounting Brackets
Models DBS and DBT can be hung from above or mounted on the floor. Typical dimensions (G and H) for the
mounting brackets that are supplied with these units are shown on page 6. The 9 ⁄
16
" holes in these brackets can
readily be used for installing the units.
Floor Mounting
Overhead Mounting
HANGER ROD, NUTS &
WASHERS (BY INSTALLER)
HANGER HOUSING
BOLT, NUTS &
WASHERS (INCLUDED)
HANGER BRACKET
DBS/DBT UNIT
NEOPRENE
ISOLATOR
2.72
2.15
5.25
3.69
3.00
DBS/DBT UNIT
SPRING
ISOLATOR
HANGER BRACKET
DBS/DBT UNIT
DBS/DBT UNIT
FINISHED FLOOR
DBS/DBT UNIT
3.50
1.50
