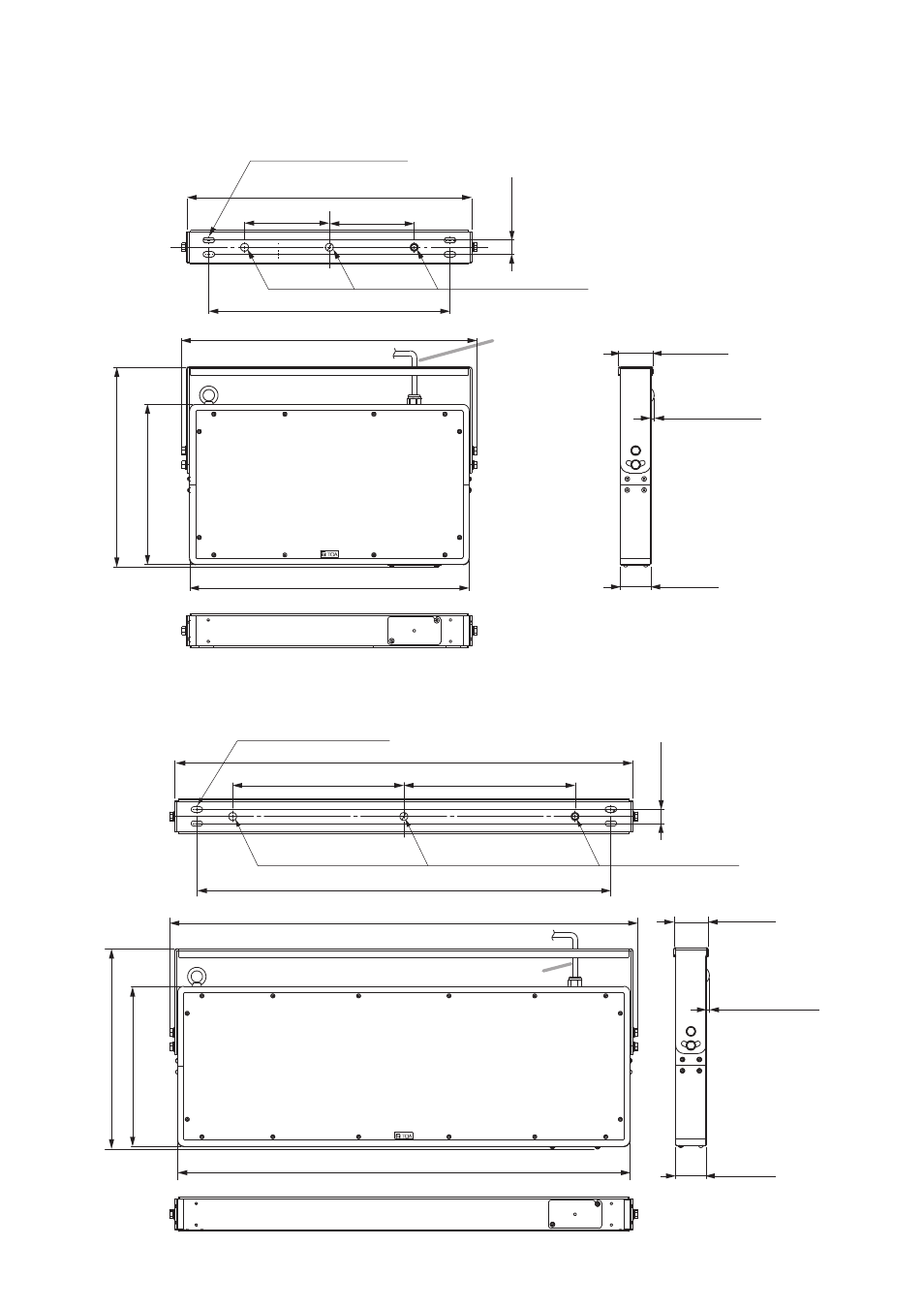

4. DIMeNSIONAL DIAGRAM
4.1. Pw-1230DB, Pw-1230Dw, Pw-1230SB, and Pw-1230Sw
4.2. Pw-1430DB, Pw-1430Dw, Pw-1430SB, and Pw-1430Sw
505
(19.88)
151 (5.94) 151 (5.94)
428 (16.85)
524 (20.63)
496 (19.53)
60 (2.36)
54 (2.13)
355 (13.98) 284 (1
1.18)
25 (0.98)
* Dimension when the eyebolt
is maximally projected
MAX. 6 (0.24)*
4-9 × 20 (4-0.35 x 0.79)
3-ш14 (3-ш0.55)
(Cable entry holes)
(Hole for installation)
Speaker lead
(2 m or 6.56 ft)
[Top]
[Front]
[Bottom]
[Side]
304 (11.97) 304 (11.97)
831 (32.72)
735 (28.94)
812
(31.97)
355 (13.98) 284 (1
1.18)
25 (0.98)
803 (31.61) 54 (2.13)
60 (2.36)
MAX. 6 (0.24)*
* Dimension when
the eyebolt is
maximally projected
4-9 × 20 (4 -0.35 x 0.79)
3-ш14 (3-ш0.55)
(Cable entry holes)
(Hole for installation)
[Top]
[Front]
[Bottom]
[Side]
Speaker lead (2 m or 6.56 ft)
Unit: mm (in)
Unit: mm (in)
