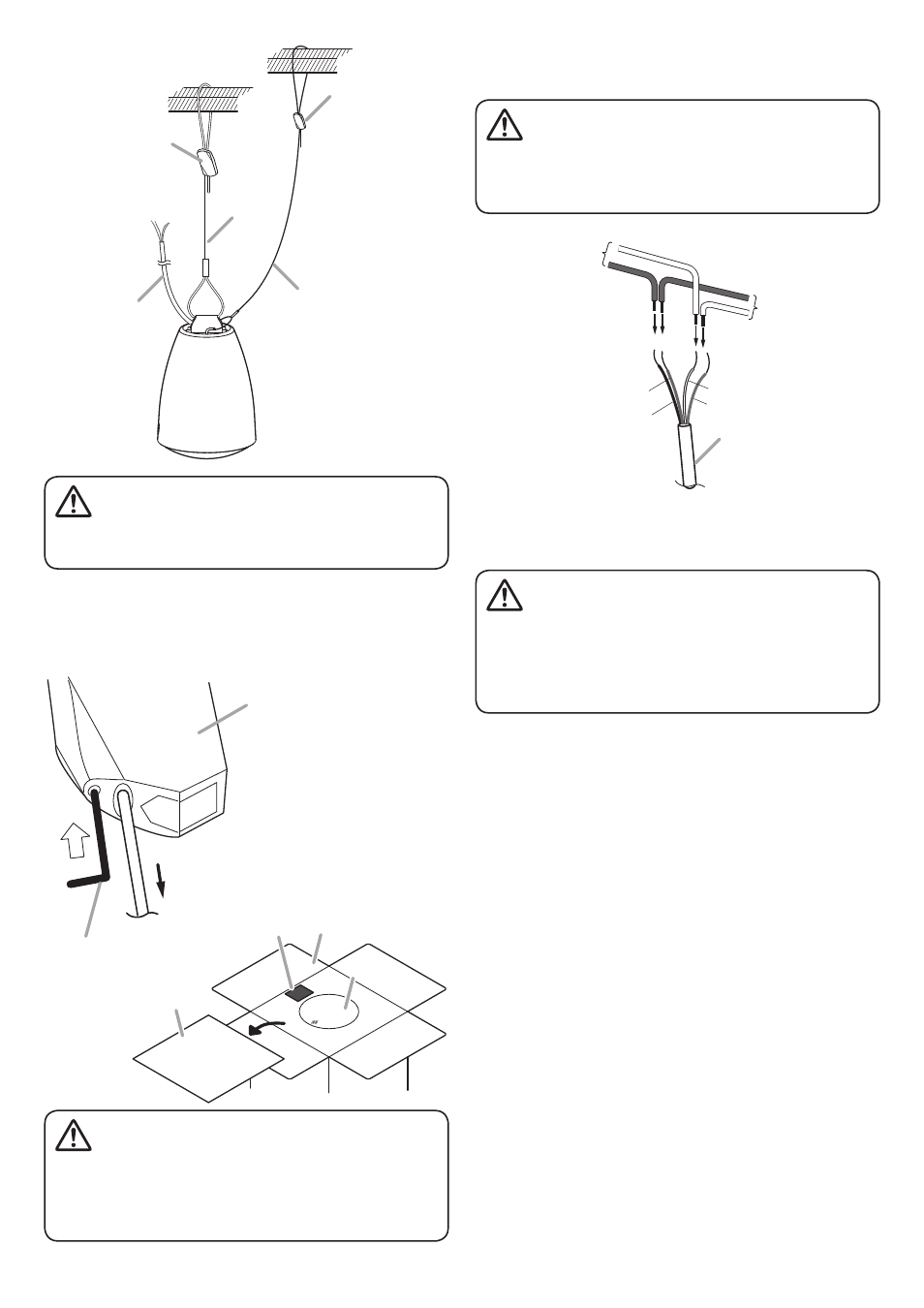

[How to move the wire in the reverse direction]

Move the hanging or safety wire in the reverse direction while

inserting the release key fully into the smaller hole in the

GRIPPLE

®

No. 1 or No. 2.

Avoid touching the unit’s sharp metal edge, and the cut

ends of hanging and safety wires to prevent injury.

CAUTION

Firmly hold the speaker body when using the release

key.

Failure to do so may cause the speaker to fall, resulting

in possibly personal injury.

CAUTION

GRIPPLE

®

No. 1 or No. 2

Release key

(accessory)

Safety wire

Speaker cable

(accessory,

prewired)

GRIPPLE

®

No. 1

GRIPPLE

®

No. 2

Hanging wire

3

4

Step 5. Connect the lead-in and lead-out cables to the speaker

cable as shown below using a proper connection tool.

To conform with UL 1480 UUMW/ULC-S541, requirements for

fire alarm signaling speaker, field wires must be connected as

shown above.

And, installation must comply with all National and Local

Building Codes, also NFPA guidelines or CAN/ULC-S524.

CAUTION

Never hang the speaker with the speaker cable.

Failure to do so may cause the speaker to fall, resulting

in possibly personal injury.

CAUTION

Speaker cable

To the next speaker

From the amplifier

Green (–)

White (–)

Red (+)

Black (+)

Note

Follow the cable color coding when connecting the

cables.

Notes

• Push the release key with a force

of 10 N or less.

• The release key is located as

shown below.

Cardboard sheet

Carton box

Speaker

Release key

(accessory)
