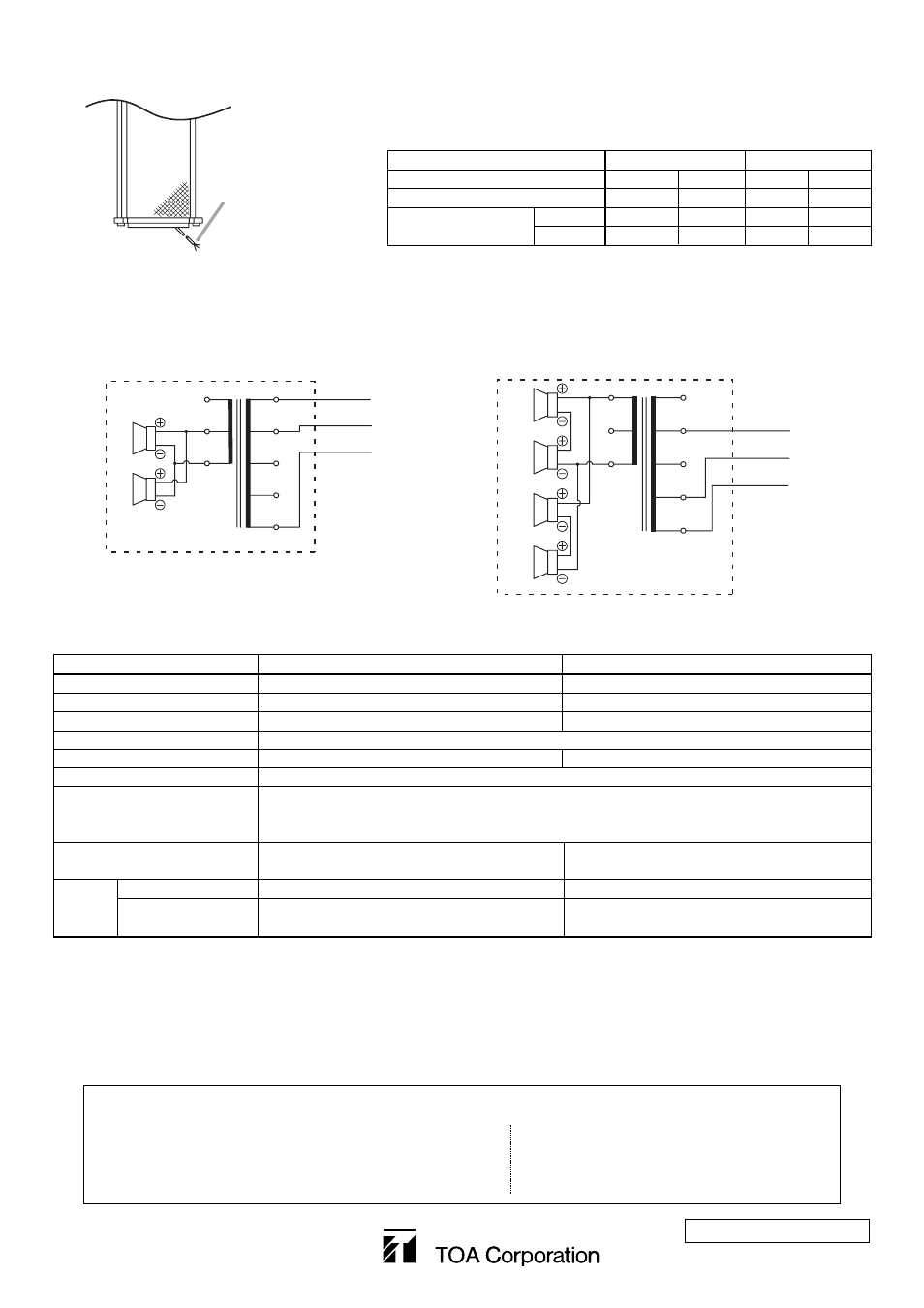

7. SPECIFICATIONS
5. SPEAKER CORD COLOR CODING
Model No. TZ-105 TZ-205
Rated input 10 W 5 W 20 W 10 W
Impedance 1 kΩ 2 kΩ 500 Ω 1 kΩ
Cord color coding HOT Black Blue Black Blue
COM White White White White
Mounting bracket ................................................ 2
Mounting gasket ................................................. 2 Hexagon bolt M8 x 15......................................... 2
Plain washer (for M8).......................................... 2
Speaker cord
For connections,
refer to the table at right.
Note: The design and specifications are subject to change without notice for improvement.
• Accessories
533-06-016-2C
URL: http://www.toa.jp/
Model No. TZ-105 TZ-205
Rated Input 10 W (Max. 15 W) 20 W (Max. 30 W)
Rated Impedance 100 V line: 1 kΩ (10 W), 2 kΩ (5 W) 100 V line: 500 Ω (20 W), 1 kΩ (10 W)
Sound Pressure Level 90 dB (1 W, 1 m) 93 dB (1 W, 1 m)
Frequency Response 150 Hz – 10 kHz
Speaker Component 12 cm (5") cone-type x 2 12 cm (5") cone-type x 4
Water Resistance IP-X3 equivalent
Finish Enclosure: Extruded aluminum, silver gray, fully-glazed, baked paint
Grille: Punched aluminum net, black, matte, baked paint
Mounting bracket: Steel plate, silver gray, fully-glazed, baked paint
Dimensions 167 (w) x 335 (h) x 141 (d) mm 167 (w) x 580 (h) x 141 (d) mm
(6.57" x 13.19" x 5.55") (6.57" x 22.83" x 5.55")
Weight Speaker only 3.4 kg (7.5 lb) 5.1 kg (11.24 lb)
Including mounting 4 kg (8.82 lb) 5.7 kg (12.57 lb)
bracket
6. WIRING DIAGRAM
8 Ω
4 Ω
8 Ω
8 Ω
COM
500 Ω
670 Ω
1 kΩ
2 kΩ Blue
Black
White
5 W
10 W
COM
[TZ-105]
8 Ω
8 Ω
8 Ω
8 Ω
8 Ω
4 Ω
2 kΩ
1 kΩ
670 Ω
500 Ω
COM
10 W
20 W
COM
Blue
Black
White
[TZ-205]
Traceability Information for Europe (EMC directive 2004/108/EC)
Manufacturer:
TOA Corporation
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
