INSTRUCTION MANUAL
COLUMN SPEAKERS TZ-105, TZ-205
The TZ-105 and TZ-205 are column speakers with built-in
identical cone speakers (2 for TZ-105, 4 for TZ-205) vertically
arranged on the baffle boards. They present sound pressure
characteristics in an extremely narrow angle in a vertical plane
and in a wide angle in a horizontal plane.

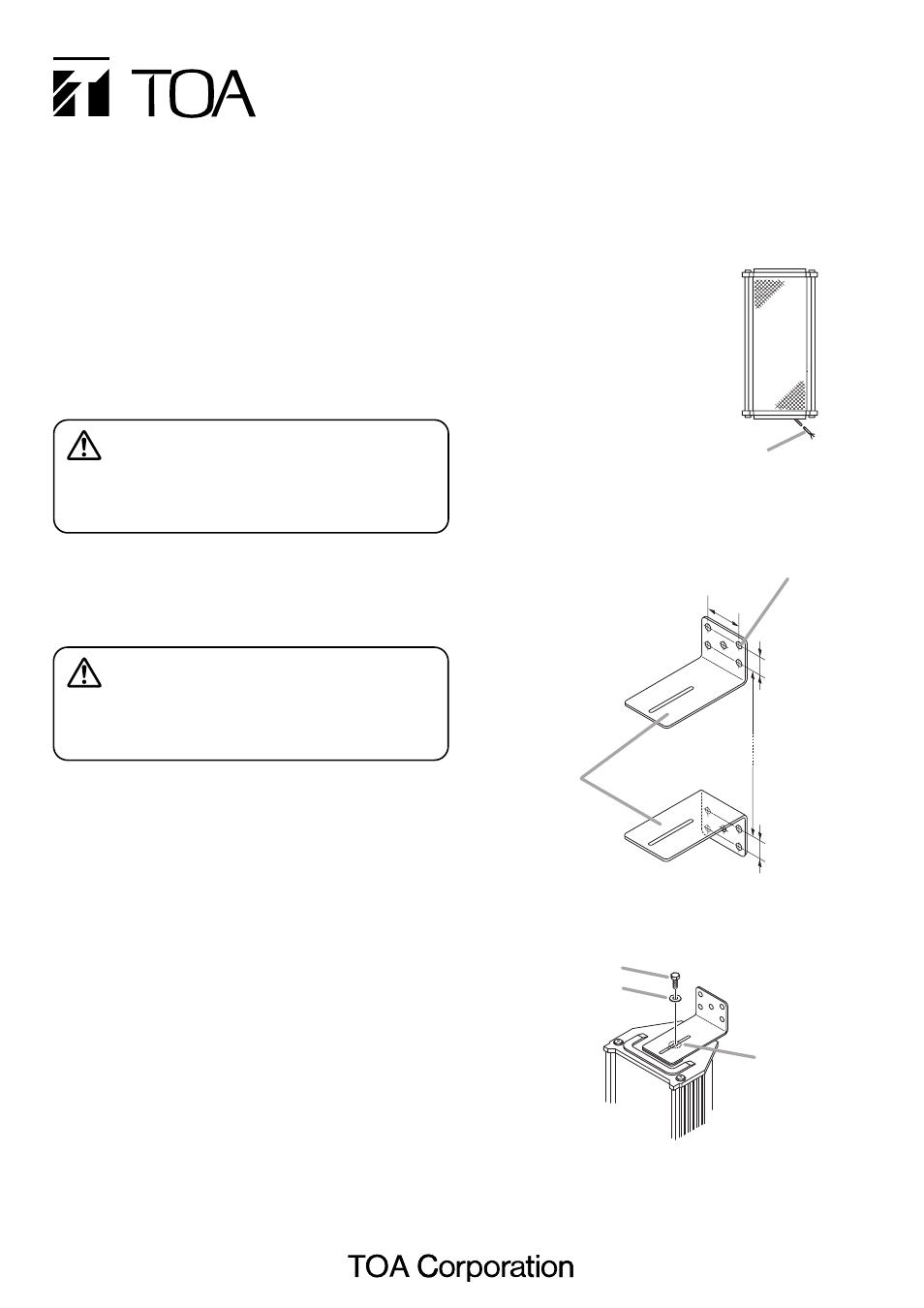

Speaker cord
(This figure shows the TZ-105.)
25 (0.98")
25(0.98")
ø9 (0.35") holes
390 (15.35") (TZ-105)
635 (25") (TZ-205)
50 (1.97")
Mounting bracket
(accessory)
4. INSTALLATION
Plain washer (for M8)
Mounting gasket
Hexagon bolt M8 x 15
WARNING
Indicates a potentially hazardous situation which, if
mishandled, could result in death or serious personal
injury.
CAUTION
Indicates a potentially hazardous situation which, if
mishandled, could result in moderate or minor
personal injury, and/or property damage.
• Install the speaker only in a location that can structurally
support the weight of the speaker and the mounting
bracket. Doing otherwise may result in the unit falling
down and causing personal injury and/or property
damage.
• Do not place heavy objects on the speaker as this may
cause it to fall or break which may result in personal
injury and/or property damage. In addition, the object
itself may fall off and cause injury and/or damage.
• Do not stand or sit on, nor hang down from the speaker
as this may cause it to fall down or drop, resulting in
personal injury and/or property damage.
• Do not operate the speaker for an extended period of
time with the sound distorting. Doing so may cause the
connected speakers to heat, resulting in a fire.
1. SAFETY PRECAUTIONS
• Be sure to read the instructions in this section carefully before
use.
• Make sure to observe the instructions in this manual as the
conventions of safety symbols and messages regarded as
very important precautions are included.
• We also recommend you keep this instruction manual handy
for future reference.
2. FEATURES
3. INSTALLATION PRECAUTIONS
Step 2. Using the supplied hexagon bolt, washer, and
mounting gasket, fix the speaker to the top bracket.
Step 1. Mount the supplied top and bottom mounting brackets
to the mounting surface
.
Step 3. Similarly, fix the speaker to the bottom bracket.
Note
When adjusting the speaker angle, use the optional YS-301
Speaker mounting kit.
Thank you for purchasing TOA's COLUMN SPEAKER.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
Note
No hardware has been provided
for installation of the mounting
brackets. Therefore, please
prepare the necessary nuts, bolts
and washers before beginning
installation.
This column speaker features a drain
hole built into same panel that holds
the speaker cord. For proper
drainage, during installation please
ensure that this panel faces down
toward the ground.
