133-01-00034-00
7. SPECIFICATIONS
Model No.
HY-PF7B
HY-PF7W
Finish
Steel plate, black, semi-gloss, paint
Steel plate, white, semi-gloss, paint
Dimensions
645 (w) x 50 (h) x 472 (d) mm (25.39" x 1.97" x 18.58") (excluding projection)
Weight
4 kg (8.82 lb)
Accessory
Subwoofer fixing bracket ... 4, Hex head bolt M8 x 40 with washer ... 8, Nut for M8 ... 4,
Plain washer for M8 ... 4
Note: The design and specifications are subject to change without notice for improvement.

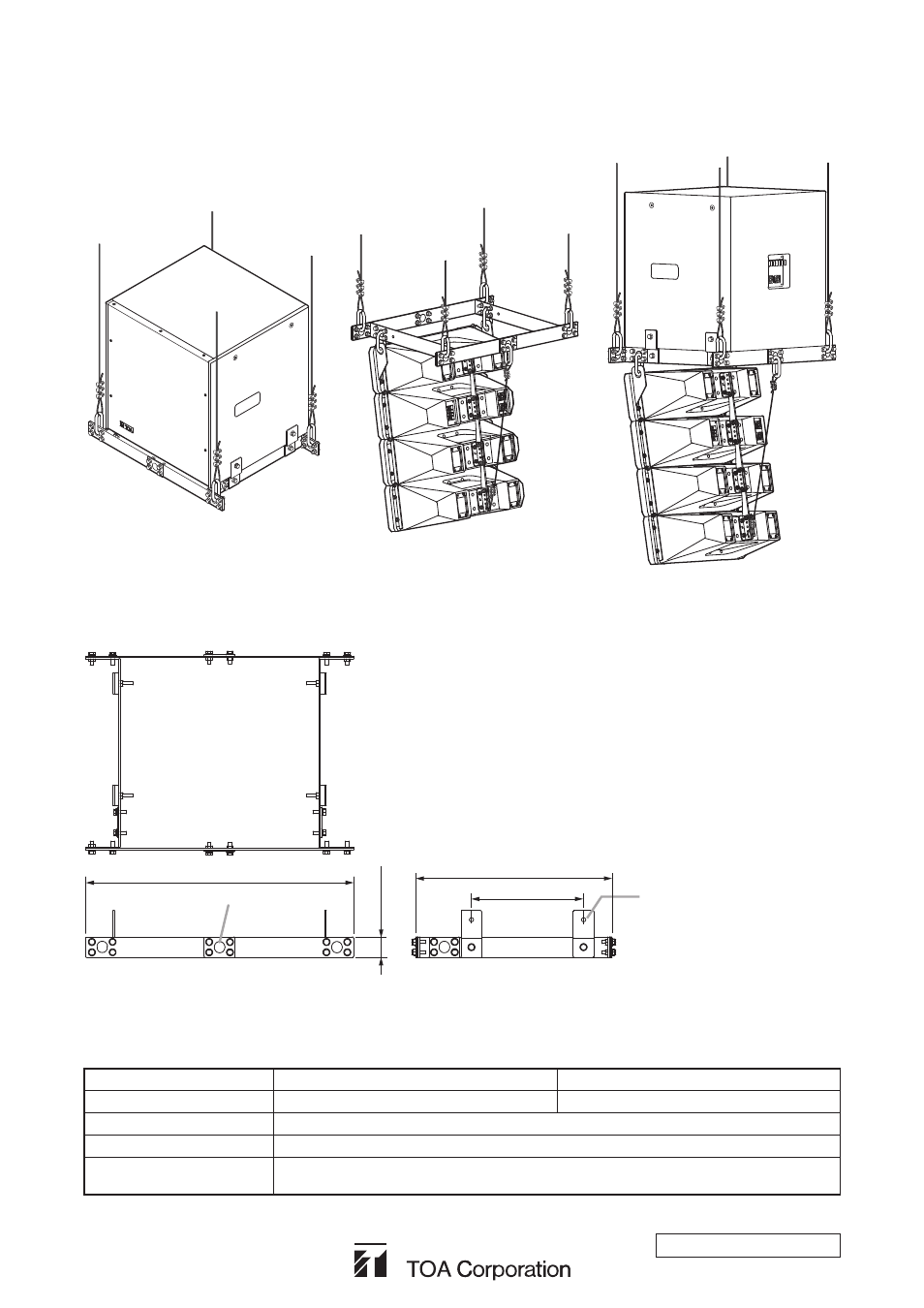

5. SUSPENSION EXAMPLES
[When suspending only Subwoofer
system]
[When suspending only Speaker
system]
[When suspending Subwoofer
and Speaker systems]
6. DIMENSIONAL DIAGRAM
Subwoofer fixing bracket
(accessory)
645 (25.39")
472 (18.58")
270 (10.63")
50 (1.97")
Suspension hole 27 x 25 (1.06" x 0.98")
(8 positions)
Unit: mm
Note
The holes to use for suspension differ depending on the way of speaker
suspension.
