Owing to the speaker’s size and weight, be sure that at least two persons
are available to install the Speaker rigging frame.
Failure to do so could result in personal injury.
WARNING
4. SUSPENDING HX-7B OR HX-7W
Attach the suspension brackets supplied with each of HX-7B and HX-7W speakers, setting the directivity angle mode to the
desired mode in advance. When suspending two HX-7B or HX-7W speakers, connect them in advance using the HY-CN7
Series Speaker connection bracket (optional).
Note
Refer to the instruction manual supplied with the HX-7 Series speaker for suspension bracket mounting method and
directivity angle mode modifications, and to the HY-CN7 Series installation manual for speaker connections.
Up to two HX-7B or HX-7W speakers can be suspended together. Only vertical suspension is possible.
Note
When installing the speakers together with TOA’s FB-150B or FB-150W Subwoofer system, first perform the operations
explained on the previous page.
Step 1. Using the HX-7B’s or HX-7W’s suspension and rear brackets, suspend the HX-7B or HX-7W at 3 points of the
rigging frame.
Step 2. Suspend the speaker/rigging frame assembly from the ceiling using chains or wires and carabiners attached to
the rigging frame in 4 places.
Note
To suspend the Speaker rigging frame and HX-7B or HX-7W speaker(s), be sure to use chains, wires, or carabiners,
which should be prepared separately.

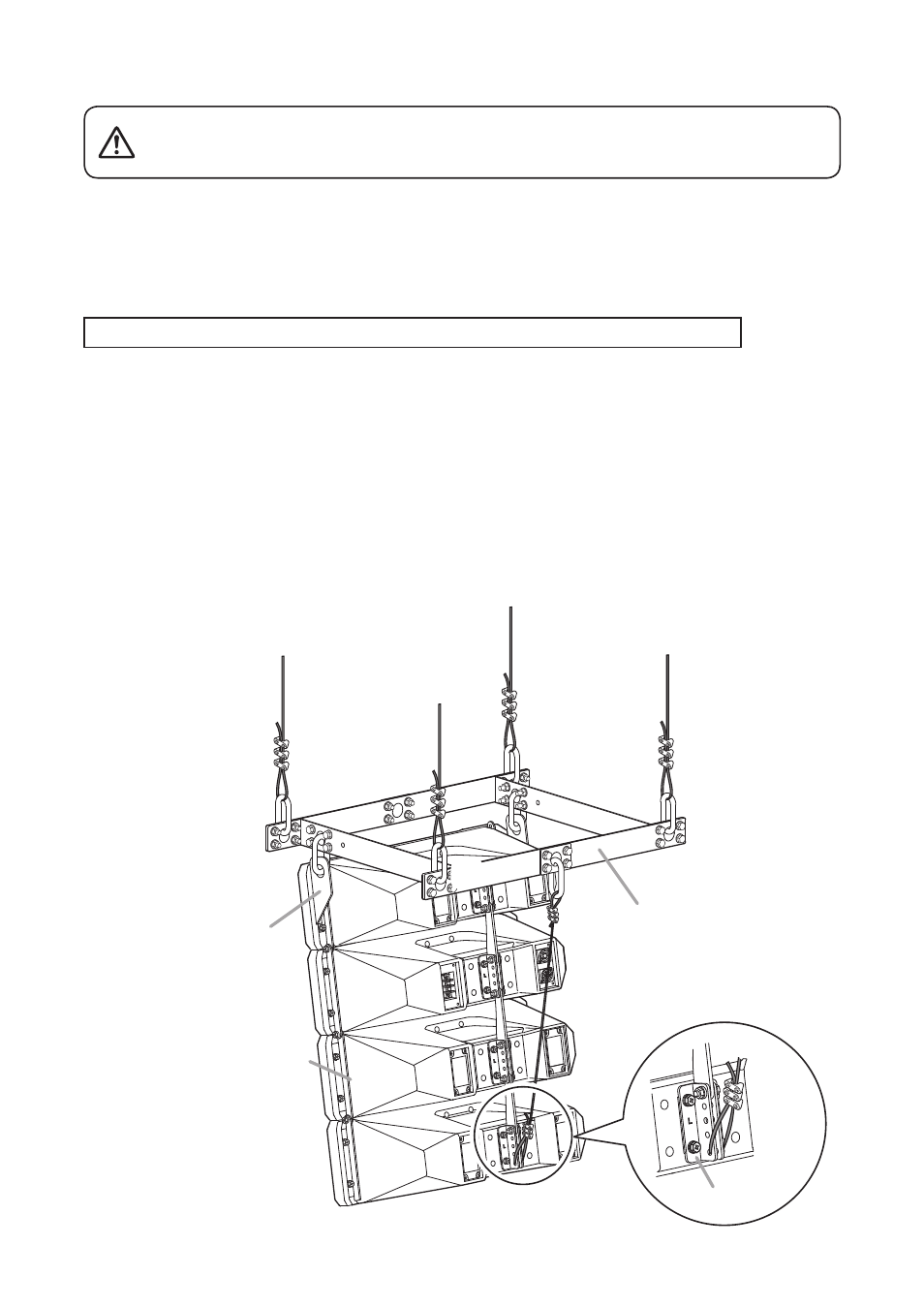

HY-PF7B or HY-PF7W
(suspended at 4 points)
HX-7B or HX-7W
(suspended at 3 points)
Suspension bracket
(supplied with HX-7B or HX-7W)
2
1
1
1
2
2
2
Rear bracket
1
