• Avoid touching the front punched net's sharp metal
edge to prevent injury.
• To avoid electric shocks, be sure to switch off the
amplifier's power when connecting the speaker.
• Do not place heavy objects on the speaker as this
may cause it to fall or break which may result in
personal injury and/or property damage. In addition,
the object itself may fall off and cause injury and/or
damage.
• Do not operate the speaker for an extended
period of time with the sound distorting. This is an
indication of a malfunction, which in turn can cause
heat to generate and result in a fire.
• Do not stand or sit on, nor hang down from the
speaker as this may cause it to fall down or drop,
resulting in personal injury and/or property damage.
• Have the speaker checked periodically by the shop
from where it was purchased. Failure to do so may
result in corrosion or damage to the speaker or its
mounting bracket that could cause the speaker to
fall, possibly causing personal injury.
2. GENERAL DESCRIPTION
The FB-150B and FB-150W are compact, indoor-use subwoofer systems, each employing a high-power 38 cm (15") woofer.
They are designed for use in conjunction with TOA's HX-7 Series Speaker System or other full range speakers, and are
particularly ideal for reproducing dynamic low-frequency sound.
The FB-150B and FB-150W can be suspended by wires or chains with use of an optional HY-PF7B or HY-PF7W Speaker
Rigging Frame.

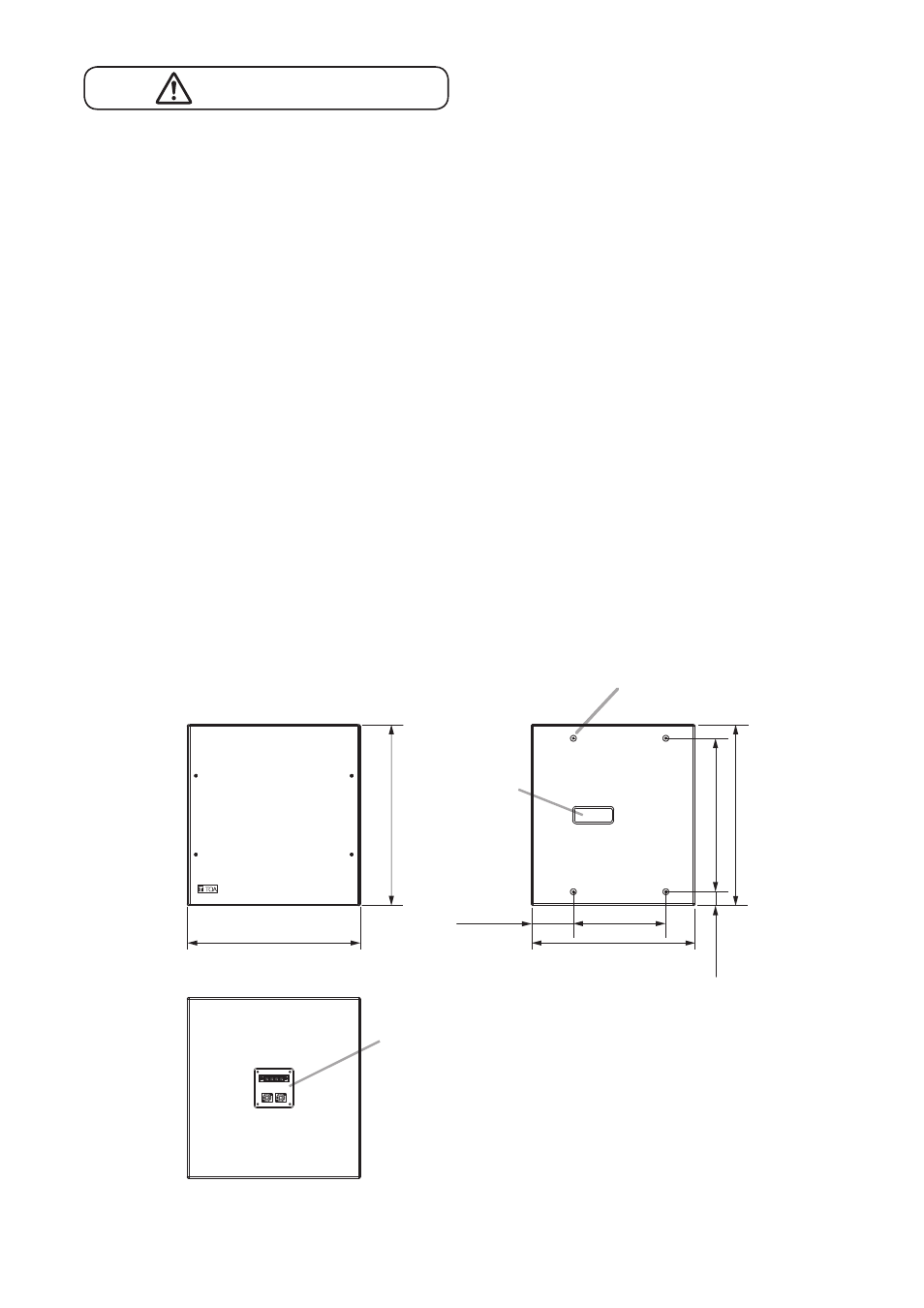

3. DImENSIONAL DIAGRAm
505 (19.88")
528 (20.79
")
122 (4.8") 270 (10.63")
40 (1.57
")
448
(17.64
")
528
(20.79
")
477 (18.78")
[Front] [Side]
[Rear]
Screw M8 x 25 (8 positions)
Unit: mm
Input connectors
Handle
CAUTION
