18
Connect a RJ45 connector to both ends of the Cat. 5 STP cable and make the following connections:
9. CABLE CONNECTIONS TO rJ45 CONNECTOrS
[Source to Connect] [Source to be Connected to]
Component Connector Name Component Connector Name
VX-2000 DATA LINK VX-2000SF DATA LINK
VX-2000 AUDIO LINK OUT VX-2000SF AUDIO LINK IN
VX-2000SF AUDIO LINK OUT Next VX-2000SF AUDIO LINK IN
VX-2000SF DATA LINK Next VX-2000SF DATA LINK
VX-2000SF STANDBY PA LINK VP-200VX/VP-3000 series PA LINK
VX-2000SF DS-SF LINK 1, 2 VX-2000DS/3000DS DS-SF LINK/DS- LINK IN
VX-200SP PA LINK VP-200VX/VP-3000 series PA LINK
VX-200SZ PA LINK VP-200VX/VP-3000 series PA LINK
VX-200SP-2 PA LINK VP-200VX/VP-3000 series PA LINK
VX-200SZ-2 PA LINK VP-200VX/VP-3000 series PA LINK

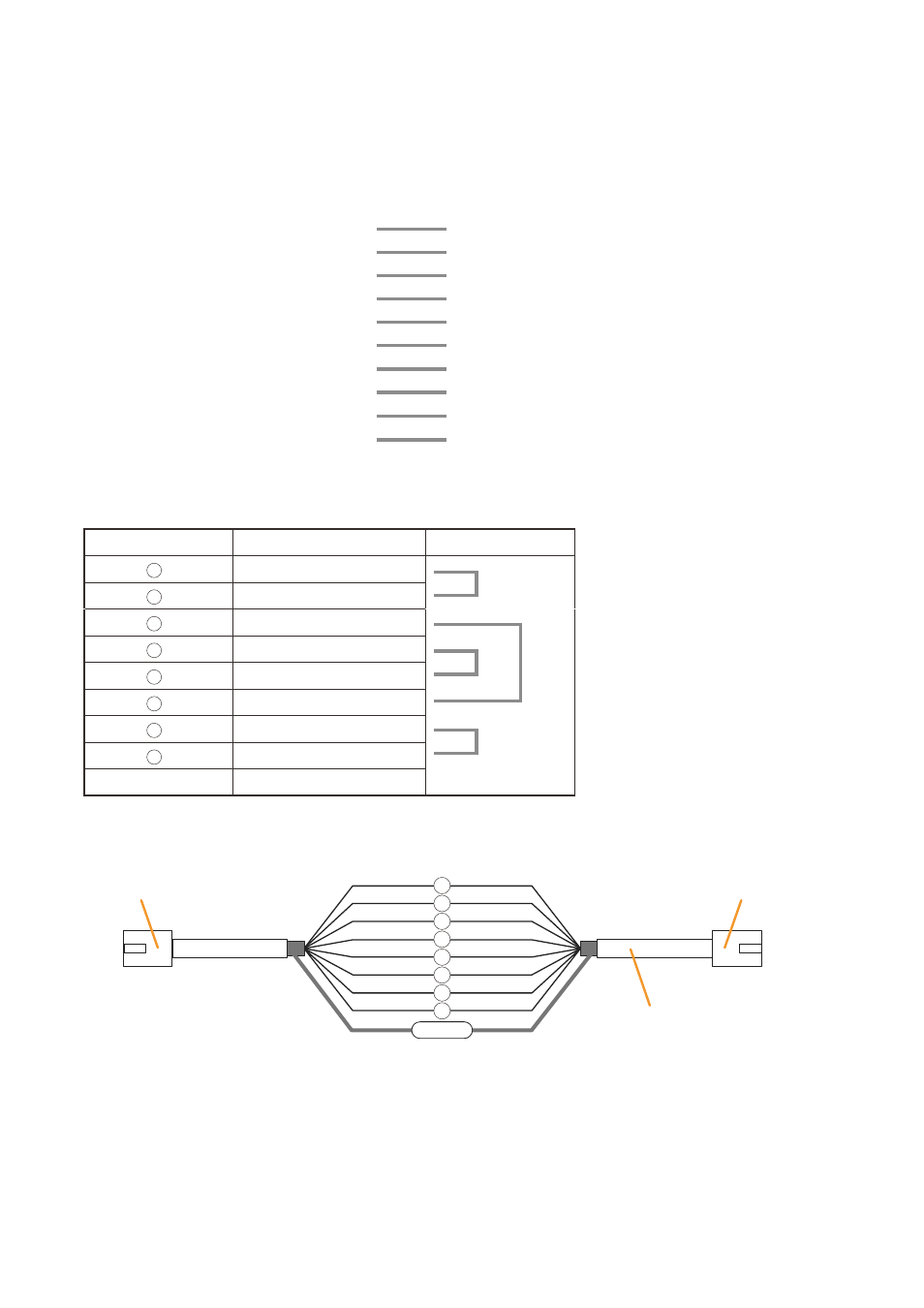

[rJ45 connector pin assignment]
RJ45 connector
Pin No.
RJ45 connector RJ45 connector
Cat. 5 STP cable
1
2
5
6
3
4
7
8
Shield
* Differs from cable makers. In wiring,
refer to the cable specifications for
colour.
1
2
3
4
5
6
7
8
RJ45 Pin No. Colour* Pair
Orange / white
Orange
Green / white
Blue
Blue / white
Green
Brown / white
Brown
Shield Shield
