2.2. D-2012C Remote Console Unit
The D-2012C is designed to be used with the D-2008SP Digital Mixing Processor. The D-2012C can be LAN-
connected to the D-2008SP Processor to allow remote operation of input and output channel volume
adjustment, signal level monitoring, contact control and preset memory recall, etc. The D-2012C is equipped
with line inputs and audio monitor bus terminal. A PC can be connected to perform such settings as selection
of channels for operation and assigning functions to the function keys, using the D-2000 setting software
supplied with the D-2008SP Processor. Up to 4 different fader layers can be set when assigning channels to
each motorized fader and rotary encoder, allowing an individual D-2012C unit to operate up to 80 channels in
monaural. More channels can be operated by performing settings for stereo link and grouping (refer to
p. 20
for details about the fader layer). It can be mounted in an EIA Standard component rack (6U* size). It can also
be used as a desktop unit in combination with the optional D-2012AS Console Case.
* 1U size = 44.5 mm (reference size)

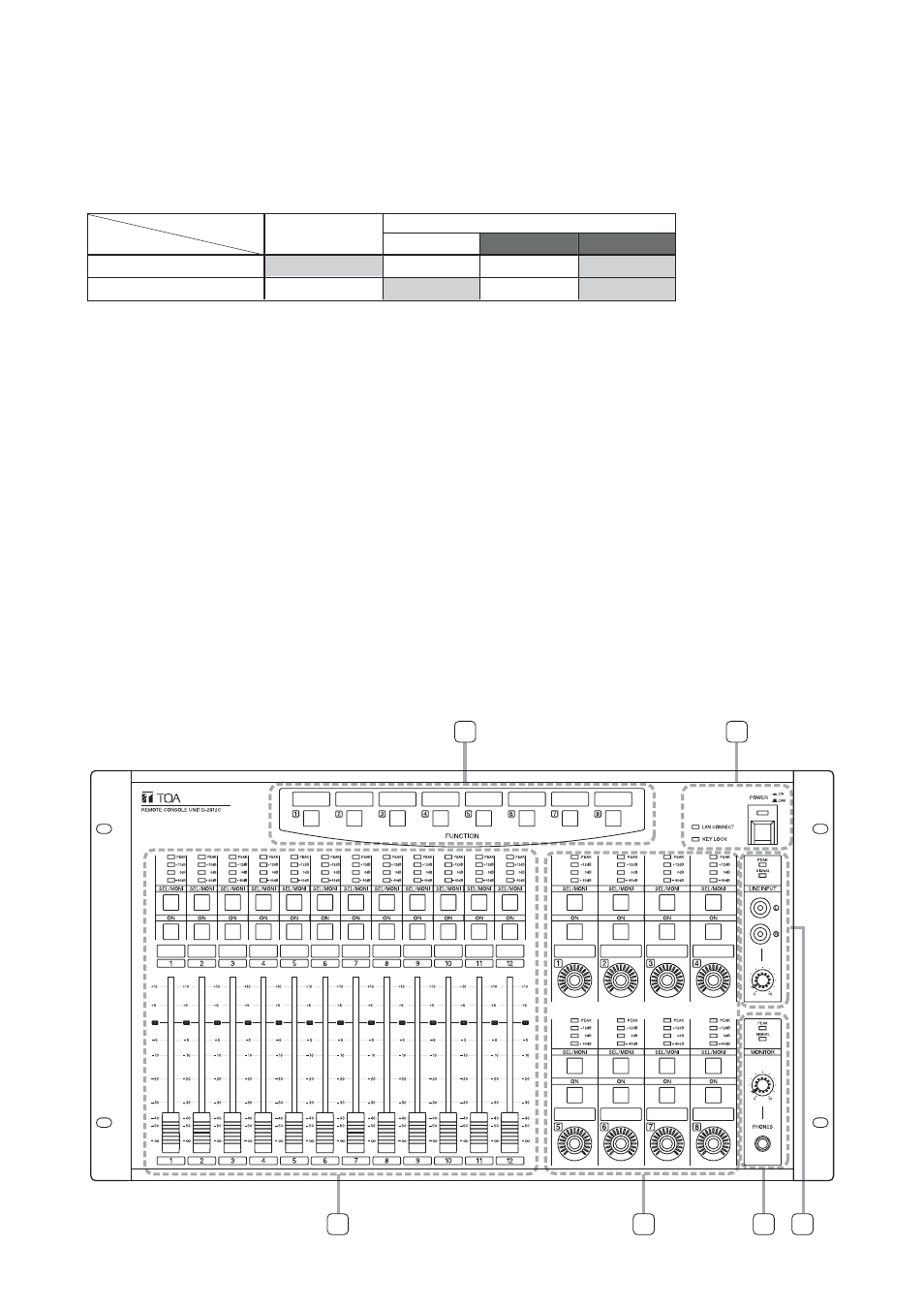

[Operation panel]
A B
C D E F
25. WORD CLOCK CobraNet indicator (Green)
Lights when the master of the internal word clock
gets synchronization from CobraNet.
26. WORD CLOCK EXTERNAL indicator (Green)
Lights when the master of the internal word clock
gets synchronization from the external word
clock generator connected to the rear panel's
word clock input.
• SYSTEM ERROR and SYSTEM RUN indicators vs. D-2008SP status
Note
If both indicators light or remain unlit after the unit activation is complete, cycle the power. If the situation does not change
after the unit power-up, the unit may break down. Contact your TOA dealer.
During activation
Normal state System error
After activation completion
SYSTEM ERROR
D-2008SP status
Indicator
SYSTEM RUN Lit Lit
Lit Lit
Fan error
Unlit Unlit
Unlit Unlit
