3.1.4. Selecting CobraNet's monitor channels
When the D-2000CB CobraNet Interface Module has been inserted into the D-2008SP and connected to other
CobraNet equipment, CobraNet's input and output channel preprogrammed using the D-2000 Setting
Software can be monitored.

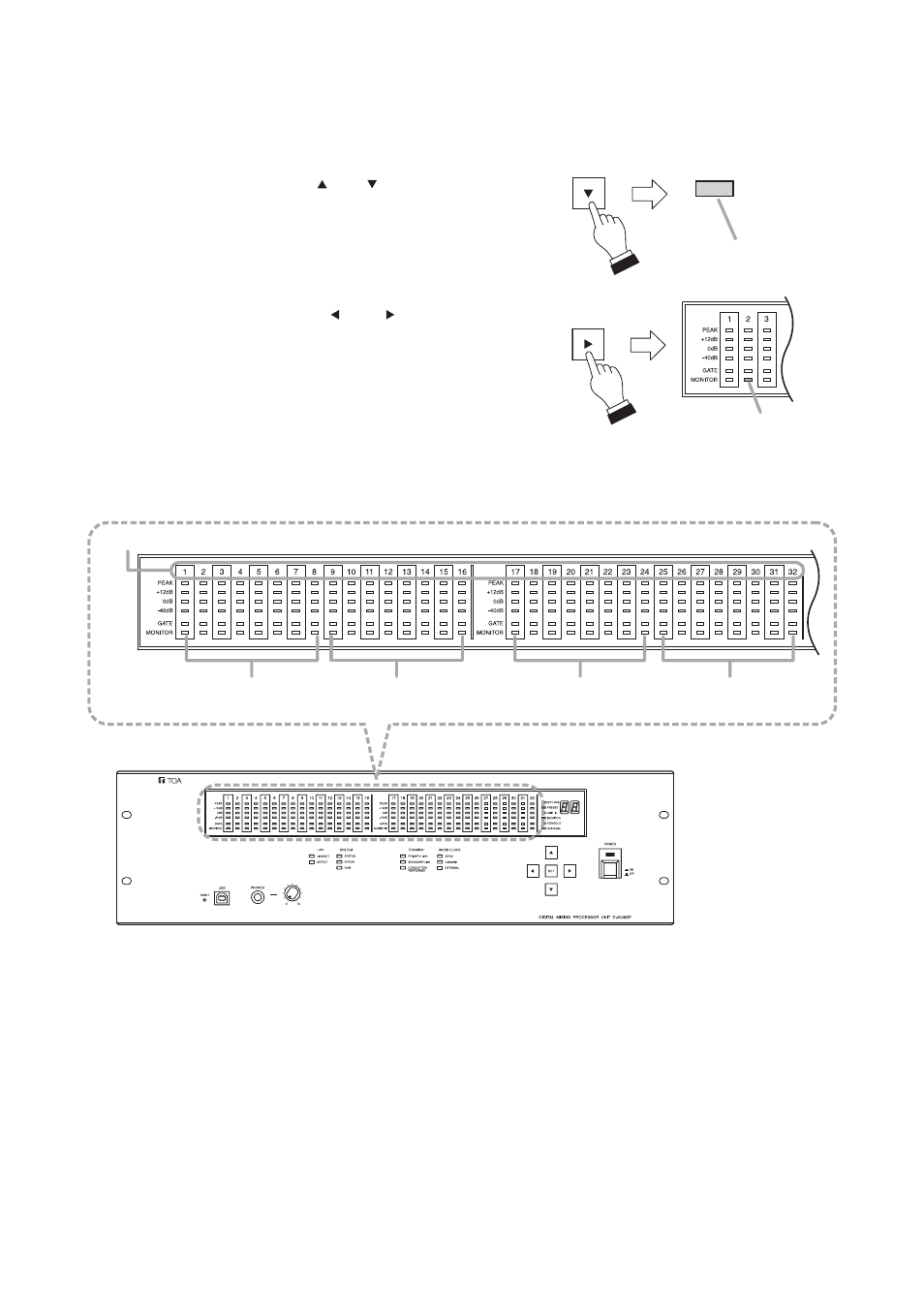

Step 1. Press the Selection key " " or “ " several times to light
"CobraNet" (Item selection indicator).
Step 2. Press the Selection key " " or " " to select monitor
number (1 – 32).
The monitor selection indicator of the selected number
lights.
Note: Idle channel is skipped.
Monitor numbers correspond as follows to the D-2008SP
input and output channels set in the D-2000 Setting
Software bundle settings:
Step 3. Connect headphones to the headphone jack, then adjust the sound volume with the headphone
volume control knob.
Lights
CobraNet
Lights
CobraNet input
and output
Monitor number
Input
(B channel 1 – 8)
Output
(A channel 1 – 8)
Output
(B channel 1 – 8)
D-2008SP
Input
(A channel 1 – 8)
