2.3. D-911 VCA Fader Unit
The D-911 VCA Fader Unit is designed for use with the D-2008SP.
Connecting to the D-984VC VCA Control Module installed in the D-2008SP permits volume adjustment of
input and output channels and contact controls of the D-2008SP. For details, refer to the instruction manual
enclosed with the D-911.

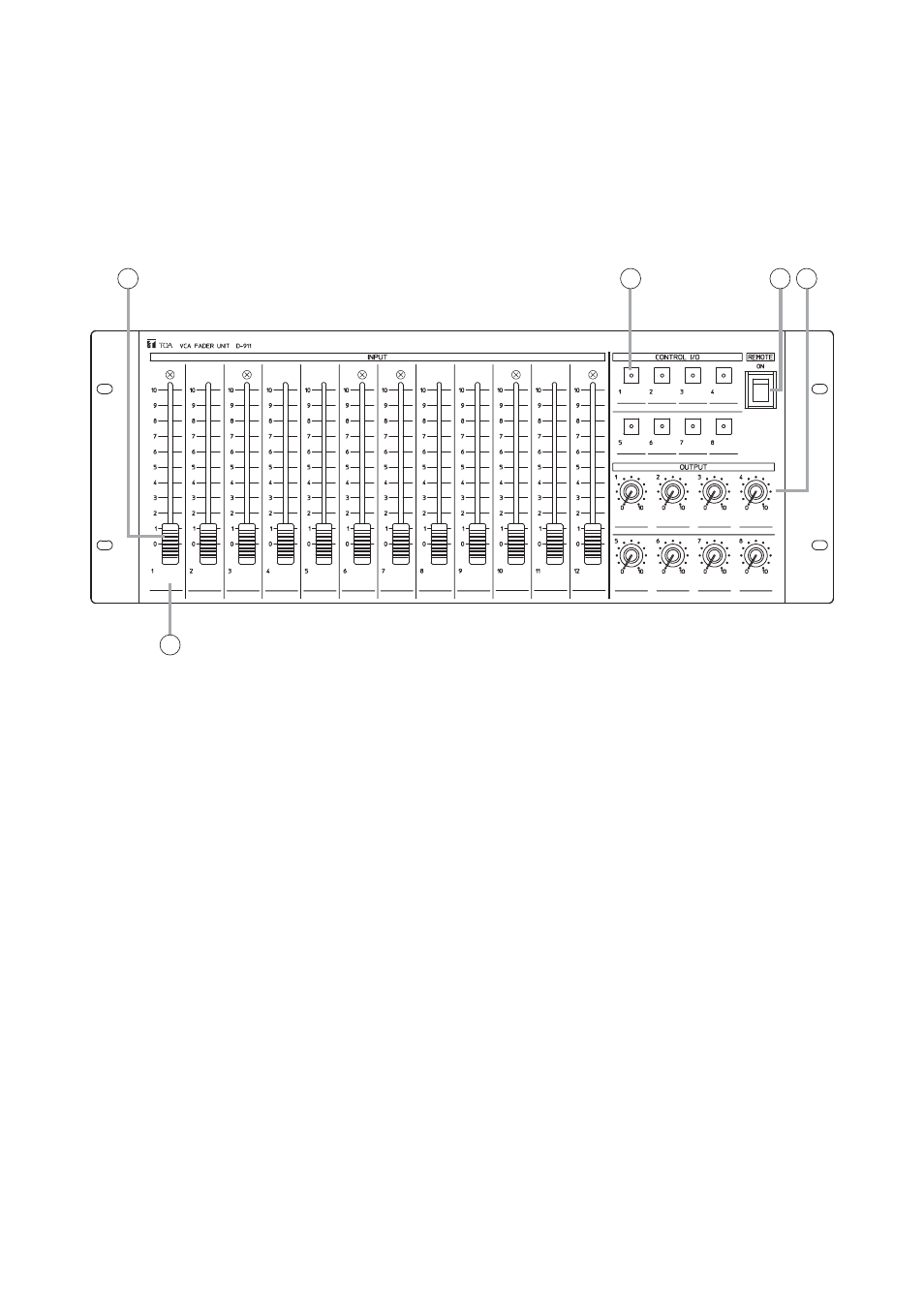

[Front]
1 2 3 4
5
1. Input fader
Adjusts the volume of each input equipment (i.e.
microphones and CD players). Fader position "0"
provides the minimum volume, and position "10"
the maximum volume.
Assign the channel to be operated using the D-
2000 Setting Software. It is also possible to
assign the channel as output fader.
2. Control key
Recalls preset memories or controls the contact.
Lights when the preset memory is recalled or the
contact is turned on.
Assign the contact functions using the D-2000
Setting Software.
3. Remote (Activation) switch
Setting this switch to the ON position closes the
remote (activation) output terminals (6) on the
rear panel, and setting this switch to the opposite
side opens the output terminals.
4. Output volume control knob
Adjusts the output volume. Position "0" provides
the minimum volume, and position "10" the
maximum volume.
Assign the channel to be operated using the D-
2000 Setting Software.
It is also possible to assign the knob as input
volume control knob.
5. Write-in space
Used to fill in input/output name, preset memory
contents, or other notes for convenience of
operation.
