3.2.6. Fader layer switching
There are 12 motorized faders and 8 rotary encoders on the D-2012C's operation panel. Store a combination
of their channel assignments as a single fader layer in advance using the D-2000 Setting Software. Since 4
different fader layers can be set, up to 4 channels can be assigned to each motorized fader and rotary
encoder. By switching the channel assignment status using the Fader Layer key, up to 80 channels can be
operated in monaural per D-2012C Console. If stereo link and grouping settings are performed, more
channels can be operated.

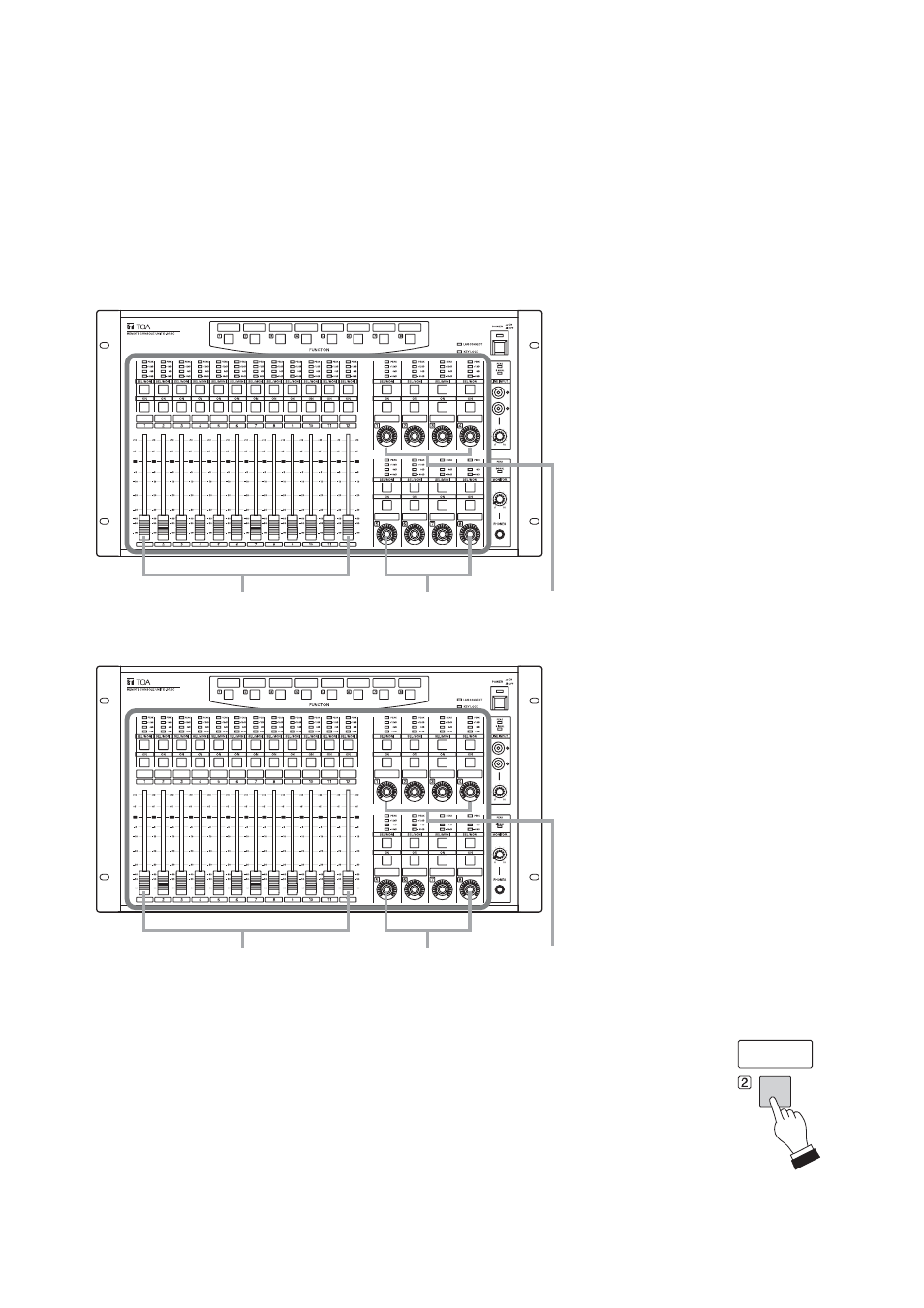

[Fader Layer Setting Example]
(Fader layer 1 setting status: Inputs 1 – 12 & outputs 1 – 8)
D-2012C
(Fader layer 2 setting status: Inputs 13 – 24 & outputs 9 – 16)
D-2012C
In 1 – 12 Out 5 – 8 Out 1 – 4
In 13 – 24 Out 13 – 16 Out 9 – 12
Tip
Bus channels and CobraNet
channels can also be assigned.
Lights
Fader Layer 2
[Fader Layer Switching]
Pressing the Fader Layer key switches the operation panel settings to the status stored in
the designated fader layer number. In this event, the depressed key lights.
Notes
• Even if the fader layer number switches, the preset memory number remains
unchanged.
• The figure shows an example in which "Fader Layer 2" has been assigned to Function
key 2.
