3.2. D-2012C Operation
3.2.1. Key-assignable functions
The following functions can be assigned to the D-2012C's function keys. The function keys are explained on
the following pages using the name of the function assigned to each key (example: Memory key).
Note
To implement the following functions (except Stereo Input) with the function key operation, the D-2008SP with
ID1 must be included in the system.
• Memory
Recalls the setting status stored in preset memory. The D-2012C's current setting status can be stored in
preset memory by pressing the function key assigned to the memory function in combination with the
function key assigned to the memory storage function. (Refer to
p. 18 .)
• Memory Store
Press the key assigned to the memory store function in combination with the function key assigned to the
memory function. (Refer to
p. 18 .)
• Line Input (valid only when the D-936R or D-937SP module is installed)
Switches the line (stereo) input of the D-936R Stereo Input Module or D-937SP Digital Input Module.
(Refer to
p. 19 .)
• LED Control
Causes the D-2008SP's front panel-mounted level indicator to go out. (Refer to p. 19 .)
• Fader Layer
Recalls the channel assignment status stored in the fader layer. (Refer to p. 20 .)
• Console Switch
Sets the contact output of the D-981 or D-983 Remote Control Module or the D-984VC VCA Control
Module installed in the D-2008SP processor to ON. (Refer to
p. 21 .)
• Key Lock
Enables and disables manual operation of the D-2012C's motorized faders, function keys, rotary
encoders, etc. (Refer to
p. 22 .)
• Monitor Clear
Clears the selection of channels to be monitored. (Refer to p. 23 .)
• External Control Switch
Allows the D-2008SP with ID 1 to transmit the function key ON/OFF data to an AMX or other external
control devices using external control protocol. The external control device can transmit the external
control command to the D-2008SP with ID 1, controlling its function key's indicator ON or OFF.
(Refer to
p. 21 .)
Note
Functions shown in the following figure are assigned by default. To change these assignments, use the D-
2000 Setting Software supplied with the D-2008SP processor. For details, please read the separate software
setting manual.

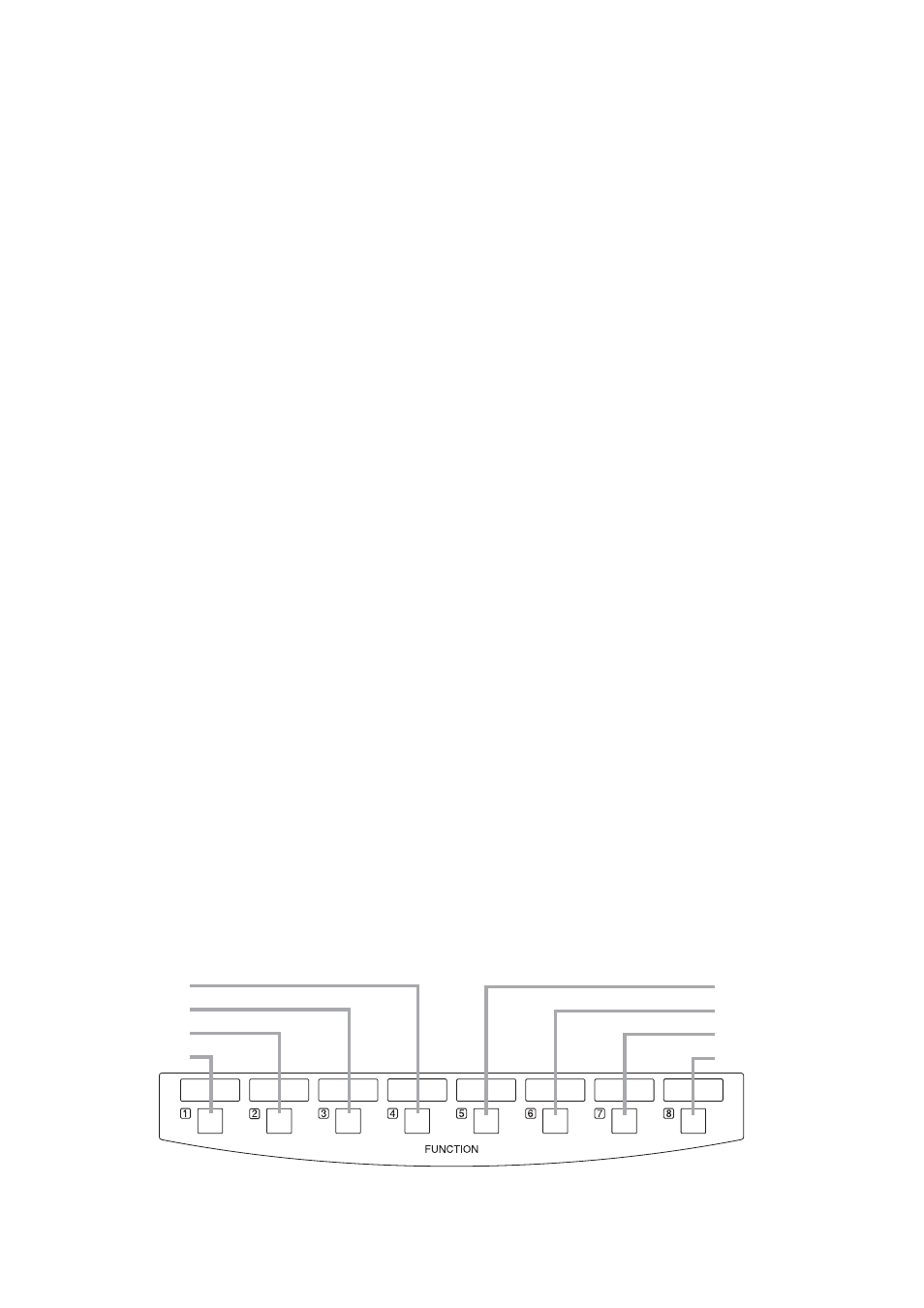

[Default Setting]
D-2012C function key section
Memory 5
Memory 6
Memory store
Key lock
Memory 4
Memory 3
Memory 2
Memory 1
