Toa M-9000M2 v.2.00 User Manual
Page 118
118

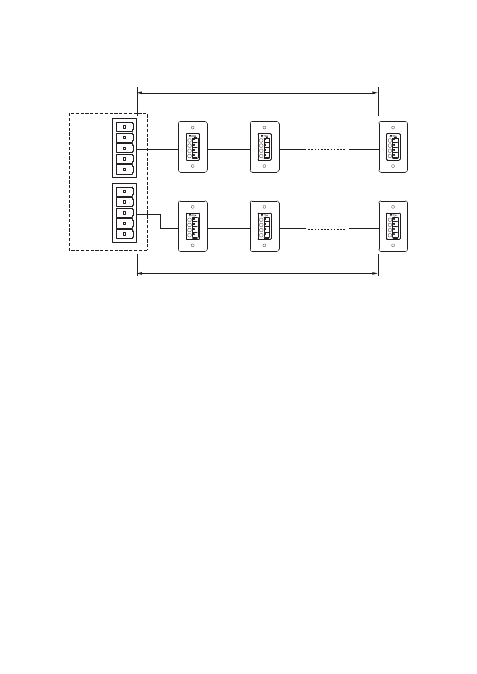

Example 3: When each cable for LINK A and LINK B is extended up to 400 m or 440 yd (800 m or 875 yd in
total), 12 panels can be connected irrespective of the distance between RC-001T and panels,
and between panels.
LINK A
LINK B
RC-001T
400 m (440 yd) max.
400 m (440 yd) max.
Remote control
panel (1)
(2)
(6)
(8)
(7)
(12)
Notes
• In the daisy-chain connection, the cable distance for each LINK A and LINK B should be within 400 m (440
yd).
If extended beyond 400 m (440 yd), the Remote control panels may not operate.
• Do not mix the star connection with daisy-chain connection. Mixing both connection configurations may
cause the Remote control panels to malfunction.
