When the zm-9001 or zm-9002 is connected, When the zm-9003 is connected, When the ss-9001 is connected – Toa M-9000M2 v.2.00 User Manual
Page 111
111
Note
One ZM-9001 or one ZM-9002 can
be connected to each of the REMT
VOL1 and 2 terminals.

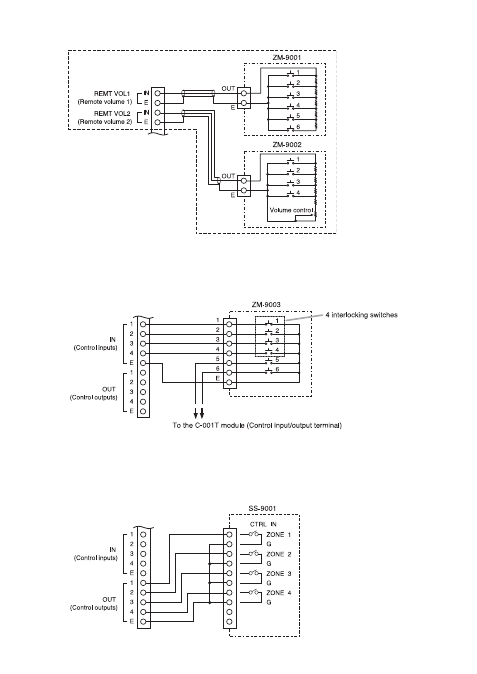

14.1.2. When the ZM-9001 or ZM-9002 is connected
14.1.3. When the ZM-9003 is connected
Output terminal Nos. 1 – 4 of the ZM-9003 are internally connected to the interlocking switches and Nos. 5
and 6 to the momentary switches.
Connect these terminals to the Control input terminals of the main unit or C-001T depending on applications.
14.1.4. When the SS-9001 is connected
The control input terminals of SS-9001 are polarized non-voltage contact inputs.
When the control output terminals of M-9000M2 are closed, the corresponding internal relays of the SS-9001
are activated.
Make necessary connections depending on applications.
