Tie Down Outdoor Entertainment Center - Manual (Page 4)

1
9
8
3
4
3
2
Bottom Screw
Mount
Horizontal
Support Tube
11
10

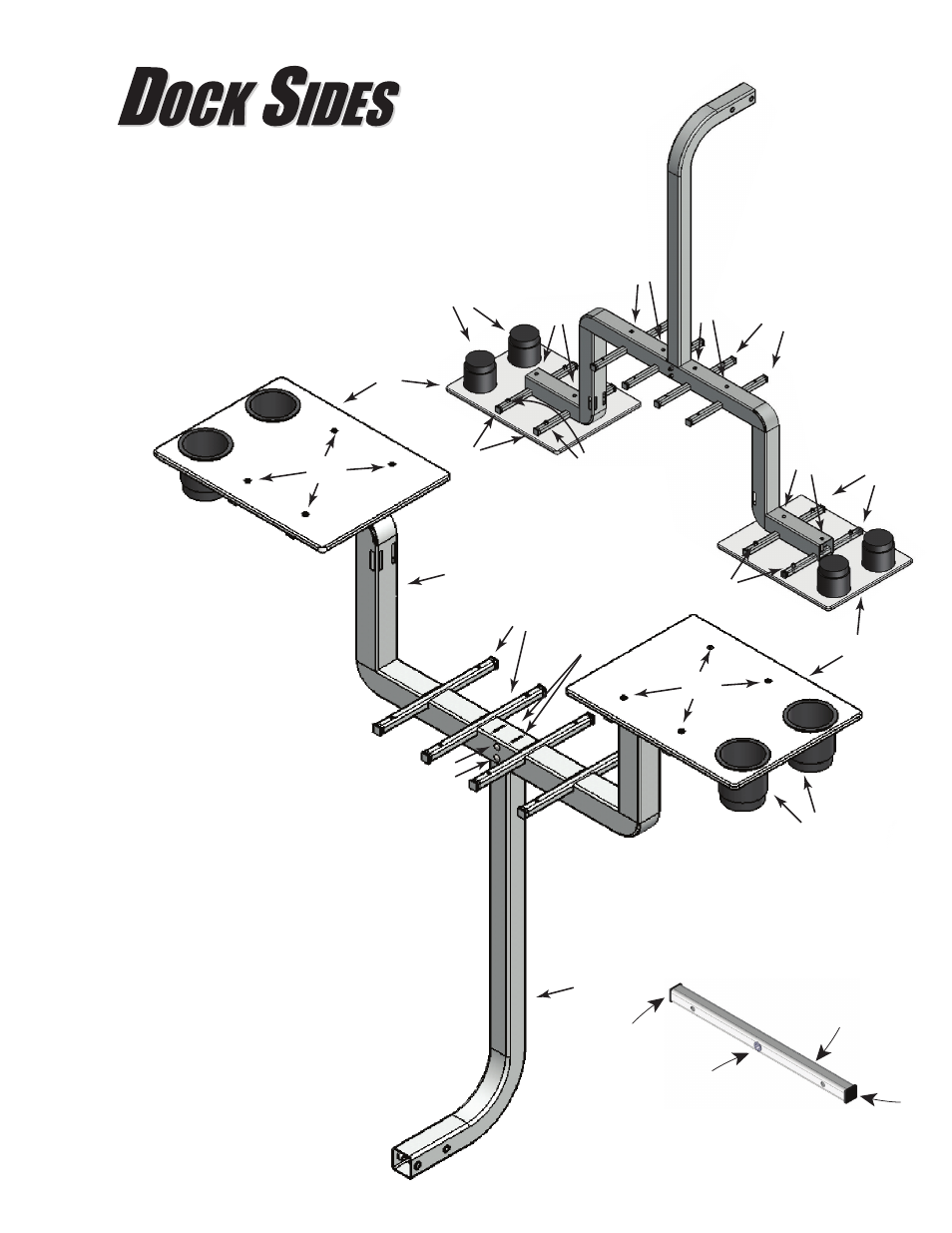

Full Parts Descriptions
# Description
1 Support Tube
2 Top Frame Tube
3 Horizontal Support Tube
4 Side Table
5 Cup Holder
6 1/4"x2" Pan Head
Machine Screw, Zinc
7 1/4"x1.75" Flat Head
Machine Screw, Zinc
8 1/4" Nyloc Nut
9 1/4"x2.75" Square Neck
Carriage Bolt, Zinc
10 .75" Sq. Tube Plug
11 Cinch Strap (not shown)
Outdoor Entertainment Center
GalvX #86908 / Galvanized #86926
8
8 3
6
6
6
6
3
5
7
7
5
4
