Eye bolts secure the receiver to the mounting base.
Once the holes are aliened hand tighten all eye bolts.
1
Installation Instructions:
1. Slide base of accessory tube into receiver until threaded holes align with holes in receiver.
2. Slide eye bolts through receiver side holes and screw into threaded holes in accessory base. Hand tighten all
eye bolts and then use screw driver shaft to tighten one half turn.
Top Tube Frame (2)
~ Looking Down the tube
Slots
Cinch Strap (11)
Slots

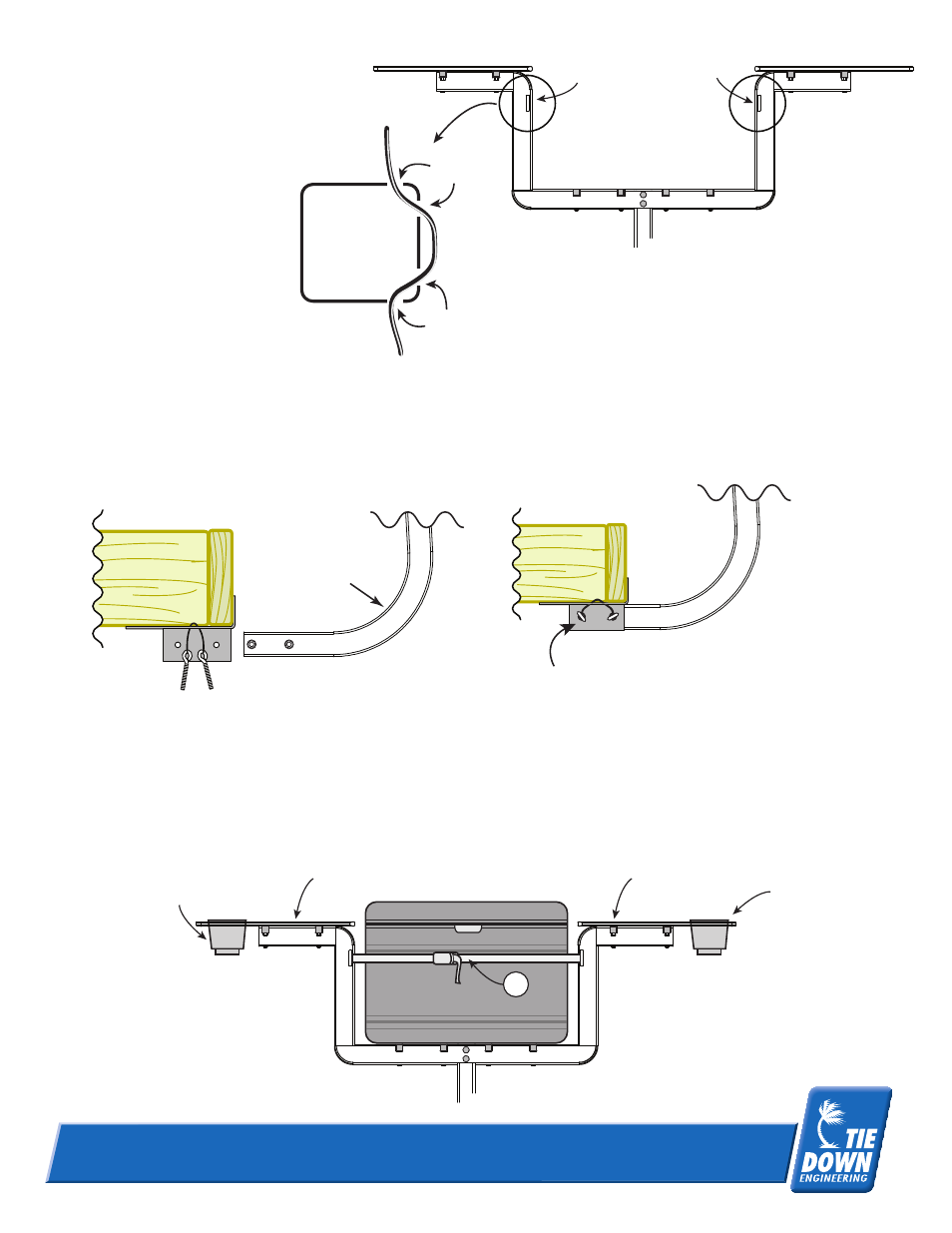

4. Thread Cinch Strap (11) into slots
in top frame tube as shown.
Cinch Strap Slots
5
4
5
4
3. Once the completed Entertainment Center is secured to the receiver:
A. Place the Cup Holders (5) into the holes on each side table (4)
B. Place and position your ice cooler centered on the Horizontal Support Tubes (3).
C. Secure the ice cooler with the Cinch Strap (12)
12
